Sea Water Pumps With SS304 Impeller

HOT PRODUCTS

End Suction Centrifugal Water Pumps

(u can click each pictures to get more pumps information!)

1. Air Conditioning           2. Fire Protection         3. Plumbing
4.Circulating                    5.Transfer                   6.Sea Water Treatment
7. Pressure Boosting        8.Cooling Towers         9.Irrigation

10. Water Treatment & Supply     11.Chemical

2.Specifications For  Pump

Pump Type: End Suction Centrifugal Water Pumps

Suction: 50-300mm
Flow rate: 6.3-1080 m3/h
Head: 5-150m

Speed:  1450r/min~ 3500 rpm

Suction ability :  wet primining , vacumm system assisted

Max working pressure : 2.5 Mpa

Working temperature : - 10 °c ~  105°c

Power :  Diesel engine or electric motor

Trailer : two wheel or four wheel

Silenbox canpoy : available

Standard : DIN 24255 ; BS EN733 or  ISO

 Part Material

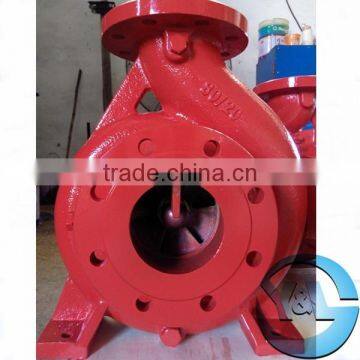

3.Pump Images

4.The pump + Electric Motor

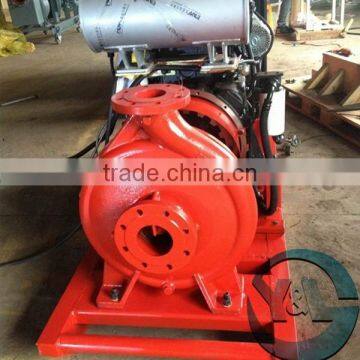

 5.The Pump +Diesel Engine

Diesel Engine Pump (with vacuum assisted sysytem)

Diesel Engine: Cummins, deutz, perkins, lister peter, ricardo, Chinese etc brands engine according to customers' requirements or we recommend

Engine Type:  air cooled or water cooled engine

Connection way for pump with engine: pin coupling (hard to hard),high elastic coupling (avoid vibration, can protect the pump set)

Installation: diretly coupling engine mounted, horizontal V-belt  type installation, vertical type



6.Testing

Pre-sale
Good pre-sale service is an important guarantee to the customer interest. our professional senior service engineer to provide customers with design plans and consultant, which avoids the unnecessary loss caused by improper operation of customers to the largest extent.
In-sale
Our highly professional service staff continuously provides tracking service,  giving instruction to installation, explicating the operation main points and cautions in order to ensure the efficient operation of the product and reduce the breakdowns caused by improper operation of customers to the largest extent.
After-sale
We will check the customers' usage of pump regular positively in order to correct the improper operation of customers in time, carry through the guidance of maintenance in time.
