6-inch Centrifugal Water Pump

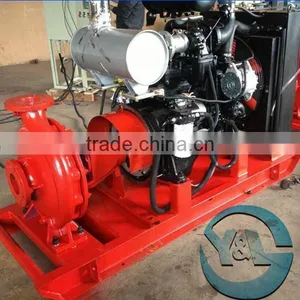

6-inch Centrifugal Water Pump thumbnail-1
6-inch Centrifugal Water Pump thumbnail-2
6-inch Centrifugal Water Pump photo-1

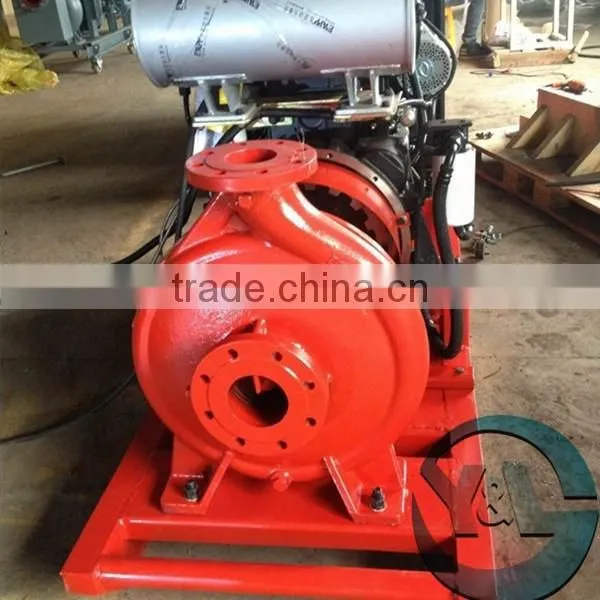

6-inch Centrifugal Water Pump photo-2
US$ 980 - 9,980 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Y&L
Model Number:
DA
Contact Supplier Request Quote Chat Now
Shanghai Y&L Pump Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Y&L
Model Number DA
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Diesel
Pressure High Pressure
Application Other, Irrigation, Fire, Dewatering, Booster, etc

6-inch centrifugal water pump

Product Description

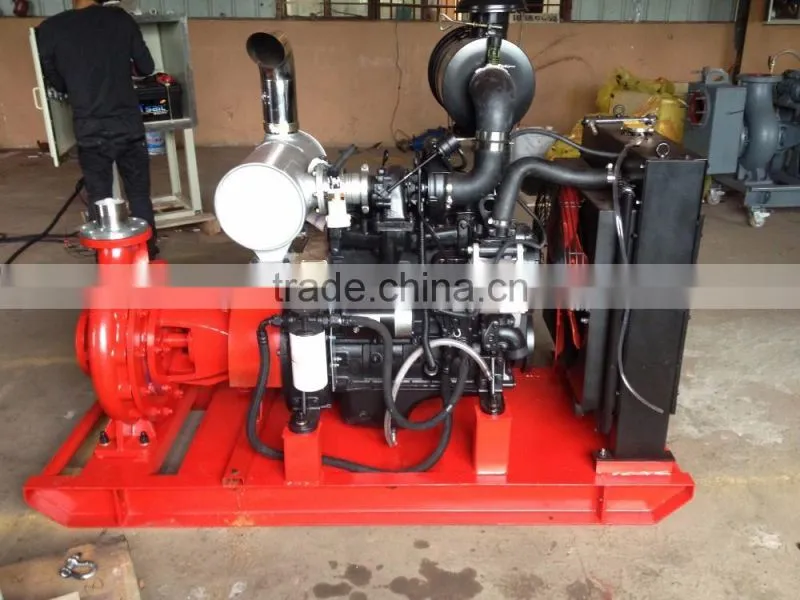

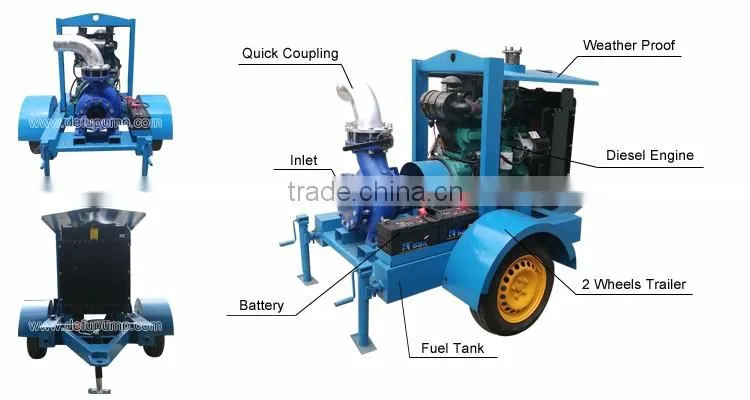

1. Pictures of our water pump

6-inch centrifugal water pump6-inch centrifugal water pump



2. Brief Introduction

DA is used for handing clear water or the liquids similar to the water physically and chemically finding the applications for water feed and supply service in mine, plants and towns, air -conditioning, extinguishing and irrigation.

In spite of the same specification, the pump’s performances vary with the diameter of the impeller. (Indicated with the block letters A, B and C in the type.)

The pump is simple in structure, reliable in performances, small in size, low in power consumption, convenient in maintenance of good cavitation proof.

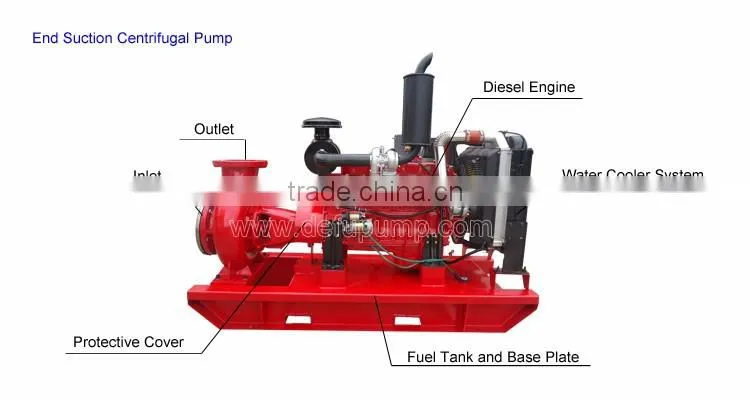

3. Structure

6-inch centrifugal water pump

Specification Table

Specifications
Speed 2900 r/min 1450 r/min or 1480 r/min
Max. Capacity 132 l/s (475.2 m3/h) 300 l/s (1080 m3/h)
Max. Head 150m 55m
Max. Speed  3500 r/min (When using the power of 60hz, the diameter of impeller will be reduced)
Max. Working Temperature 105 ºC
Shaft Seal Packing or Mechanical Seal



DA Model Capacity Head Speed Power Efficiency Impeller Dia.
Shaft  Motor
m3/h m r/min kw kw % mm
DA150/20 216.0  14.1 1450 13.37  18.5 62 214
360.0  12.2 14.95  18.5 80
432.0  10.6 16.51  18.5 75.5
DA150/26 194.4  23.1 1450 16.98  22 72 264
324.0  21.0 22.73  30 81.5
388.8  17.9 25.26  30 75
DA150/32 222.0  36.0 1450 29.80  37 73 329
370.0  34.0 40.53  55 84.5
444.0  31.2 45.16  55 83.5
DA150/40 231.0  54.5 1450 51.15  75 67 409
385.0  49.5 63.65  75 81.5
462.0  43.9 70.78  90 78
DA150/50 289.4  98.0 1450 115.25  132 67 525
482.4  93.8 156.91  200 78.5
578.9  89.5 178.53  200 79
DA150/20 104.0  182.1 1750 83.14  30 62 214
124.8  165.3 70.21  30 80
59.4  183.5 39.33  30 75.5
DA150/26 120.7  29.9 1750 13.63  37 72 264
144.8  25.1 12.12  45 81.5
67.7  30.0 7.38  55 75
DA150/32 100.6  32.3 1750 12.13  75 73 329
120.7  26.5 10.31  90 84.5
56.2  35.2 6.46  90 83.5

(More Model, Please contact me)

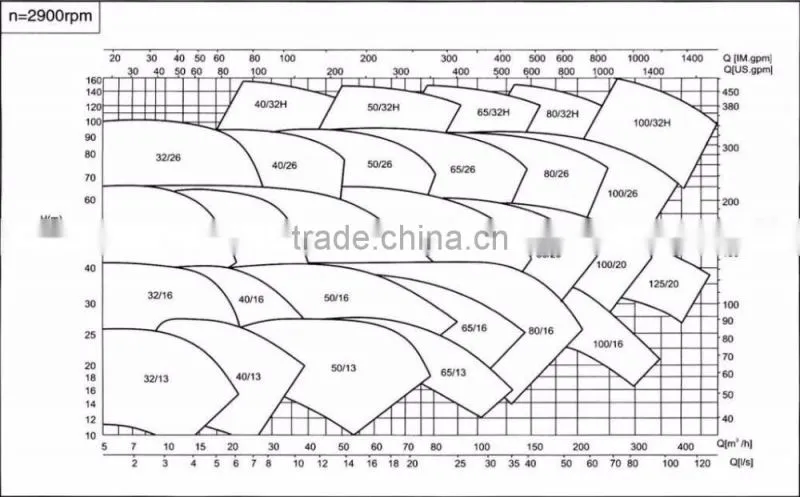

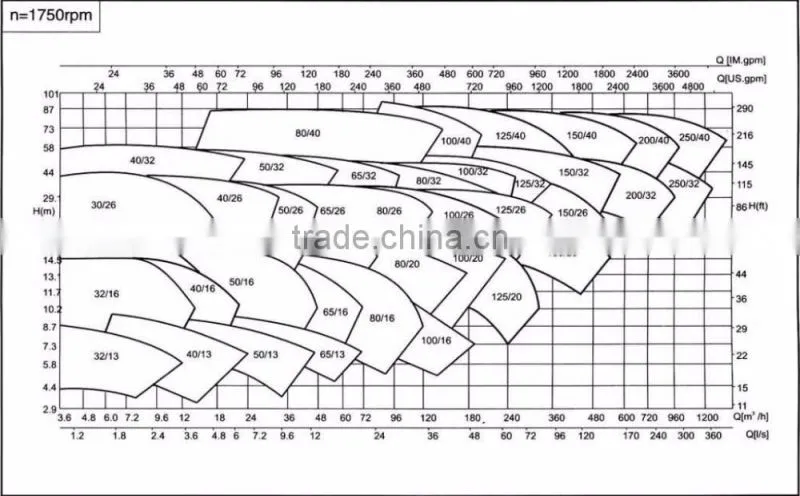

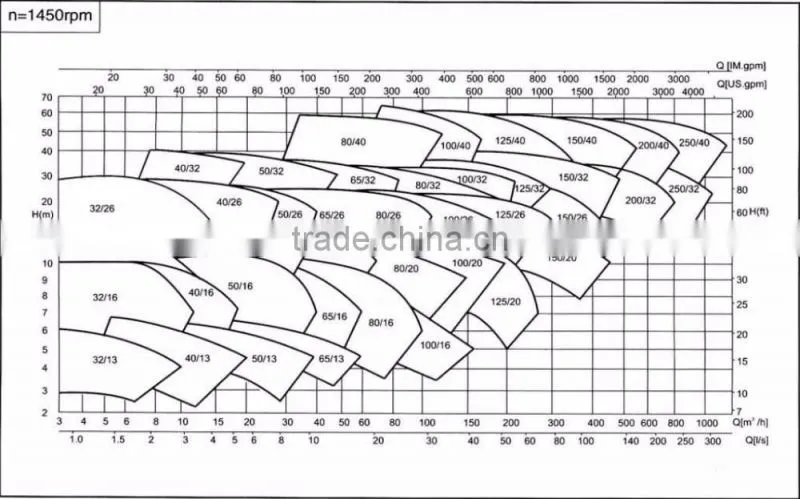

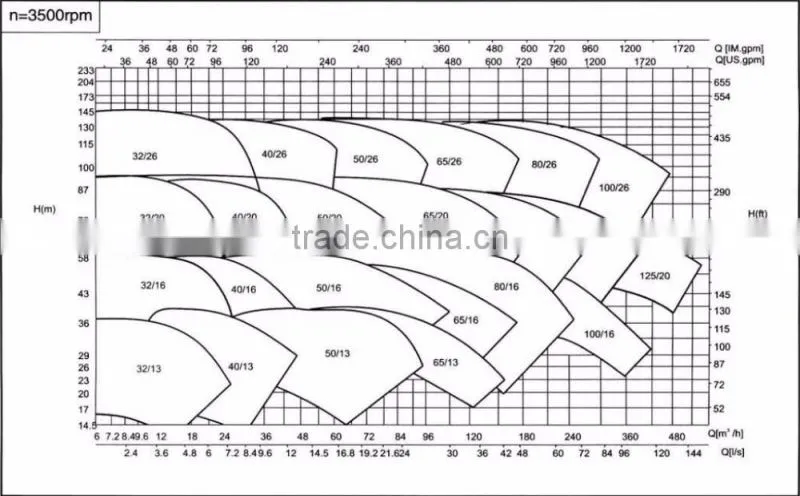

Performance Curve

6-inch centrifugal water pump6-inch centrifugal water pump6-inch centrifugal water pump6-inch centrifugal water pump

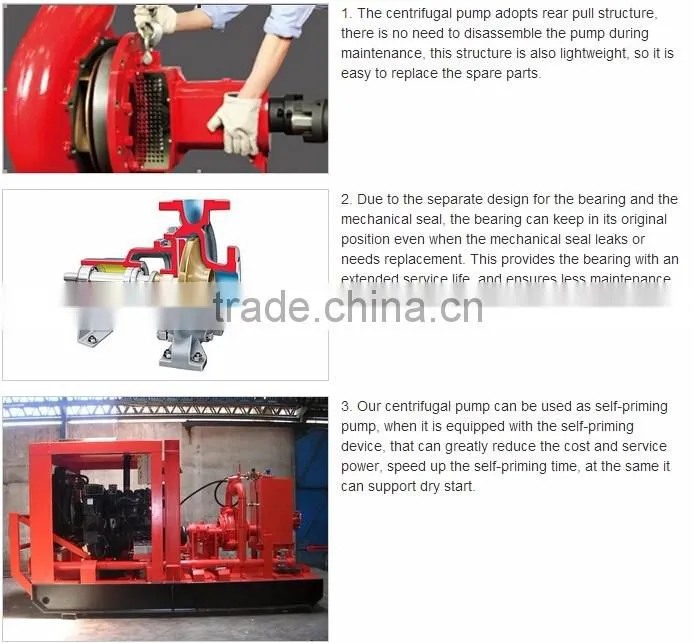

Features

6-inch centrifugal water pump

Application

1. Air Conditioning                      2. Fire Protection                         3. Plumbing

4. Circulating                               5.Transfer                                     6. Sea Water Treatment

7. Pressure Boosting                     8. Cooling Towers                        9. Irrigation
10. Water Treatment & Supply      11.Chemical

 6-inch centrifugal water pump

Related Products

6-inch centrifugal water pump

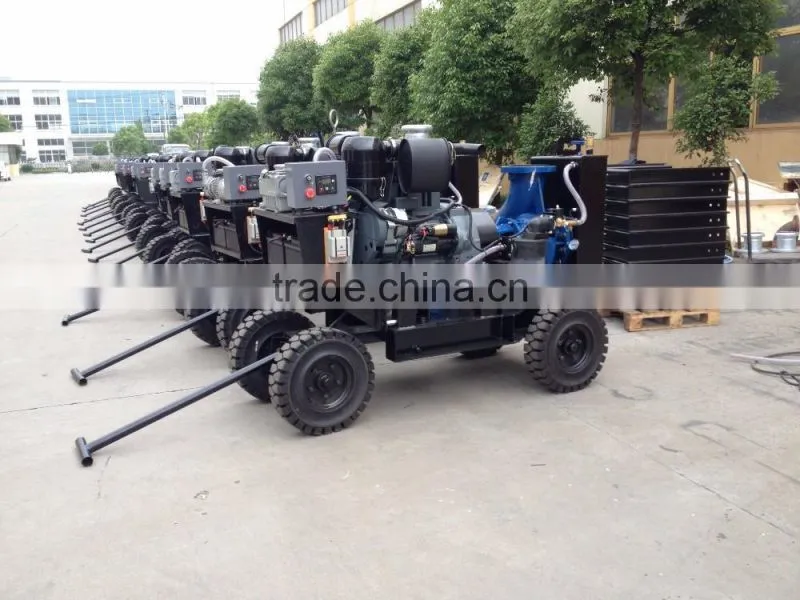

Pump with 2 wheels trailer
