Diesel Engine Marine Sea Water Pump
US$ 3,580 - 13,650
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Y&L
Model Number:
DA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Pump 30hp With Diesel EngineUS$ 1 - 100,000MOQ: 1 Set -
Water Pump 35hp With Diesel EngineUS$ 1 - 100,000MOQ: 1 Set
-
Water Pump 90hp With Diesel EngineUS$ 1 - 100,000MOQ: 1 Set
-
Water Pump 75hp With Diesel EngineUS$ 850 - 18,950MOQ: 1 Set
-
Closed Impeller Mechanical Seal Centrifugal PumpUS$ 1 - 100,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
Y&L
Model Number
DA
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
High Pressure
Application
Other, Marine (Sea water)
Diesel Engine Marine Sea Water Pump
Product Description

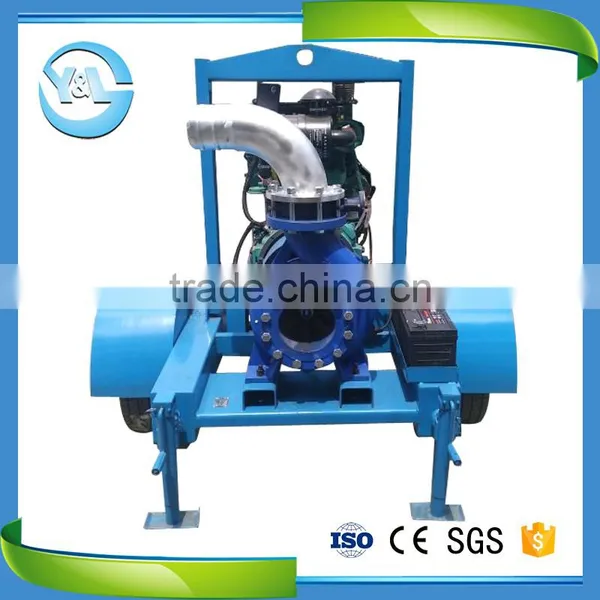

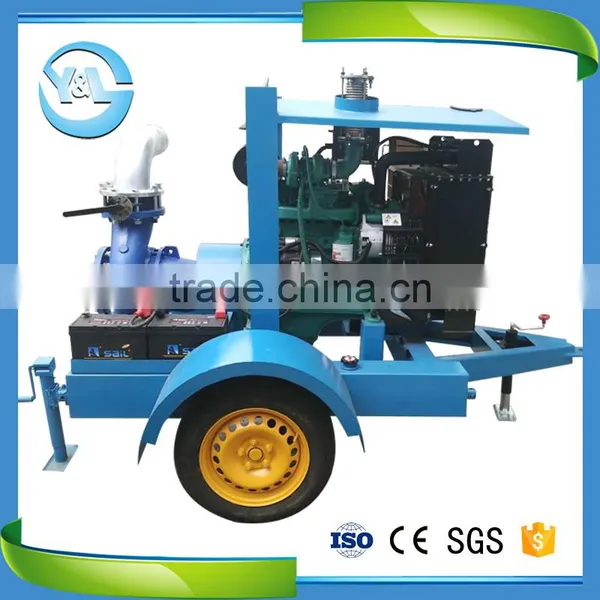

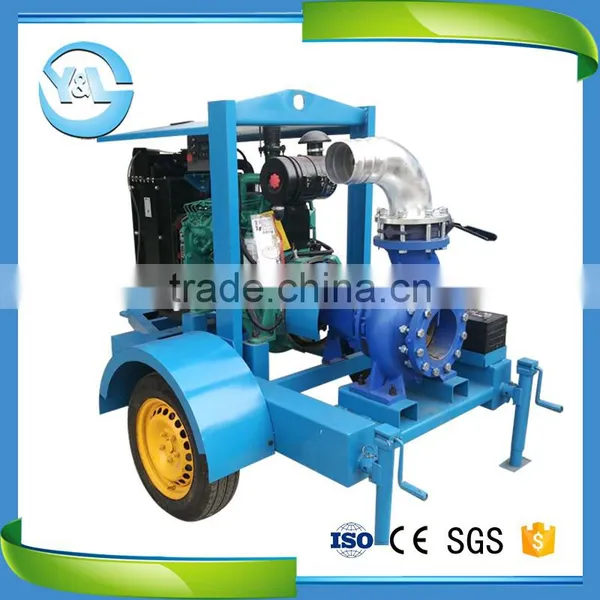

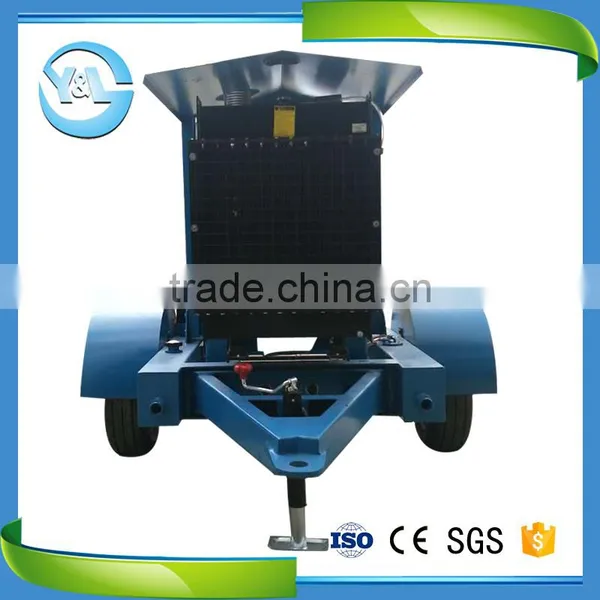

1. Pictures of Diesel Engine Marine Sea Water Pump
2. Specification of our diesel water pump
DA Model |
Capacity | Head | Speed | Power | Impeller Dia. | |
| Shaft | Motor | |||||
| m3/h | m | r/min | kw | kw | mm | |
| DA32/26 | 16.2 | 89.3 | 2900 | 11.76 | 15 | 264 |
| 27.0 | 82.0 | 14.52 | 18.5 | |||
| 32.4 | 75.3 | 16.28 | 18.5 | |||
| DA40/26 | 21.6 | 93.0 | 2900 | 13.67 | 15 | 264 |
| 36.0 | 86.5 | 16.62 | 18.5 | |||
| 43.2 | 81.5 | 18.08 | 22 | |||
| DA50/20 | 36.0 | 62.0 | 2900 | 10.48 | 15 | 214 |
| 60.0 | 56.0 | 13.07 | 15 | |||
| 72.0 | 51.0 | 14.70 | 18.5 | |||
| DA65/26 | 72.0 | 98.0 | 2900 | 30.49 | 37 | 264 |
| 120.0 | 89.9 | 39.95 | 45 | |||
| 144.0 | 82.3 | 45.12 | 55 | |||
| DA80/26 | 114.0 | 95.0 | 2900 | 45.01 | 55 | 264 |
| 190.0 | 83.5 | 57.59 | 75 | |||
| 228.0 | 74.0 | 63.79 | 75 | |||
| DA100/20 | 171.0 | 58.7 | 2900 | 39.04 | 45 | 214 |
| 285.0 | 50.1 | 48.59 | 55 | |||
| 342.0 | 42.0 | 52.49 | 75 | |||
| DA125/20 | 216.0 | 56.5 | 2900 | 55.84 | 75 | 214 |
| 360.0 | 49.0 | 64.89 | 90 | |||
| 432.0 | 42.5 | 68.94 | 90 | |||
| DA32/26 | 6.6 | 23.7 | 1450 | 1.42 | 2.2 | 264 |
| 11.0 | 22.4 | 1.76 | 2.2 | |||
| 13.2 | 21.4 | 1.92 | 3 | |||
| DA40/32 | 10.8 | 37.5 | 1450 | 3.56 | 5.5 | 329 |
| 18.0 | 35.6 | 4.36 | 5.5 | |||
| 21.6 | 33.8 | 4.73 | 5.5 | |||
| DA50/32 | 30.2 | 35.6 | 1450 | 5.64 | 7.5 | 329 |
| 50.4 | 31.1 | 7.36 | 11 | |||
| 60.5 | 27.8 | 8.32 | 11 | |||
| DA65/32 | 39.0 | 37.0 | 1450 | 7.28 | 11 | 329 |
| 65.0 | 34.0 | 9.40 | 11 | |||
| 78.0 | 31.7 | 10.36 | 15 | |||
| DA80/40 | 60.0 | 56.5 | 1450 | 17.92 | 22 | 409 |
| 100.0 | 52.2 | 23.11 | 30 | |||
| 120.0 | 47.8 | 25.52 | 30 | |||
| DA100/40 | 90.7 | 56.8 | 1450 | 22.62 | 30 | 409 |
| 151.2 | 51.8 | 30.03 | 37 | |||
| 181.4 | 47.0 | 34.39 | 45 | |||
| DA125/50 | 172.8 | 95.1 | 1450 | 75.82 | 90 | 525 |
| 288.0 | 93.8 | 103.58 | 132 | |||
| 345.6 | 91.0 | 118.09 | 160 | |||
| DA150/50 | 289.4 | 98.0 | 1450 | 115.25 | 132 | 525 |
| 482.4 | 93.8 | 156.91 | 200 | |||
| 578.9 | 89.5 | 178.53 | 200 | |||
| DA200/50 | 414.7 | 88.5 | 1450 | 153.71 | 200 | 525 |
| 691.2 | 84.0 | 195.13 | 250 | |||
| 829.4 | 80.2 | 219.50 | 250 | |||
| DA250/50 | 587.5 | 87.5 | 1450 | 199.92 | 250 | 525 |
| 979.2 | 81.5 | 260.18 | 315 | |||
| 1175.0 | 75.5 | 284.12 | 315 | |||
| DA300/40 | 702.0 | 49.5 | 1450 | 137.09 | 160 | 409 |
| 1170.0 | 40.8 | 149.37 | 200 | |||
| 1404.0 | 38.7 | 170.01 | 200 | |||

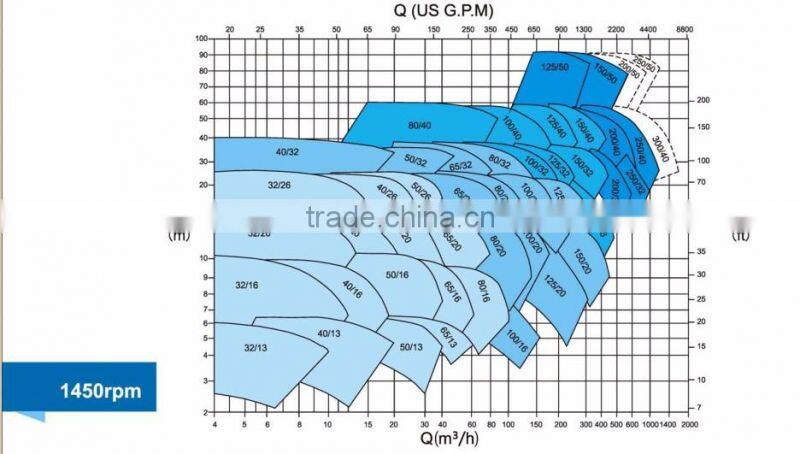

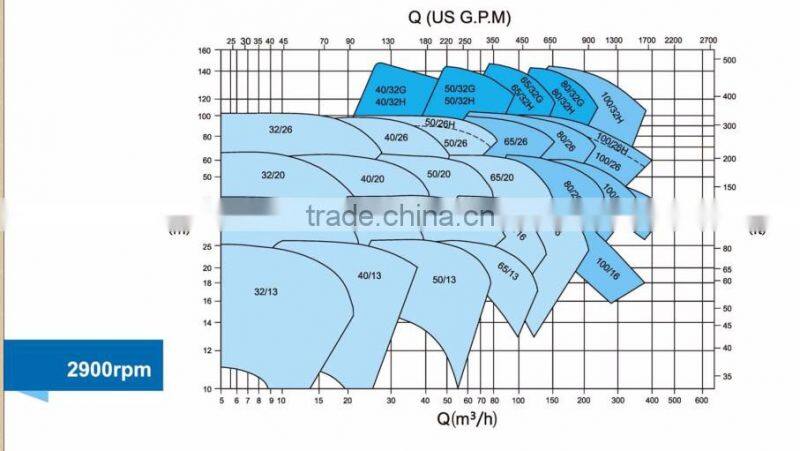

3. Performance curve
(Here is for 50hz, 60hz please contact me)

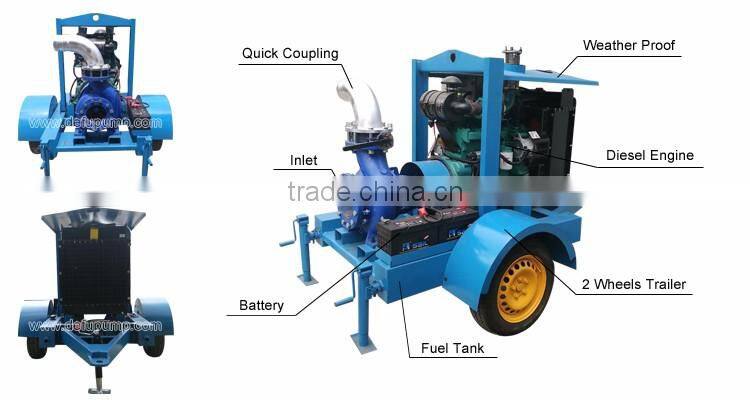

4. Structure of pump

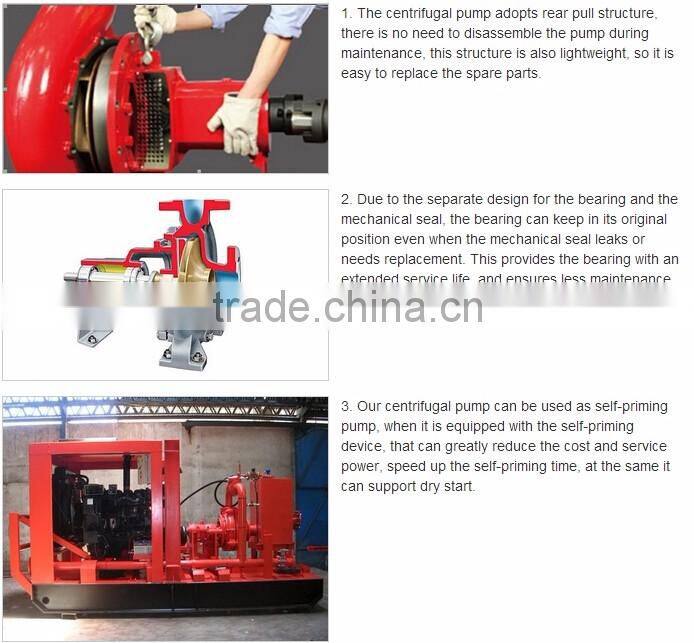

5. Features of Self Priming Pump
6. Application of diesel water pump
- Constructional Engineering: clear water transportation, pressurization system, air condition water circulation system, fire extinguishing system, swimming pool and water circulation system.
- Industry: circulating cooling system, process water for paper-making and paper pulp, steel production, shipbuilding, sea transportation and other manufacturing industry.
- Mining Industry: water supply, mine drainage, generating station, etc.
- Others: Municipal water supply, agricultural irrigation and some others.
