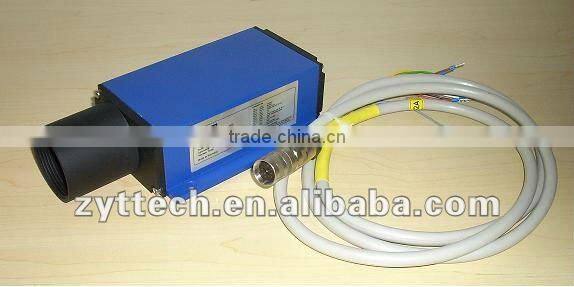

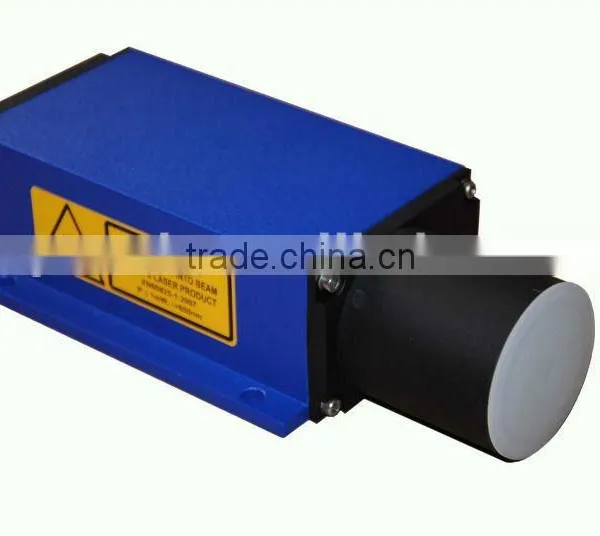

0.1m-150m Range Finder

Specifications

Product overview

     Laser Range Finder which uses laser to measure the phase comparison method, can be measured without contacting with the surface or the reflective target surface.

     The product structure design is reasonable, with adjustable mounting bracket, purge the lens unit, and air cooling device. It is suitable for industrial applications, especially for high-precision, and non-direct contact applications, such as crane operation locate and metallurgical production line control and so on.

Product features

1. Mm level measurement accuracy
2. Continuous detection of a moving object
3. For high temperature/dusty environment
4. Precision-heavy-no need to reflect board
5. With regional test ,control system and numeration function

Product type

ZYT-0040-1     10Hz  RS232/RS422

ZYT-0040-2     50Hz  RS232/RS422

ZYT-0040-3     ProfiBus

ZYT-0040-4     Ethernet Network

ZYT-0040-7     CANopen

Technical target

• Accuracy: ± 1mm
• Resolution rate: 0.1mm
• Repeatability: 0.5mm
• Measuring distance: 0.1 ~ 30m of any surface
                                        30 ~ 150m need to add reflectors
• Supply voltage: 10 ~ 24VDC
• Power consumption: 1W
• Laser Level: 650nm visible red
• 2 levels of security laser≤ 1mW
• Switch capacity: alarm output
• Simulation volume: 4 ~ 20Ma
• Protection class: IP65
• Dimensions: 195 × 55 × 115mm
• Housing: Aluminum
• Life: more than 50,000 h
• Weight: 2.5kg

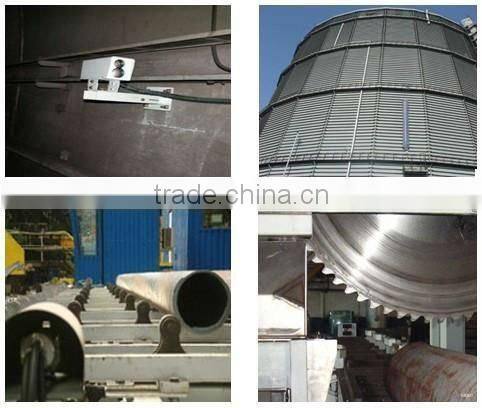

Application illustration
