Home > Products > Instrument > Low price laser digital range finder

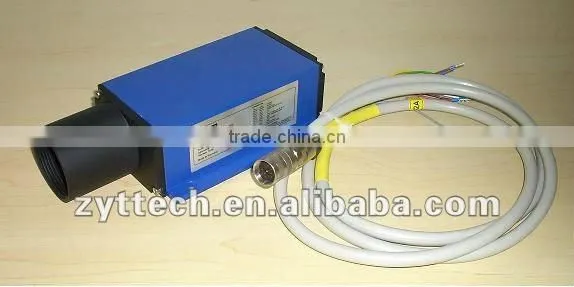

Low price laser digital range finder
- 10000 Set / Sets per Month
- Tianjin&Shanghai
- T/T Credit Card
Product Details
Laser Type: | Semiconductor | Place of Origin: | Beijing, China | Brand Name: | AIGER |
Model Number: | ZYT-0040 |
Packaging Details
carton packaging
Product Description
Specifications
1.High precision2.Measurement accuracy:1mm
3.advantage of rapid speed,high precision,measuring derectly
Product overview
Laser Measuring Sensor which uses laser to measure the phase comparison method, can be measured without contacting with the surface or the reflective target surface.
The product structure design is reasonable, with adjustable mounting bracket, purge the lens unit, and air cooling device. It is suitable for industrial applications, especially for high-precision, and non-direct contact applications, such as crane operation locate and metallurgical production line control and so on.
Product features
- Mm level measurement accuracy
- Continuous detection of a moving object
- For high temperature/dusty environment
- Precision-heavy-no need to reflect board
- With regional test ,control system and numeration function
Product type
ZYT-0040-1 10Hz RS232/RS422
ZYT-0040-2 50Hz RS232/RS422
ZYT-0040-3 ProfiBus
ZYT-0040-4 Ethernet Network
ZYT-0040-7 CANopen
Technical target
- Accuracy: ± 1mm
- Resolution rate: 0.1mm
- Repeatability: 0.5mm
- Measuring distance: 0.1 ~ 30m of any surface
30 ~ 150m need to add reflectors - Supply voltage: 10 ~ 24VDC
- Power consumption: 1W
- Laser Level: 650nm visible red
- 2 levels of security laser≤ 1mW
- Switch capacity: alarm output
- Simulation volume: 4 ~ 20Ma
- Protection class: IP65
- Dimensions: 195 × 55 × 115mm
- Housing: Aluminum
- Life: more than 50,000 h
- Weight: 2.5kg
Application illustration
Company Profile
Beijing ZhongYuanTong Science & Technology Co., Ltd. established in 1998, which is a professional high-tech enterprise based in Beijing, enjoying convenient transportation access. We are fully committed to produce advanced Self-cleaning water filters, marking machine and Laser distance sensor. We partner with leading operators and manufacturers in the industry.
We focus on the R&D, ensuring that we provide our customers with top-quality and innovative products. In addition, we use stringent quality control measures to ensure the reliability of our products. With sound business credit, excellent after-sales service and modern manufacturing facilities, we have earned an excellent reputation among our customers across the globe. We emphasize development, and introduce new products into the market every year.
Our products sell well in domestic and overseas markets, such as Asia, Europe, the Middle East and other countries and regions, and are favorably appraised by clients.
We pursue the management tenet of "Quality is superior, Service is supreme, Reputation is first", and will sincerely create and share success with all clients.
We welcome you to contact us for more information and look forward to working with you!
Contact Us
- Beijing Zhongyuantong Science And Technology Co., Ltd.
- Contact nameCarmen Cui
- Phone86-10-56216035
- AddressNo. 11, Liye Road, Beijing International Information Industry Base, Huilongguan
