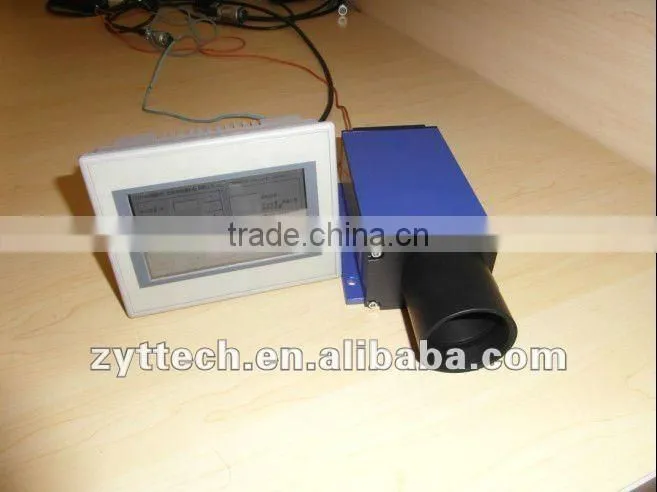

Digital laser range measuring instrument

Name: Digital laser range measuring instrument
Brand: AIGER
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Tianjin&Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Laser Type:	Semiconductor	Place of Origin:	Beijing, China	Brand Name:	AIGER
Model Number:	ZYT-CJ-200

Packaging Details

carton packaging

Product Description

Specifications

1.High sensitivity
2.Technology support
3.Detection distance: 0.1 ~ 150mm
4.Protection grade:IP65

Product overview

ZYT-CJ-200 model Laser detector uses laser to measure the phase comparison method. The Laser sensor transmits different frequencies visible laser beam, and receives the reflected laser return from the measured object. After compared the receive laser signal with the reference signal, using the micro processor calculates the corresponding phase shift that corresponding to the distance between objects. If the distance in the measurement range, the laser sensor outputs switch signal or level signal. Because the product can realize the characteristic of remote measurement and non-contact, the product is widely applied to detect in product line, location and mobile crane position alarm.

Product features

Mm level measurement accuracy
Continuous detection of a moving object
For high temperature/dusty environment
Precision-heavy-no need to reflect board
With regional test ,control system and numeration function

Product type

ZYT-CJ-200

Working principle picture

Technical target

1.Measurement accuracy: ±2mm, Distance measuring range within 30m, ±2mm .

2.Resolution: 1mm .

3.Measured rate: 5Hz ---100Hz.

4.Laser divergence angle: 0.6mrad .

5.Work temperature: -10°C~50°C.( Cooling device can up to -25°C~100°C).

6.Storage temperature: -20°C~70°C.

7.Power waste: related to the working way, maintain the state of 0.4W, the measuring state 1W.

8.Power supply: 10~30 VDC/2A.

9.Data interface: RS232/RS422,Baud rate 2400-38400,Format 8n1(Fixed)
Output: Output level 10~30 VDC

Switch contact opening and closing, load capacity 24VDC/0.5A .

10.Analog output: 4~20mA,Load impedance≤500Ω. Precision±0.15%,Temperature drift:

less than 50ppm/°C.

11.Safety class: DINEN60825-1 Standard,Laser level:2.

12.Wave length: 650nm .

13.Device for supporting the protective cover and bracket,Protection grade:IP65.

Working flow chart
