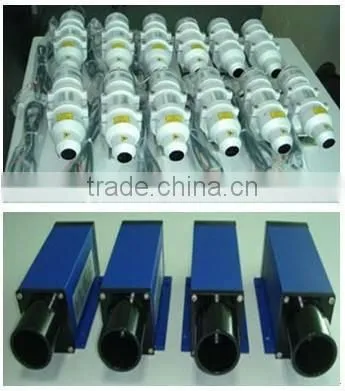

Professional laser measuring device

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Tianjin&Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	AIGER
Model Number	ZYT-0050	Measurement Accuracy	±2mm
Measurement Range	0.1-30,natural object safce,up to 150m

Packaging Details

public

Product Description

Specifications

1.Multi function with long range
2.Accurate and Convenient
3.Standard packing
4.Great service,reasonable price

Product overview

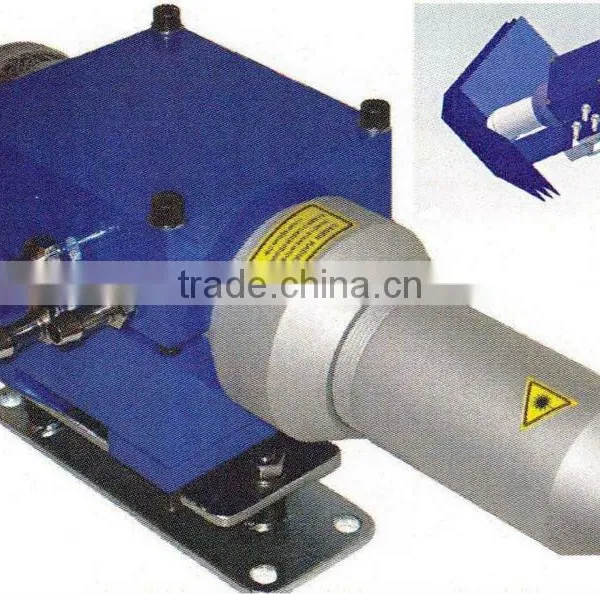

The ZYT-0050-1 / 2 series laser distance machine have IP66 heavy industry protection grade ,and the optional protective, dust, air cooling, water cooling and quickly change device of window,which can ensurethe instrument be used safely and effectively in high temperature, dust and other harsh industrial environment .

The ZYT-0050-1 / 2 series laser range finder with a spring cushion three point mounting bracket, installation simple solid. The mounting bracket base has a horizontal and a vertical two kinds of installation.

Product features

1.2level laser grade

2.Near distance measurement without reflector

3.up to millimeter level measurement accuracy

vides a variety of interfaces such as: RS232 / 422,4-20mA current, ProfiBus, E-net

5. IP 66level of protection, high protection level

6.low power consumption

lid structure compact

8.a wide range of applications

Product type

ZYT-0050-2 50Hz RS232/RS422
Working principle

The industrial laser ranging sensors usesthe phase comparison principle for measurement. Laser sensor transmits different frequency visible laser beam from the object to be measured, receiving back scattering laser, and then compare the received laser signal to a reference signal,finally by the microprocessor calculates the corresponding phase shift the distance corresponding to between objects. The measurement precision can reach mm level.

Performance index

Measuring distance	0.1-30,natural object safce,up to 150m	Working temperature	-20°C-70°C
Measuring precision	±2mm	Storage temperature	-20°C-70°C
Resolution	0.1mm	Supply voltage	10V-30V
Repeatability	1mm	Measurement of frequency	10Hz/50Hz
Laser divergence angle	0.6mrad	Weight	2Kg
Laser level	2	Data interface	RS232/RS422
Protection grade	IP65,Aluminum shell	Analog output	4-20mA

Application illustration
