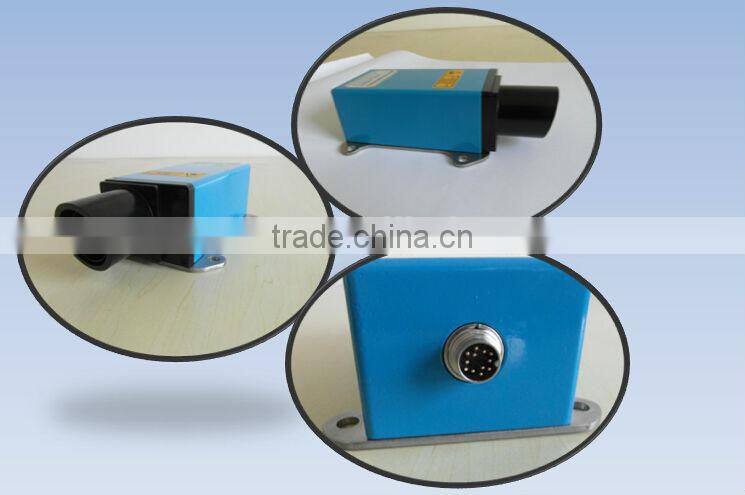

Sensor for High Precision Laser Range Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
AIGER
Model Number:
ZYT-LDS-0060
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin&Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Beijing, China
Brand Name
AIGER
Model Number
ZYT-LDS-0060
Specifications
1.Laser range measurement machine2.On the accurate positioning
3.Technology support
4.Higher protection grade
Product Description
The Sensor for High Precision Laser range machine which uses laser to measure the phase comparison method, can be measured without contact with the surface or the reflective target surface.

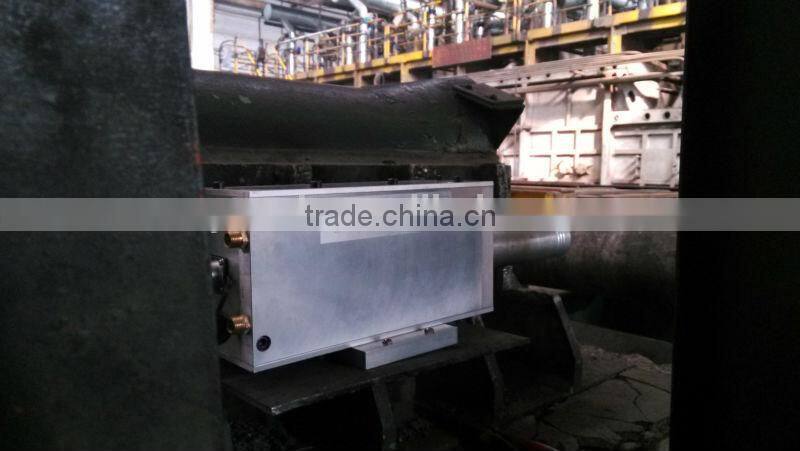

The product structure design is reasonable, with adjustable mounting bracket, purge the lens unit, air cooling device, suitable for industrial applications, especially for high-precision, non-direct contact applications, such as crane operation locate and metallurgical production line control and so on.
Advantages
- Mm level measurement accuracy
- Continuous detection of a moving object
- For high temperature/dusty environment
- Precision-heavy-no need to reflect board
- With regional test ,control system and numeration function
Buying Guides
Technical Parameters
- Accuracy: ± 1mm
- Measuring temperature:800 °C
- Resolution rate: 0.1mm
- Repeatability: 0.5mm
- Measuring distance: 0.1 ~ 30m of any surface
30 ~ 150m need to add reflectors - Supply voltage: 10 ~ 24VDC
- Power consumption: 1W
- Laser Level: 650nm visible red
- 2 levels of security laser≤ 1mW
- Switch capacity: alarm output
- Simulation volume: 4 ~ 20Ma
- Protection class: IP65
- Dimensions: 195 × 55 × 115mm
- Housing: Aluminum
- Life: more than 50,000 h
- Weight: 2.0kg
Application Range
