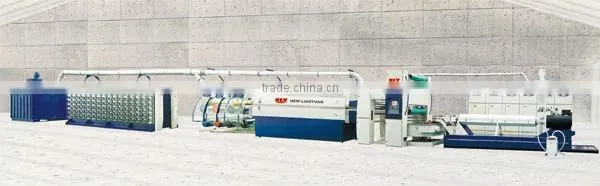

Plastic Extruding Flat Film Stretching Line/stretch Film Production Line
US$ 1 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
NLY
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MEW TECHNOLOGY PE Wrapping Film Machine , PE Stretch Film Making Machine ,PE Elastic Film MachineUS$ 100,000 - 200,000MOQ: 1 Set -
PE Stretch Film Making Machine ,PE Elastic Film MachineUS$ 100,000 - 200,000MOQ: 1 Set
-
CONICAL BLOWN FILM EXTRUSIONUS$ 8,000 - 500,000MOQ: 1 Set
-
Good Quality High Capacity PE Stretch Film Making Machine ,PE Winding Film MachineUS$ 100,000 - 200,000MOQ: 1 Set
-
GOOD QUALITY PE Stretch Film Machinery ,PE Winding Film MachineUS$ 100,000 - 200,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
NLY
Model Number
SJPL-G
Specifications
This line is designed and manufactured on the basis of world advanced technology and long-term experienceWith super-high capacity,high quanlity,high efficiency,low consumption,it can reach the minimum personnel cost and site area.Especially in producing PP/PE special yarn,such as PE tarpulin,warp yarn for jumbo bag etc,this line has more competition power. The capacity of this line is double than other normal tape line.
Main technical parameter:
| Item | SJPL-G100×33-1100 | SJPL-G110×33-1500 |
| Max extrusion volume | 500kg/h | 650kg/h |
| Screw Diameter | 100mm | 110mm |
| Ratio of L/D | 33:1 | 33:1 |
| Rotation speed of screw | 20-120r/min | 20-120r/min |
| Length of mold lip | 1100mm | 1500mm |
| Max production speed | 550m/min | 550m/min |
| Flat yarn fibre scope | 60-200tex | 60-200tex |
| Drawing ratio | 4-10 | 4-10 |
| No.of winder | 170Spindles | 210Spindles |
| System installed capacity | 350kw | 460kw |
| System normal operational capacity(about) | 210kw | 276kw |
| Overall dimension(L×W×H) | 34000×3700×3000mm | 35000×3900×2600mm |
| Total weight | 27T | 32T |
