BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE

BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE thumbnail-1
BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE thumbnail-2
BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE thumbnail-3
BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE photo-1
BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE photo-2
BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE photo-3
US$ 100,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, BCF Yarn Machine
Plastic Processed:
Other, PP PET
Contact Supplier Request Quote Chat Now
Cissco Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, BCF Yarn Machine
Plastic Processed Other, PP PET
Screw Design Single-screw
Automatic Grade Fully Automatic
Place of Origin Shanghai, China
Brand Name BCF YARN LINE
Model Number BCF YARN LINE
Voltage 380V 50HZ
Power(W) 55kw
Dimension(L*W*H) 5*5*13m
Weight 20T
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE

Product Description

1. Information of BCF Yarn Machines

Used for producing PET -BCF by processing of extruding, melting, spinning and drawing ,consisted of spinning machine, drawed-winder

Chips→ extruder→ extruding head→Filter→melt pipe with static mixer→ spinning beam with oil heating →quenching delay→ quenching chamber → oiling system  →  feeding roller →migration nozzle→ Five pairs of hot godet →interlacing jets→ take-up winder →  final product

2. Parameters of BCF Yarn Machines

Air-conditioning
             quenching chamber: air temperature 18-20℃
             air  pressure:              400-1000Pa±5Pa adjustable
             relative humidity :       60-85%±2%
             air conditioner temperature: temperature 25~28℃±0.5℃
             temperature of electrical control shop: emperature 22℃±2℃
             consumption of compressed air: 10Nm3/min(1.2MPa)
Capacity calculations
             denier range:                  1200-1400D/BCF YARN

             capacity calculated by following references:
             no. of spinning position:  4 /pos.
             ends of spinning :            2ends /pos
             annual workdays:            330days
             efficiency:                        0.93%
    1200-1400D:  1500×4×2×1440 ×0.93    = 2.14 - 2.50ton /per day

                                 9000×1000×1000


Technical parameters
              Denier                      1200-3000D

              No of pos:                4 pos
              Spinning speed:       1500-1800m/min
              Process speed :       1500---1800m/min
              Ends each gauge:    2ends /pos
Techical specifications

NO. Name Configuration
1 Mode of extruder horizontal
2 Specification 105   L/D=25
3 Control mode AC inverter
4 mode of spin beam one-side
5 No of beams 4pcs/ per line
6 No of ends 2ends/pos
7 mounting distance 1500mm
8 Meter pump 2×10cc/rev
9 No of pump 2pcs/pos
10 No of transmission device for meter pump 2pcs/pos
11 mode of spin packs cylinder shape top-mounted
12 No of spinneret 1 pcs/spin packs
13 size of spinneret 140mm
14 quenching chamber crossing blow
15 winder mode SWBA600
16 hot godet mode 180X260mm

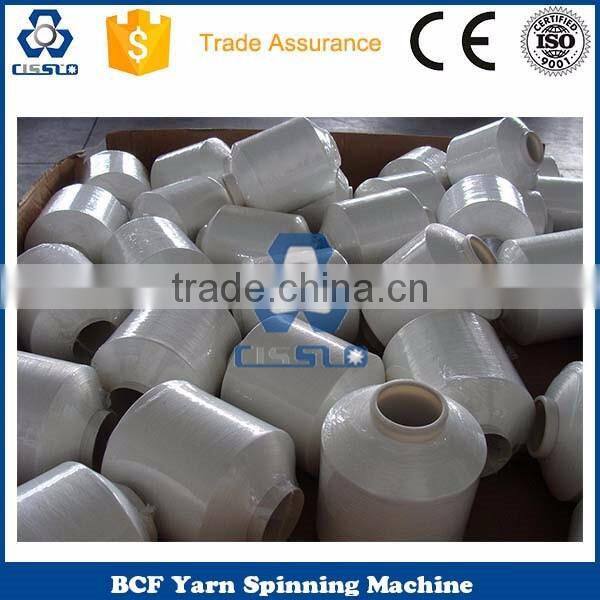

3. Pictures of BCF Yarn Machines

BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINEBCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE

BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINEBCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINEBCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINEBCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINEBCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINEBCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE

BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE

Packaging & Shipping

BCF CARPET YARN EXTRUDER MACHINE, BCF YARN LINE

Our Services

• We design, engineer and manufacture and customized the extrusion line.

• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements,  weigh the options and recommend the best solution for the client.

• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and     installation at our client’s factory

• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
