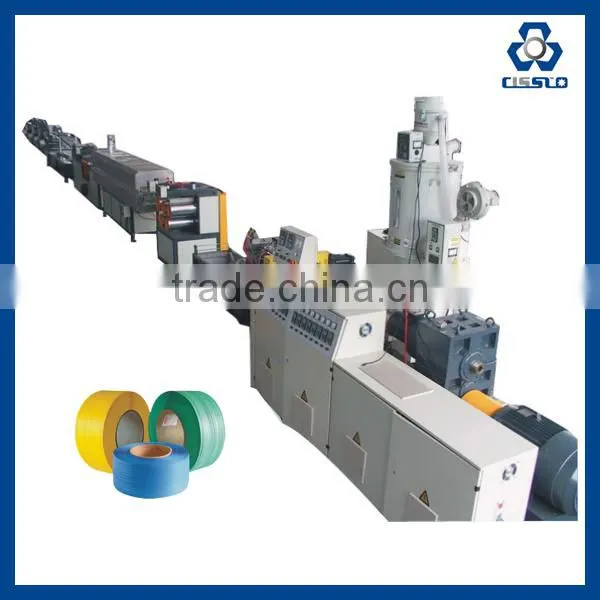

HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES

Cissco Machinery Co., Ltd.

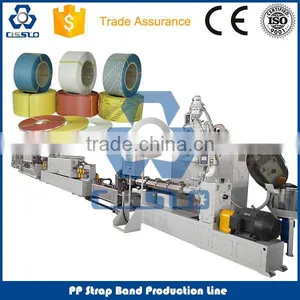

HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES thumbnail-1
HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES thumbnail-2
HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES thumbnail-3
HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES thumbnail-4

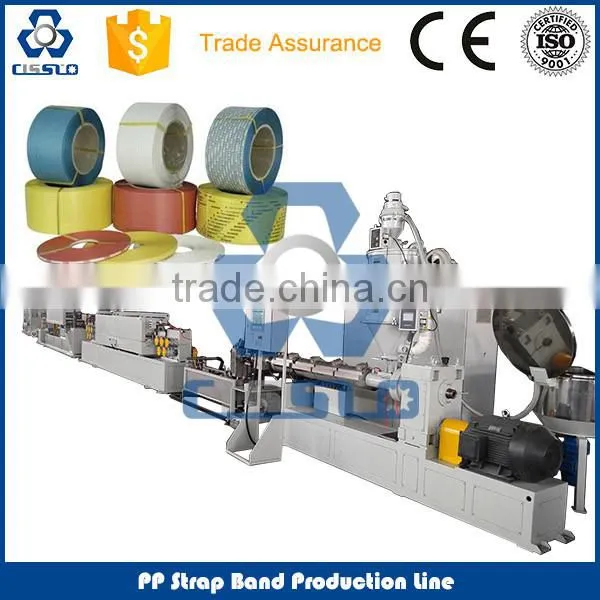

HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES photo-1
HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES photo-2
HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES photo-3
HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES photo-4
US$ 100,000 - 500,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Wire
Plastic Processed:
PP
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Wire
Plastic Processed PP
Screw Design Single-screw
Automatic Grade Automatic
Place of Origin Shanghai, China
Brand Name PP strapping making machine
Model Number PP strapping making machine
Voltage 380V
Power(W) 340KW
Dimension(L*W*H) 20*4*4
Weight 20T
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

PP STRAPPING MAKING MACHINERY

Machine Details
  • SPECIFICATION OF PP STRAP MACHINE

No.

Item

Specification

1

Power

380v/3P/50Hz

2

Material

PP

3

Extruding capacity

100/150/280kg/hr

4

Product specification

width 5-19mm. thickness 0.35-1.0mm

5

Speed

max.140m/min

6

Mid-height of extruder

1000 mm

7

Control Direction

from left to right

8

Total power

135/155/195kw

9

Humidity

<85%

10

Temperature

0-40°C

11

Cooling cycling water

<20°C >0.3Mpa ~30T/h

12

Compressed air

0.4m³/min>0.5MPa

13

Overall dimension

36m×6m×4.5m

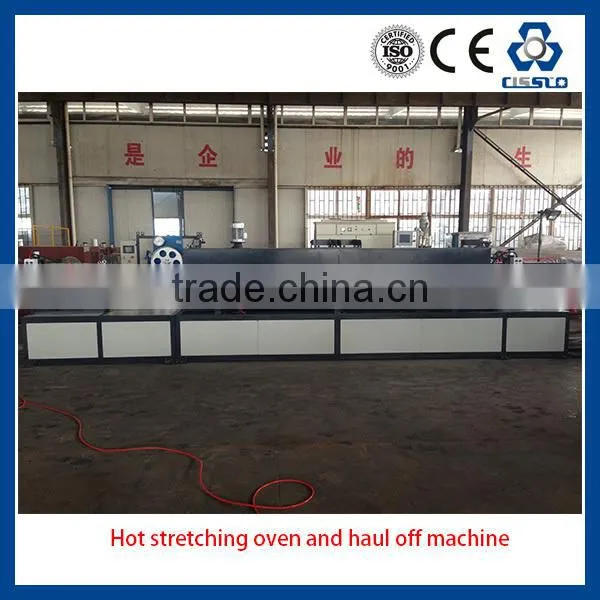

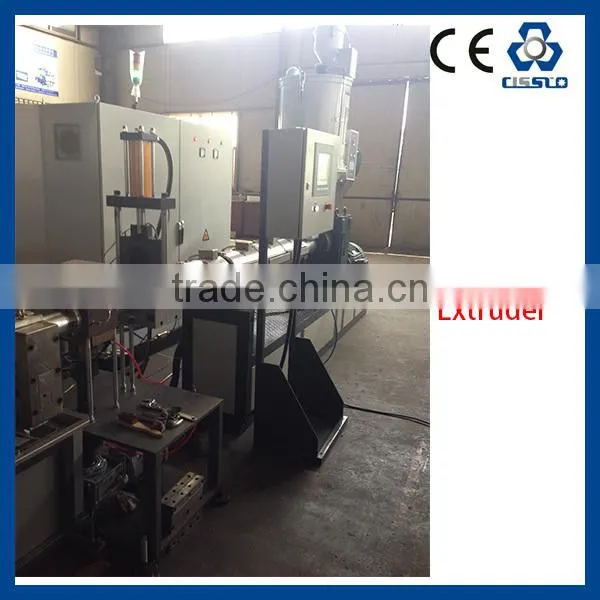

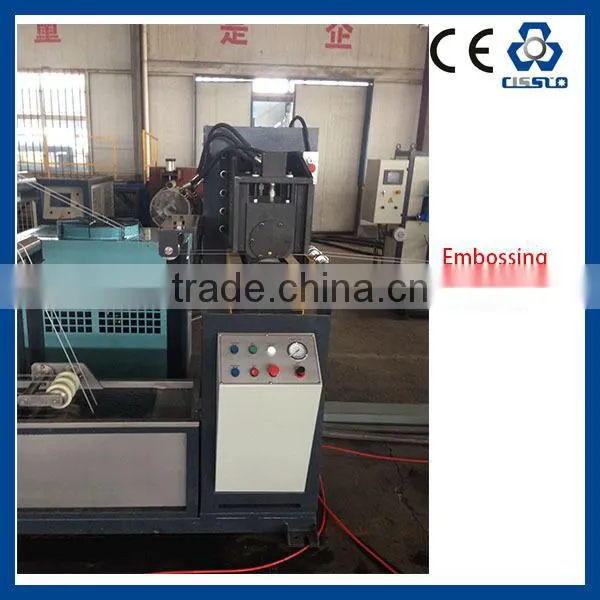

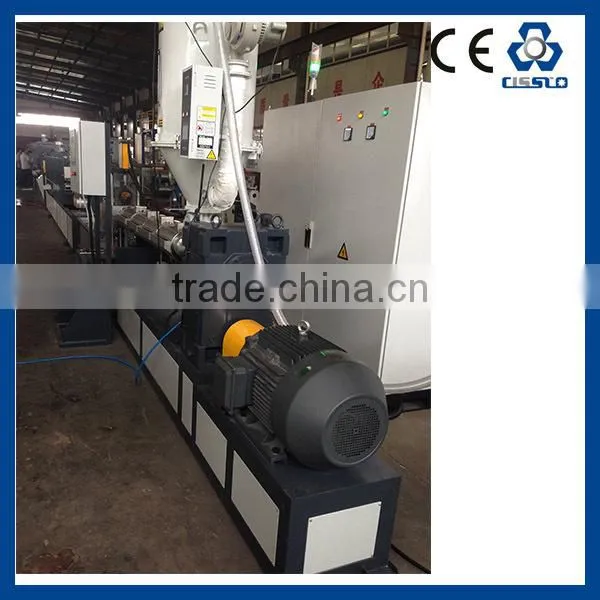

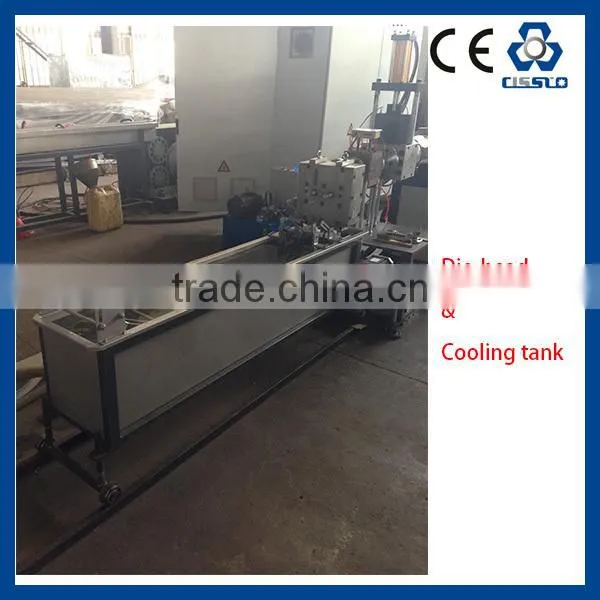

  • PICTURES OF PP STRAP MACHINE (Main Parts)

HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINESHIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINESHIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINESHIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINESHIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINESHIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINESHIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINESHIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES

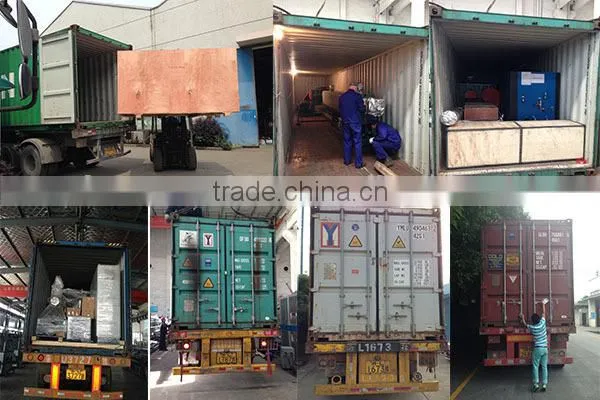

Packing and Delivery

HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES

After-Sales Service

• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.

FAQ
  • What about the output of PP strapping band extrusion line? 100kg/hr, 150kg/hr and 280kg/hr.
  • What about the size of strap that the PET strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
  • What about the installation power of the PET strap machine? 135kw/155kw/195kw;
  • What about the maximum tensile strength of the strap? 6000N (25*1.0mm);
  • What about the camber of strap? <20mm/2m;
  • What about the usage of PET strap? Packing boxes, money, paper;
  • Will the strap be used for automatical strapping tool or manual tool? Both.

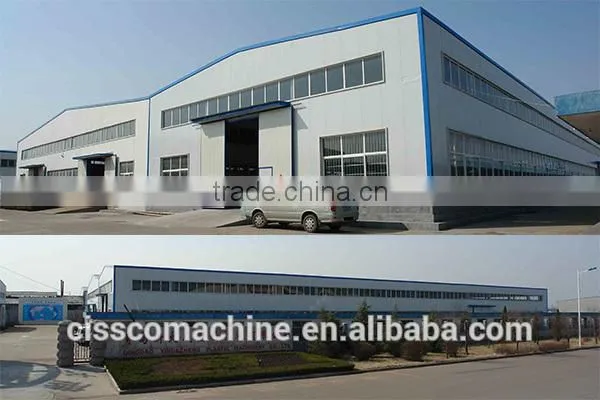

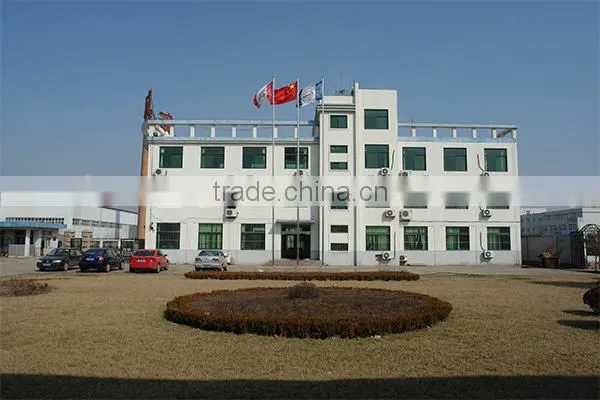

Company Information

CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.

For PET (Polyester) or PP (Polypropylene) strapping band production line, we have the samilary design, process and technology as Italy company. Comparing with the low price low quality machine, please note our strong advantages:

1. 20 Years Experiences;

2. Italy Technology;

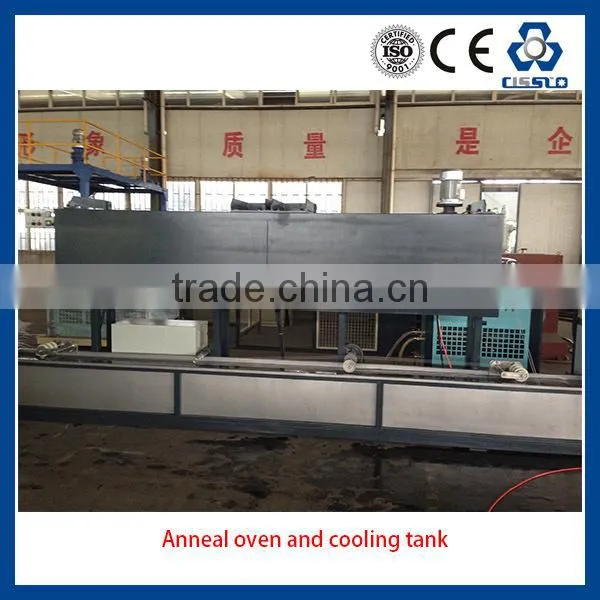

3. High Efficiency Oven Heating and Annealing system;

4. MAAG melt pump--Switzerland;

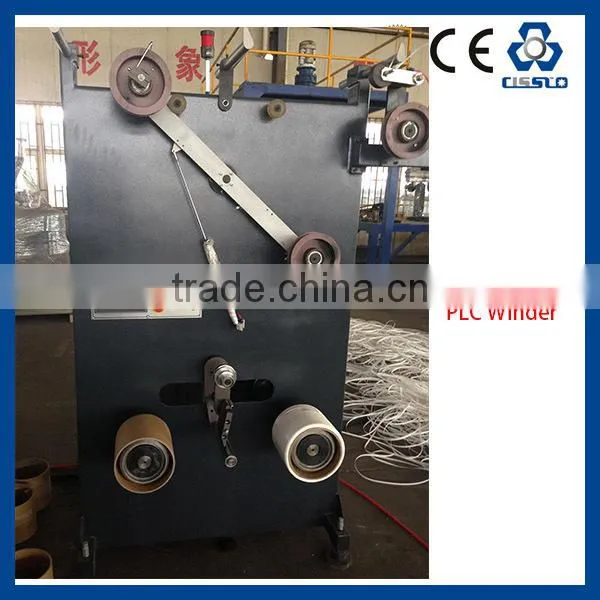

5. PLC Controlled Low-Camber Constant-tension Winder;

6. Fully Automatic No-Stop Back-Flush Screen Changer;

7. Easy to Operate, Stable Performance, Good Quality Straps, Low Production Cost;

8. Quicker Production Speed, Big Output;

9. Good Material and Well-Known Brand Electrical Parts;

10. Beautiful Appearance;

11. Free Training for Technical Process, Formula and Know-How;

12. Full Time and High Level After-Sale Services.

HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES

HIGH TECH PP STRAPPING ROLL MAKING LINES, PP ROLL MAKING MACHINE, STRAP MACHINES

Contace Me

l  Contactor: Mr. Louies Liu

l  Skype: louies.cissco

l  Whatsapp: +86 18917527205

l  Viber: +86 18917527205

l  WeChat: +86 18621368329

l  Cell: +86 18917527205

l  Web:

l  Add: No. 58, New Jinqiao Road, Pudong, Shanghai, China
