High Efficiency PET Packing Strap Making Machine
- 50 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Application: | Other, PET Packing Strap Making Machine | Plastic Processed: | Other, PET |
Screw Design: | Double-screw | Automatic Grade: | AUTO | Place of Origin: | Shanghai, China |
Brand Name: | PET Packing Strap Making Machine | Model Number: | PET Packing Strap Making Machine | Voltage: | 300V |
Power(W): | 300KW | Dimension(L*W*H): | 20mx2.5mx2.2m | Weight: | 30T |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Efficiency PET Packing Strap Making Machine
I. Basic parameters
1. Raw material: 100% recycled or virgin PET flakes (viscosity≥0.75)
¨ Raw material reference technology parameters
2.1. Width: 9 - 19mm
2. Parameters of straps:
2.2. Thickness: 0.6-1.2mm
2.3. Breaking strength:< 50kg/mm²
2.4. Elongation rate:10-15%
2.5. Width tolerance:±0.45mm (int. ±0.76mm)
2.6. Thickness tolerance:±0.05mm (int. ±0.06mm)
3. Extrusion parameter:
3.1. 2 straps: Width 9-12mm, T<1mm
3.2. 1 straps: Width16-19mm, T >1mm
3.3. Extrusion output: Max 200kg/h
3.4. Production line speed: ≤120m/min ×2(1)
4. Electricity:AC380v/3HP/50Hz±10%L1+L2+L3+N+PE5. Installed power:Appr. 215kw (working capacity 130kw)
6. Workers required:2-3 persons
7. Overall dimension:35m×5m×4.5m
2. Scope of Supply:
No. | Description | Qty. |
1 | PET150 Efficient dehumidification drying preliminary crystal system | 1 unit |
2 | Three constituents mixing and feeding system | 1 set |
3 | SJ-65/30 single screw extruder | 1 unit |
4 | Continuous exhausting hydraulic screen changer | 1 set |
5 | High temperature melt pump | 1 set |
6 | PET extrusion dies | 1 set |
7 | Water cooling tank | 1 unit |
8 | The first 5-roller preheating unit | 1 unit |
9 | Convection oven | 1 unit |
10 | The first stretching machine | 1 unit |
11 | The second stretching machine | 1unit |
12 | Embossing machine | 1 unit |
13 | Heat setting machine | 1 set |
14 | Water cooling tank | 1 unit |
15 | 3-roller traction machine | 1 unit |
16-0 | Single station winding machine (mechanical) | 3 units |
16-1 | Single station winding machine (PLC controlled) | 3 units |
17 | Electrical Control system | 1set |
18 | Technical Information | 1 Manual |

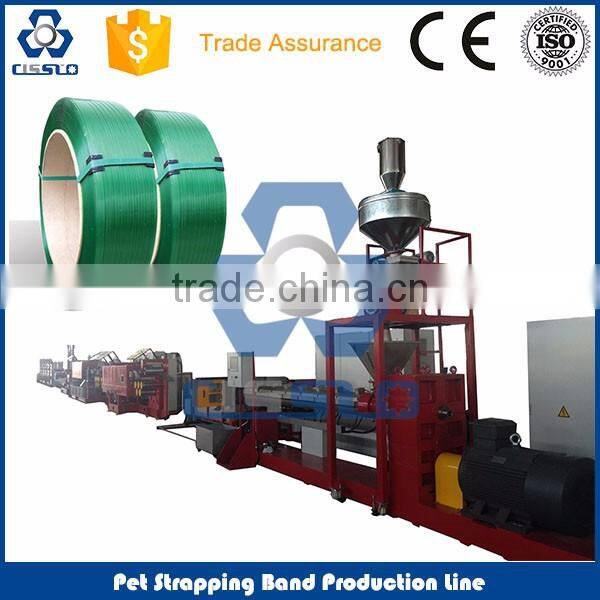

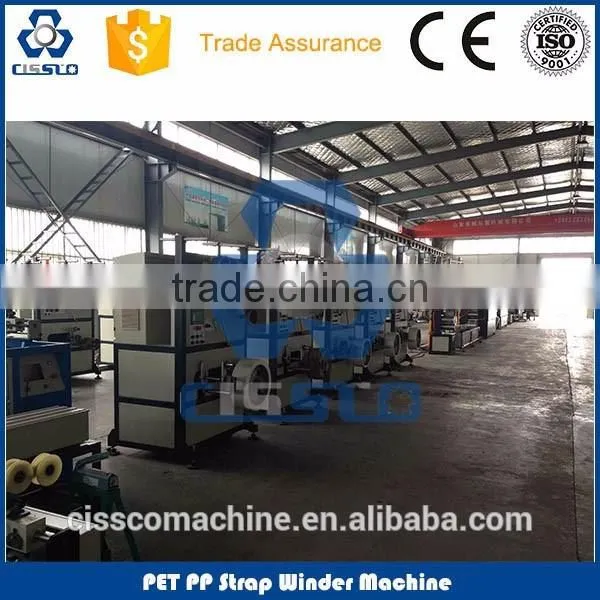

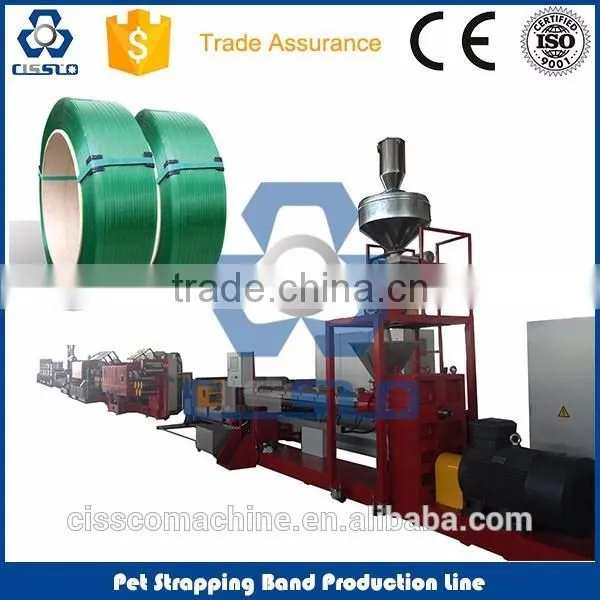

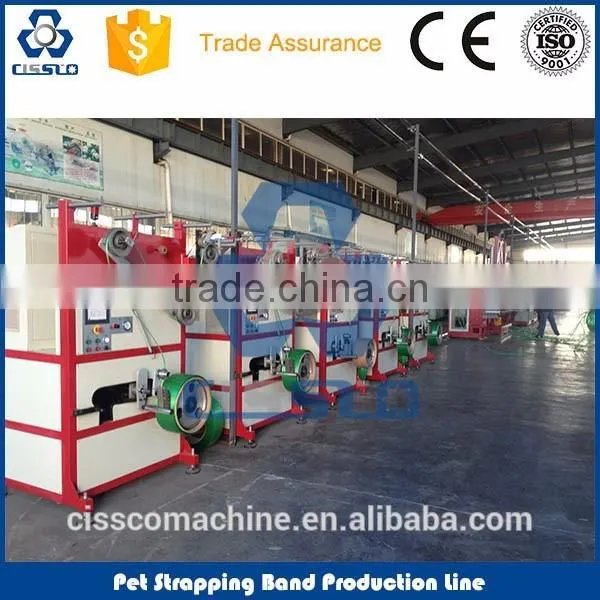

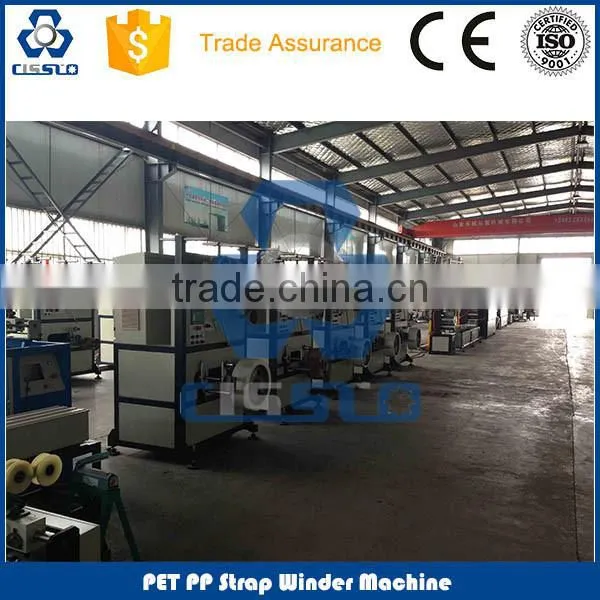

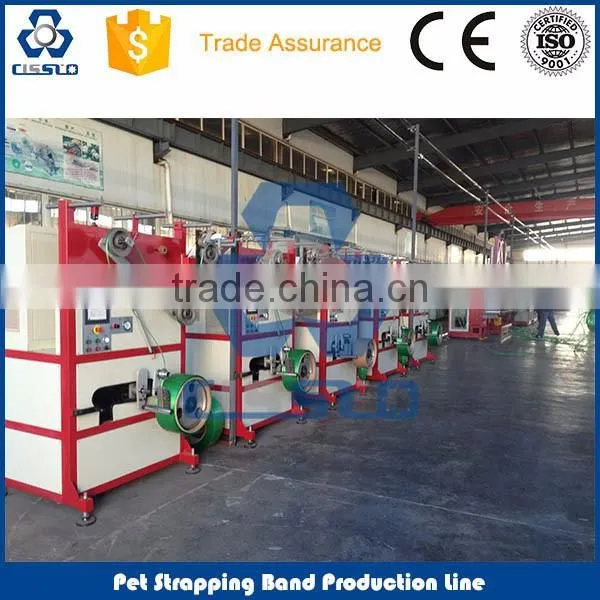

3.Pictures OF Packing Belt Making Machine
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUDing MACHINERY for more than 20 years and has acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
• We design, engineer and manufacture and customized the production line for every customer.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
l Contactor: Ms. Shelley Huang
l Skype: shelley2737
l Whatsapp: +86 18602153584
l Viber: +86 18918189632
l Cell: +86 18918189632
l Web:
l Add: No. 58, New Jinqiao Road, Pudong, Shanghai, China
