PVC DOUBLE LAYERS CORRUGATED PIPE PRODUCTION LINE
I. OVERVIEW
No. |
Item |
Specification |
1 |
Electric power |
380v/3P/50Hz |
2 |
Material |
PVC Powder |
3 |
Extruding capacity |
500/300kg/hr |
4 |
Product specification |
Double wall corrugated pipe |
5 |
Speed |
0.3-5m/min |
6 |
Mid-height of extruder |
1265 mm |
7 |
Control Direction |
from left to right |
8 |
Total power |
500kw |
9 |
Humidity |
<85% |
10 |
Temperature |
0-35°C |
11 |
Cooling cycling water |
<30°C >0.3Mpa ~8T/h |
12 |
Compressed air |
5m³/min>0.6MPa |
13 |
Overall dimension |
45m×4m×3.5m |
II. SCOPE OF SUPPLY
No. |
Description of equipments and model no. |
Quantity |
1 |
TS-92/188 conical screw extruder |
1 set |
2 |
TS-80/156 conical screw extruder |
1 set |
3 |
Molds (Φ100-Φ800mm) |
1 set |
4 |
TSSBGL- Forming-Machine |
1 set |
5 |
Hall-off Machine |
1 set |
6 |
Spray cooling tank |
1 set |
7 |
TS-800 Cutting Machine |
1 set |
8 |
TS-6000 Overturning Bracket |
1 set |
9 |
PLC Control System SBG-800ACT-SMART |
1 set |

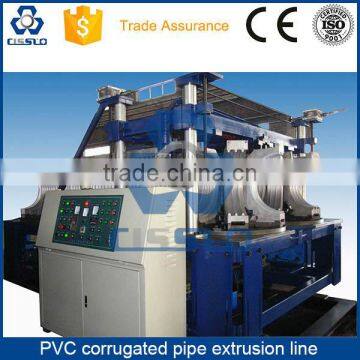

III. PICTURES OF SUPPLY
1. We design, engineer and manufacture and customized the extrusion line.
2. Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
3. Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
4. Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Comparing with the low price low quality machine, please note our strong advantages:
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services.
