Home > Products > SHEET & PIPE & PROFILE > Good Quality HDPE Silicone Core Duct Extruder
Good Quality HDPE Silicone Core Duct Extruder
- 30 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Shanghai, China |
Brand Name: | Silicone Core Optical Fiber Cladding Tube Making Machine | Model Number: | Silicone Core Optical Fiber Cladding Tube Making Machine | Voltage: | 380V 50HZ |
Power(W): | 150KW | Dimension(L*W*H): | 20mx2.5mx2.2m | Weight: | 10T |
Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Good Quality HDPE Silicone Core Duct Extruder
I. Final products from our machine
II. Common information of machine line
1. In view of operation safety, machine equipped with:
- E-stop switch;
- Control system to prevent machine from damaged at abnormal condition;
- Flash lamp and voice show machine is under abnormal running condition;
- The parts which probably cause damage to operation staff are all designed with protection.
2. The following technical documents included in the content of purchasing object:
- Installation layout diagram of machines;
- Circuit diagram of machines;
- Operation manual of machines;
- Certificate of machine quality;
- Certificate of machine warranty by supplier;
- Spare parts (refer to spare parts list).
3. Name and model : SXG-75X45X25T Silicon core HDPE tube extrusion line
- Output: Max 160 ± 10%Kg/h, expected producing speed: 0–100 m/min;
- Environment: Indoor, humidity 0.85, no condensation point, temperature<=40℃;
- Power supply: 380V 50HZ, 3-phase 4wires; Install power <=160KW;
- Circulation water flow: 12-14.0m3/h;
- Compressed air: 0.6-0.7Mpa.
- Operation direction of production line is from right to left direction;
- Core height of production line is 1100mm;
- Install space: 23.0m x 3.5m x 3.5m (length x width x height);
- Color of machine: RAL 7035; Or according to client appointed color;
III. Specifications of TUBE
- Raw material: HDPE + silicon granule;
- Color of pipe: ? ;
- Size of pipe: OD 8-16mm
- Eccentricity : <=0.10
- Internal and external surface of pipe should be smooth and single color, should be uniform wall thickness, no manufacturing defect and air bubble, shrinkage, crack, non-uniformity etc.
IV. Configuration of Silicon core HDPE tube extrusion line
Item. | Equipment Name | QTY/set |
1.1 | Automatic loader | 3 |
1.2.1 | Hopper dryer | 2 |
1.2.2 | Mixer | 1 |
2.1 | HDPE Single screw extruder | 1 |
2.2 | Silicon Single screw extruder | 1 |
2.3 | HDPE Single screw extruder | 1 |
2.4 | Volumetric type co-extrusion mold | 1 |
3.1 | Full sealing precision vacuum sizing tank | 1 |
3.2 | Cooling tank | 1 |
4 | PROTON bidirectional high speed laser diameter gauge | 1 |
5 | Belt type puller | 1 |
6 | Double-position coiling machine | 1 |
V. Detailed technology information of Silicon core HDPE tube extrusion line
Co-extrusion extruder: 1. Single screw extruder for hdpe. 2. Single screw extruder for silicone. 3. Single screw extruder for mark line. | |

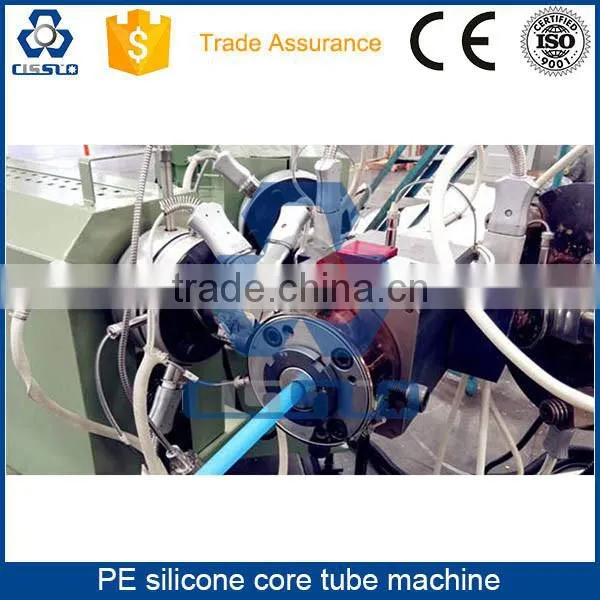

Volumetric type co-extrusion mold: 1. Material of mold body: 40Cr. 2. Structure of mold: High pressure volumetric mold, can realize high speed, high precision production. 3. Mandrel and die: Material is High class “H13” die steel, precision grinding. | |
Cooling tank: 1. Specification: Length 6000mm, width 180mm, depth 180mm, made by SUS304 material, opened structure. 2. Water circulation system: Circulation water reservoir (SUS304)—1set, circulation water reservoir built-in level control device. | |
Belt type puller: 1. Belt: Multi layer wear-resistant belt, 2pcs. 2. Specification of belt: Effective contact length 800mm, width 80mm, clamping height 0-80mm. 3. Speed setting: 6.0 - 60m/min. | |
Double-position coiling machine: 1. Coiling plate: Double-position coiling (winding plate specification 1200mm out-diameter). 2. Coiling motor: AC motor, with inverter. 3. Tension regulator: Automatic regulating winding speed and traversing speed according to tension state of tube. |
Standard Package for Ocean Shipping
l Contactor: Ms. Shelley Huang
l Skype: shelley2737
l Whatsapp: +86 18602153584
l Viber: +86 18918189632
l Cell: +86 18918189632
l Web:
l Add: No. 58, New Jinqiao Road, Pudong, Shanghai, China
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUDing MACHINERY for more than 20 years and has acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
• We design, engineer and manufacture and customized the production line for every customer.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
