High quality pc wave sheet extrusion line

PC WAVE SHEET EXTRUSION LINE

PC board for polycarbonate sheet, is a new kind of high-strength waterproof light energy-saving roofing materials

• PP material wave tiles are mainly used in packaging, decoration, insulation, backing plate.They are green god.They are popular in Europe, the United States and Japan.
• 2.PVC material wave tiles are mainly used in packaging, decoration, insulation, lighting and so on.They are green god.They are acid-proof,durable and alkali-resisting.

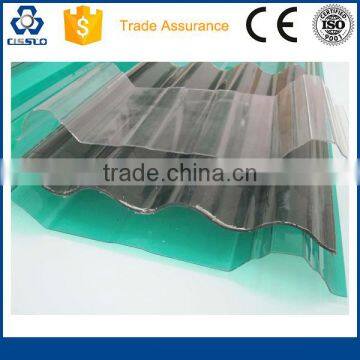

• 3.PC wave tiles are not acid-proof, durable, alkali-resisting.But they are high temperature resistance, good lighting effect.

1. GENERAL INFORMATION OF PC WAVE SHEET EXTRUSION LINE

1.1 APPLICATION:

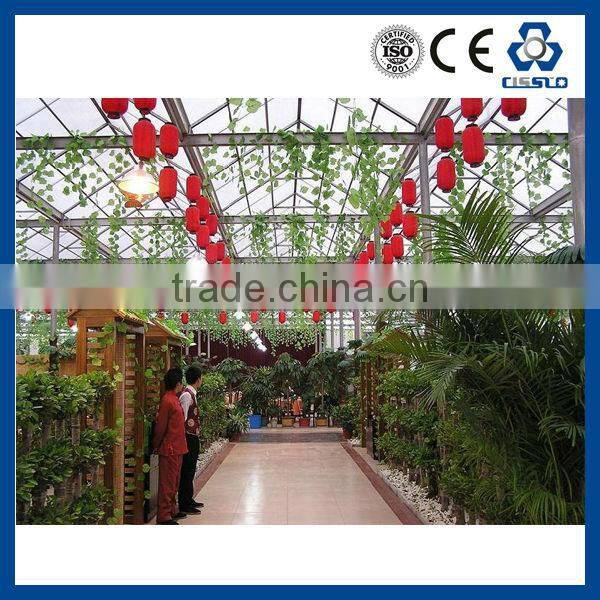

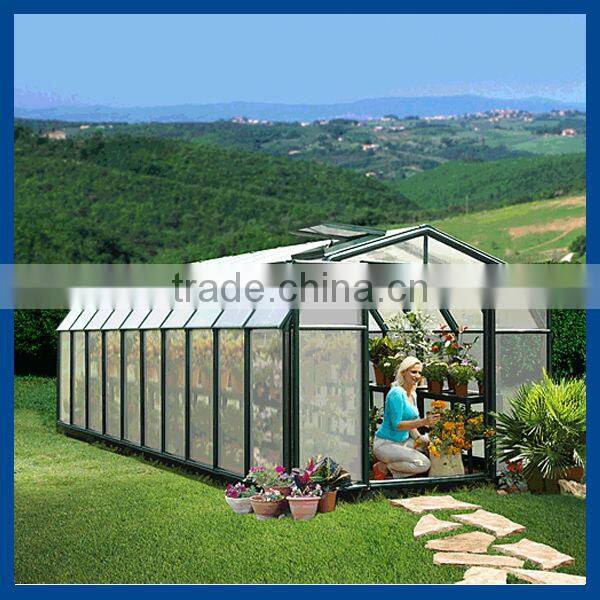

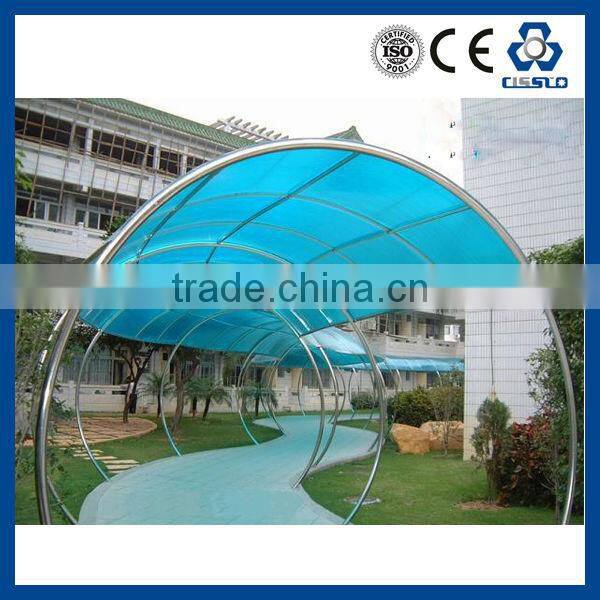

Used mainly in the contruction industry for roofing, windows, skylights, greenhouses, porches, gazebos, ceilings

1.2 TECHNICAL FEATURES

1.3 DESCRIPTION

The characteristic structure of the multiwall sheets with air space inside guarantees good thermal insulation and excellent resistance to crash stress.

The external side of sheet is coated with U.V. protection (both sides on request) warranting resistance to aging due to atmospheric agents and UV rays.

1.4 ADVANTAGES

•  Light transmission
•  Resistance to U.V. rays and to hail
•  Energy saving
•  Economical

2. EQUIPMENT MAIN TECHNOLOGY PARAMETERS OF PC WAVE SHEET EXTRUSION LINE

• Product width: 1000mm
• Product thickness: δ=8-12mm
• Max. output: 200-300kg/h
• Voltage condition: 380V/3 Phase/50Hz
• Sheet structure: A+B+A, three layers co-extrusion
• Production speed: 3m/min
• Installed power/Practical power: 200KWKW
• Compressed air: 1m³ / h, 0.5-0.8Mpa
• Cooled water: 8m3 / h; 25°C

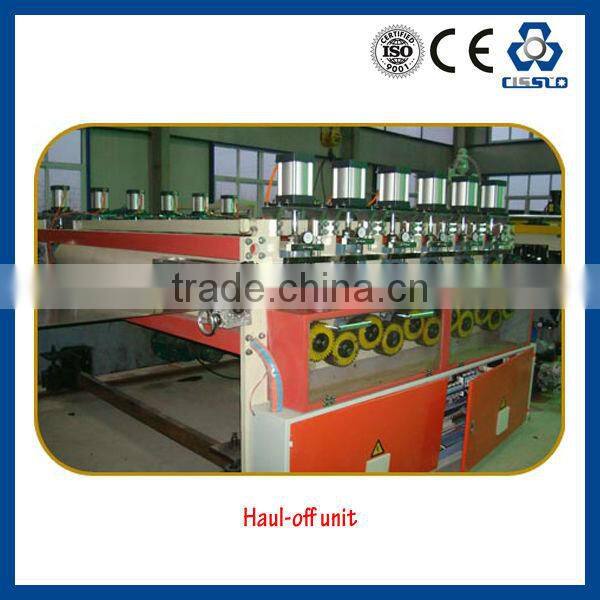

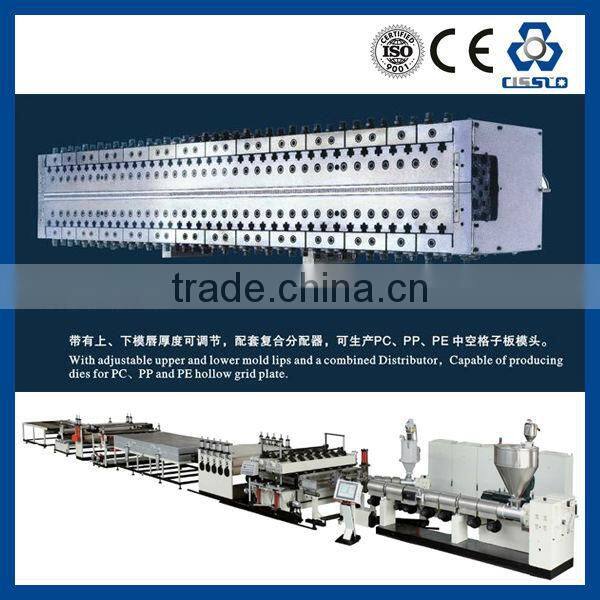

3. CONFIGURATION OF PC WAVE SHEET EXTRUSION LINE

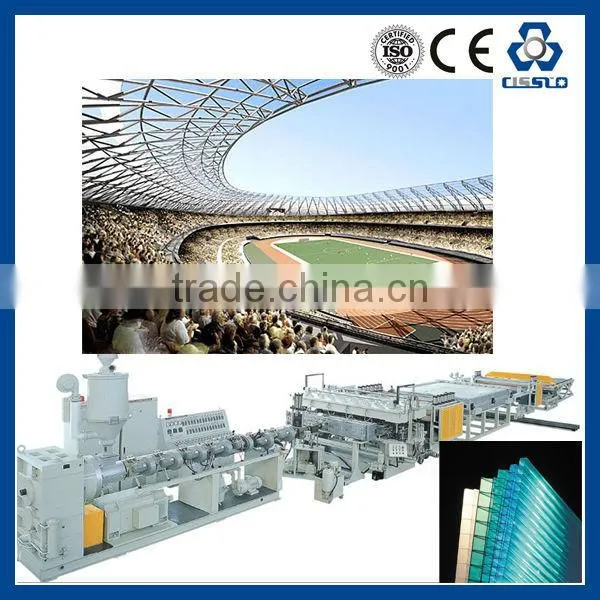

5. APPLICATION OF PC WAVE SHEET EXTRUSION LINE
