XPS FOAMED BOARD MAKING MACHINE
1. TECHNICAL SPECIFICATION OF XPS BOARD EXTRUSION LINE
| Product | XPS CO2 Extrusion Line | Model | 75/32-200,90/32-300 |
| Board width | 600-1200mm | Board thickness | 20mm--120mm |
| Output |
500 - 1000 kg/h or 350 - 800 m3/24h |
Density | 28 - 40 kg/ m3 |
| Blowing agent | CO2+Alcohol | Material | Polystyrene(PS) |
| Certificate | ISO 9001: 2000 | ||
| Function | produce Extruded Polystyrene (XPS) Foam Board | ||
2. Standard configuration OF XPS BOARD EXTRUSION LINE
Description |
Extrusion feed system |
Main extrusion system |
TDS75D twin screw extruder |
Melt adaptor |
TDD200R single screw extruder |
High pressure blowing agent injection system |
Dosing unit for SCF CO2 |
Dosing unit for HCFC or HFC blends |
Static mixer and Die |
Static mixer |
Die |
Central control station |
Calibrator and haul-off |
Calibrator |
Haul-off |
Cooling section |
Puller and edge cut hogging units |
Main cut-off machine |
Roller conveyor |
Side and end milling sections |
Length-side milling section |
End-trim milling section |
Stacker and lifter |
Auto-packing unit |
XPS Recycle Line |
Reversal Cooling Rack |
Crusher blowing and air purification system |

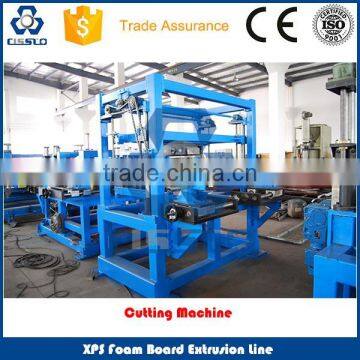

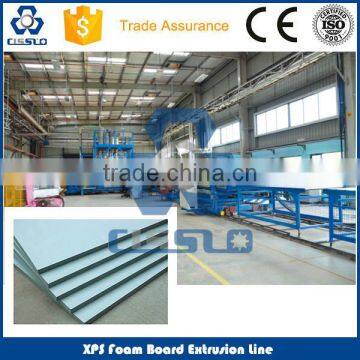

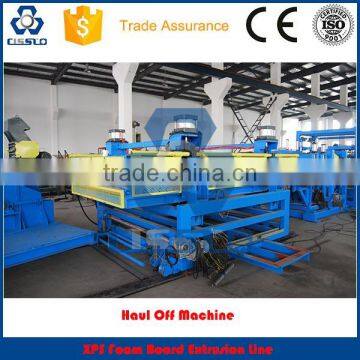

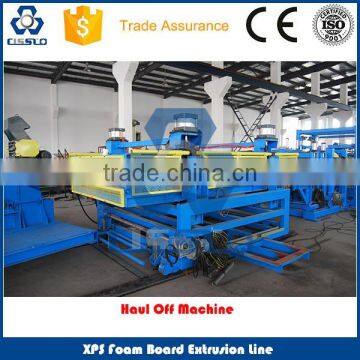

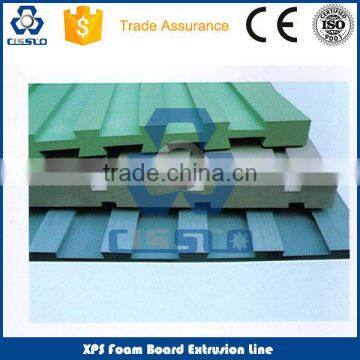

3. PICTURES OF XPS BOARD EXTRUSION LINE
1. We design, engineer and manufacture and customized the extrusion line.
2. Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
3. Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
4. Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Comparing with the low price low quality machine, please note our strong advantages:
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services.
