Egg Box Making Machine Egg Box Production Line
1. Introduction of Egg Box Production Line
HSC-660C thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by micro PLC. It is operates with man-interface, which can works all by itself. It combines the material feeding, heating, drawing, forming, cutting into one process.
2. Main features of Egg Box Production Line
It is used for forming PP, PS, HIPS, PVC and PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast-food boxes etc.
3. Main technical parameter of Egg Box Production Line
No. | Items | No. | Items |
1 | Maximum forming area: 580*480mm | 2 | Maximum forming depth: 120mm |
3 | Maximum width rage of sheet: 660mm | 4 | Thickness range of sheet: 0.2-2mm |
4 | Maximum sheet roller diameter: 710mm | 6 | Air pressure: 0.7Mpa |
7 | Water consumption: 10 Liters/min | 8 | Air consumption: 2000 Liters/min |
9 | Manufacturing speed: 10-35mould/min | 10 | Power: 3-N AC220V±15V 60HZ |
11 | Heating motor power: 60KW | 12 | Main motor power: 5.5KW |
13 | Feeding motor power: 2.2KW | 14 | Rewinding motor power: 0.37KW |
15 | Weight: 4500kg | 16 | Main machine: 3300*1650*2250(mm) |

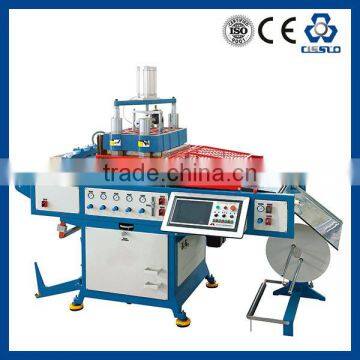

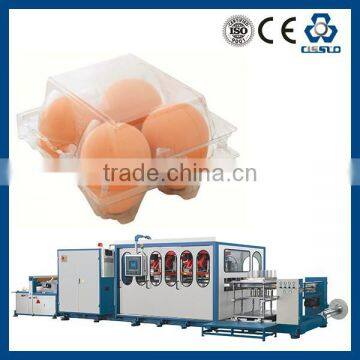

4. Machine show of Egg Box Production Line
CissCo Machinery has been trying to enable customers to maximize the benefits with professional serivces such as:
- 24 hours services;
- Overseas installation;
- Free operation training and technology formula transfer;
- Old machine update;
- Spare parts and maintenance with reasonable cost price.
CissCo Machinery is a fast forward professional supplier of complete plastic equipments and systems. At CissCo, we design, engineer and manufacture customized PLASTIC EXTRUSION LINES. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
