Home > Products > FOAMING & THERMOFORMING > PS Foaming Fast Food Box Extrusion Line With High quality
PS Foaming Fast Food Box Extrusion Line With High quality
- 20 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Application: | Other, PS Foaming Fast Food Box Extrusion Line With High quality | Plastic Processed: | Other, PS Foaming Fast Food Box Extrusion Line With High quality |
Screw Design: | Double-screw | Automatic Grade: | Auto | Place of Origin: | Shanghai, China |
Brand Name: | PS Foaming Fast Food Box Extrusion Line With High quality | Model Number: | PS Foaming Fast Food Box Extrusion Line With High quality | Voltage: | 380V |
Power(W): | 650Kw | Dimension(L*W*H): | 53*4.5*3.5 | Weight: | 50 Tons |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PS Foaming Fast Food Box Extrusion Line With High quality
I. List of PS Foaming Fast Food Box Extrusion Line With High quality
No. | Name and type |
1 | HLSJPS-100/130 high foaming polystyrene sheet extruder |
2 | HLRCH-1300/1420 forming and in-line cutting line |
3 | HLFS-130 die-cutting plastic recycle machine |
II. Main technical parameters of PS Foaming Fast Food Box Extrusion Line With High quality
1. HLSJPS-100/130 high foaming polystyrene sheet extruder unit
o Capacity: 250~310kg/h
o Sheet thickness: 1.5mm~6mm(adjustable)
o Expansion rate: 11~30
o Drawing speed: 5~40m/min
o Mounted capacity: 250KW
o Center height:1000mm
o Mounting size: 33m (L) ×4.5m (W) ×3m (H)
o Compressed air: 0.4~0.6m3/min 0.7Mpa
o Cooling water: 13m3/h,≥0.2Mpa
o Weight:18ton
2. HLRCH-1300/1420 Auto Forming and in-line cutting line
o Forming area(max): 1270mm×1420mm
o Max forming depth: 127mm
o Max forming speed: 30 cycles/min
o Max forming force: 60t
o Max. trim area: 127mm(W)×500mm(L)
o Max. Trim speed: 130 cycles/min
o Mounted capacity: 400KW
o Mounting size: 20m(L)×4.5m(W)×3.5m(H)
o Weight: 25tons

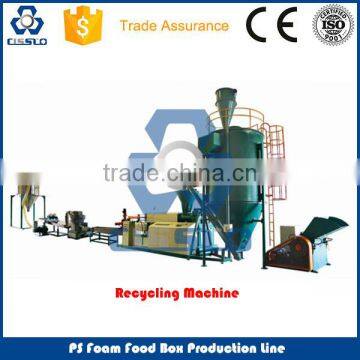

3. HLFS-130 Die-cutting recycle machine group
o Capacity: 100~180kg/h
o L/D of first screw: 18.5/1; Second L/D:11/1;
o Mounted capacity: 90KW;
o Pressure of cooling water: ≥0.2Mpa
o Volume of cooling water: 2T/H
o Mounting size: 17m×3.5m×5.5m;
o Weight: 8T
III. Pictures of PS Foaming Fast Food Box Extrusion Line With High quality
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
About Us: CISSCO MACHINERY CO., LTD
Cissco Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 10 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Our Service
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our clients factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
