Plastic nylon pet broom monofilament yarn extrusion machine
- 50 Set / Sets per Month
- Shanghai
You May Like
Product Details
Condition | New | Application | Other, Nylon pet broom monofilament machine | |
Plastic Processed | Other, PET | Screw Design | Single-screw | |
Automatic Grade | auto | Place of Origin | Shanghai, China | |
Brand Name | Nylon pet broom monofilament machine | Model Number | Nylon pet broom monofilament machine | |
Voltage | 3*380V+N+PE | Power(W) | whole line: 90kw, Operation power: 54kw | |
Dimension(L*W*H) | 25L 4W 3.5H | Weight | Nylon pet broom monofilament machine | |
Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Nylon pet broom monofilament machine
1. Work condition of whole line
Warehouse/Workshop (Provided by customer) | Construction of foundations, construction works, earthworks, and wall works; Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools; Dimension (M*M*M): 25(L)×4(W)×3.5(H); |
Power supply | Installed power of whole line: 90kw, Operation power: 54kw Supply voltage: 3*380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ+-2% |
Wire/cables/water hose: | Wires/cables: From power supply to control cabinet of this production line and all electrical cables from control cabinet to each machine; Water hose: Supply water to machines and pools; |
2. Scope of supply brush monofilament extrusion line
No. | Name | Qty. |
1 | SYL-L90×30-580 Extruder | 1set |

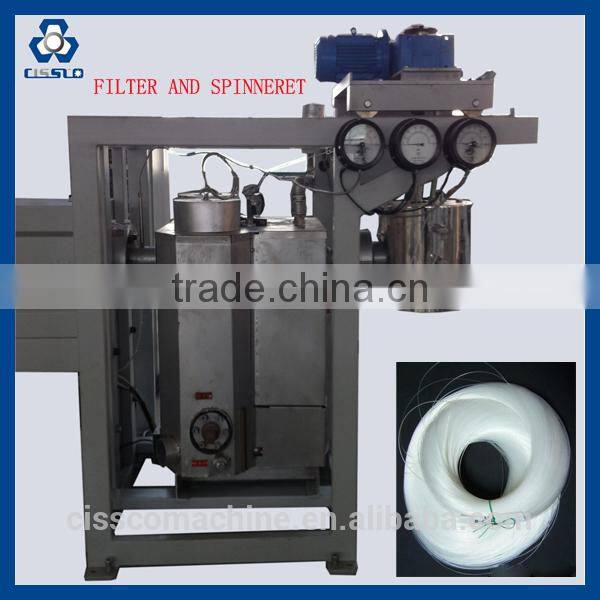

2 | Filter, Mould and Melt pump | 1set |

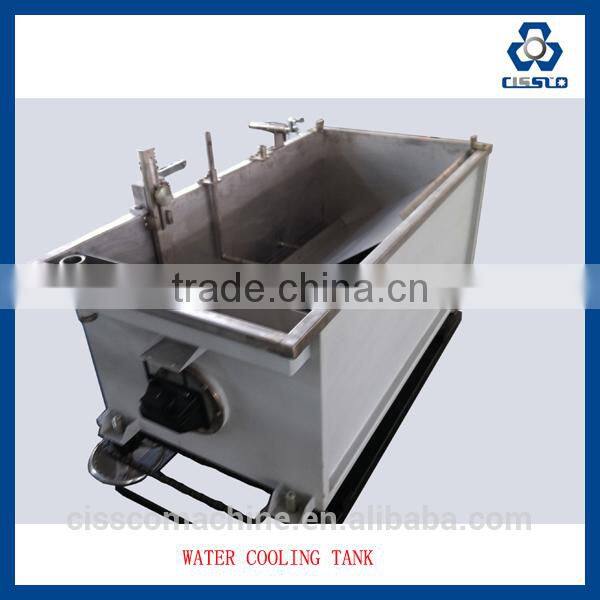

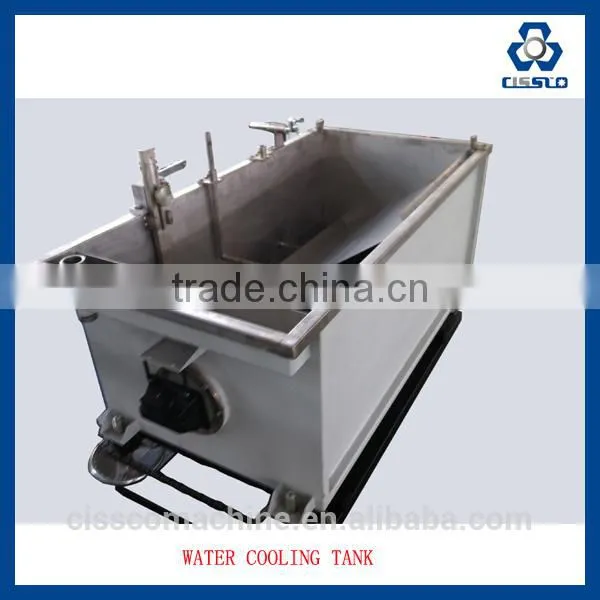

3 | Cooling water tank | 1set |
4 | Seven rollers take-off unit A | 1set |
5 | Hot water tank | 1set |
6 | Seven rollers take-off unit B | 1set |
7 | Oil equipment and winder of waster monofilament | 1set |
8 | Winding unit | 1set |
9 | Setting oven | 1set |
|
|
3. Technical specifications of monofilament extrusion line
1.SYL-L90×30-580 Extruder
1.1 Capacity: Max. 160kg/hr
1.2 Material: PET virgin pellets
1.3 Diameter of monofilament: 0.10-4mm
1.4 Motor:
1.4.1 Type: AC motor
1.4.2 Power: 45kw
1.4.3 Brand: Siemens Beide(China)
1.5 Gear box:
1.5.1 Type: 225, hard tooth surface
1.5.2 Brand: Jiangsu Changzhou
1.6 Screw:
1.6.1 Diameter: 90mm
1.6.2 L/D: 30
1.6.3 Material: 38CrMoALA
1.6.4 Rotation speed: <80rpm
1.6.5 Brand: Zhejiang zhoushan
1.7 Barrel:
1.7.1 Material: 38CrMoALA
1.7.2 Heating mode: Cast aluminum ring
4. Pictures of brush monofilament extrusion machine
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
CissCo Machinery is a fast forward professional supplier of complete plastic equipments and systems. At CissCo, we design, engineer and manufacture customized PLASTIC EXTRUSION LINES. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world. we are using the high technology from European. From the pictures, you can find the similarity between our machine and theirs.
