Home > Products > FILAMENT & FLAT YARN > ABS filament extrusion line
ABS filament extrusion line
- 10 Set / Sets per Month
- shanghai
- T/T
Product Details
| Condition: | New | Application: | Other, ABS ROD EXTRUSION, 3D PRINTER FILAMENT | Plastic Processed: | ABS |
| Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Shanghai, China |
| Brand Name: | ABS filament extrusion line | Model Number: | ABS filament extrusion line | Voltage: | AC 380V / 50Hz |
| Power(W): | ≤30.0kW | Dimension(L*W*H): | 13.5m x 2.5m x 3.0m | Weight: | 20TONS |
| Certification: | ISO/FDIS 14159 2001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

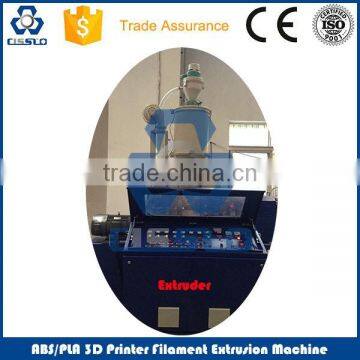

ABS MONOFILAMENT EXTRUSION MACHINERY
1. Brief introduction of ABS FILAMENT EXTRUSION MACHINERY
Rod extrusion line consists of single screw extruder, immersion bath type water tank, haul-off, cutting machine etc,
its control system consists of intelligent temperature control table,imported electrical components and converter. Main feature of this line: stable extrusion, good plasticizing effect, high degree of control precision, convenient operation etc.
2. ABS MONOFILAMENT EXTRUSION MACHINERY components
Item. | Equipment Name | Model | QTY/set |
1-1 | Automatic loader | JLD-30 | 1 |
1-2 | Hopper dryer | GZ-108 | 1 |
2-1 | ABS Single screw extruder | BDSJ-40/28 | 1 |
2-2 | PLA Single screw | SJ-40/28 | 1 |
3 | High pressure volumetric type mold | BM-40 | 1 |
4 | Immersion bath type cooling water tank | CW-6000 | 1 |
5 | High speed synchronous strap puller (servo driving) | TKB-400T | 1 |
6 | High speed double-position automatic winding machine (variable-frequency driving) | SPS-500T | 1 |

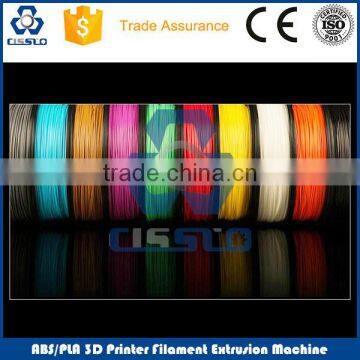

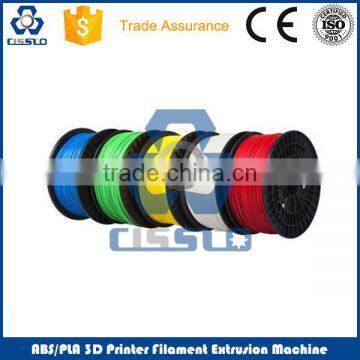

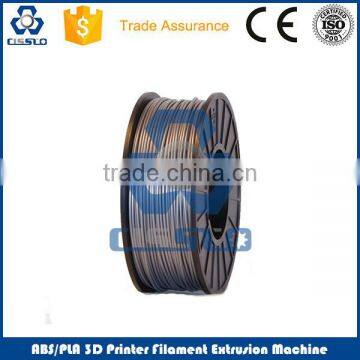

3. ABS MONOFILAMENT EXTRUSION MACHINERY Final Product
4. ABS MONOFILAMENT EXTRUSION MACHINERY Application
5. Our Location: Shanghai, China
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
