Large Output Wpc Wall Panel Extrusion Line/decorative Wpc Wall Panels
US$ 35,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SCREW EXTRUSION MACHIE
Model Number:
SCREW EXTRUSION MACHIE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Separating Type AutoloaderNegotiableMOQ: 1 Set -
Good Quality Single Screw, Barrel & AccessoriesUS$ 1,000 - 50,000MOQ: 1 Set
-
Parallel Twin Screw and Barrel for ExtruderUS$ 1 - 150,000MOQ: 1 Set
-
Bimetallic Screw and BarrelUS$ 1,000 - 100,000MOQ: 1 Unit
-
PE/PVC PIPE WINDERUS$ 1 - 24,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
SCREW EXTRUSION MACHIE
Model Number
SCREW EXTRUSION MACHIE
Panel Material
Metal
Type
Other, XPS Sandwich Panels, Granulating Production Line
Specifications
large output wpc wall panel extrusion line/decorative wpc wall panels1CE
2high output,wide application
3PET,PS,ABS,PA,PC,
Specifications of large output wpc wall panel extrusion line/decorative wpc wall panels :

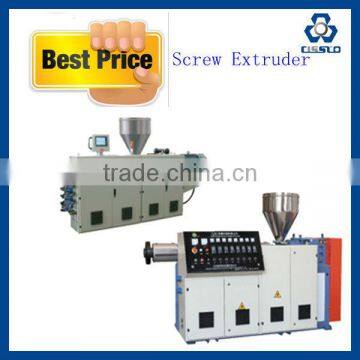

It is suitable for the recycling and pelletizing of raw materials such as PP,PET,PE,PS,ABS,PA,PVC,PC,POM,EVA,PMMA by replacing different screw and barrel mostly.and the pelletizing of the raw materials with different colors.The gearbox is high torque designingd which attains the functions of low noise and stable operation.The surface of the screw and barrel has been treated so that the screw and barrel are rearable.they can have a very good plstification and mixing effect and the production capacity is high.The extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output can be more stable and the pellets are more dense.
| Main Technical Specification | |||||
| Model | Screw Dia.(mm) | L/D | Screw Speed Max.(rpm) | Power Of Main Motor(kw) | Output(kg/h) |
| CSE1-45 | 45 | 33 | 20-120 | 5.5-11 | 110-150 |
| CSE1-60 | 60 | 33 | 20-120 | 15-37 | 200-300 |
| CSE1-75 | 75 | 33 | 20-95 | 37-75 | 320-450 |
| CSE1-90 | 90 | 33 | 20-80 | 55-110 | 450-600 |
| CSE1-120 | 120 | 33 | 20-80 | 110-160 | 750-1000 |
| CSE1-150 | 150 | 33 | 20-70 | 180-250 | 950-1300 |
Prcocess flow of the large output wpc wall panel extrusion line/decorative wpc wall panels :
Vacuum feeding machine---- Dry hopper ----- Single screw extruder----- Mould ----- Vacuum tank ----- Water tank----Haul off ---- Cutting machine-Stacker
For the reason of quite different of the waste material processed and different requirements,please contact us for further informations and configurations when you need! Thanks!
