Specifications
1.spectral analysis of metals2.Warranty: 1 year
3.Delivery time: About 10 days after payment received
4.MOQ:1 pc
5. CE&ISO
A & E Lab.
A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer,
PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker,
See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!
The information of our instruments:
Warranty : 1 year / 3 years / 2 years
Certifications: CE&ISO
Delivery time: Within 10 days after received your payment. (AAS: Within one month)
MOQ: 1 unit
Payment term: T/T advance, paypal, western union, Moneygram.
Cooperation type: Distribute / Neutral packing / OEM / ODM.
Key Features:
* Single beam spectrophotometer with highly stable optics.
* Extremely versatile with full functionality
from 190 to 1100nm.
* Variable spectral bandwidth 0.5, 1, 2, 4,5nm.
* 2 or 8 cell holder available.
* 6 inches LCD display & integrated user interface.
* USB port for data storage.
* ISO/CE Certificate passed.
* A & E Lab PC software included as standard.
* Extensive range of accessories available.
Applications:

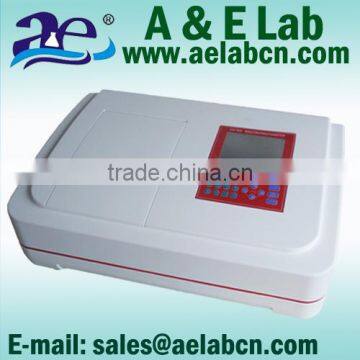

AE-S80 series are large scanning uv vis spectrophotometer which combine best features of single beam
spectrophotometer. They vary in bandwidth, wavelength accuracy and dimension. They provide excellent performance
for measurements in the range of 190nm to 1100nm. All spectrophotometers features high performance sealed optics
mounted on a stable machined platform.
AE-S80 series is ideal for quality control, general research, pharmaceutical, biochemical and clinical laboratory
applications. Such as: quantitative analyses, kinetics, wavelength scanning, multiple components and DNA/Protein
analysis,etc.
Ordering Information:
Order Code |
Description |
AE-S80-MS |
Large screen, single bean, 4 cell holder, Bandwith: 0.5/1.0/2.0/4.0/5.0nm, with PC software. |
AE-S80-1S |
Large screen, single beam, 4 cell holder, Bandwith: 1nm, with PC software. |
AE-S80-2S |
Large screen, single beam, 4 cell holder, Bandwith: 1.8nm, with PC software. |
Technical Specifications:
Wavelength |
Photometric |
||
Wavelength Range |
190-1100nm |
Photometric Accuracy |
±0.3%T |
Wavelength Accuracy |
±0.3nm |
Photometric Repeatability |
0.2%T |
Wavelength Repeatability |
0.2nm |
Photometric Display Range |
0-200%T, -0.3-3.0A, 0-9999C |
Band Width |
1nm/1.8nm/0.5,1,2,4,5nm |
Stability |
0.002A/h @ 500nm |
Others |
Baseline Flatness |
±0.001A |
|
Data Output Port |
USB |
Noise |
±0.001A |
Printer Port |
Parallel Port |
Stray Light |
≤0.05%T @220nm, 360nm |
Optical System |
Single Beam (1200 lines/mm grating) |
||
Display |
LCD (320X240 Dots ) |
||
Detector |
Silicon Photodiode |
||
Lamps |
Deuterium & Tungsten Halogen Lamp |
||
Power Supply |
AC 220V/50Hz, 110V/60Hz. |
||
Packing Size & Weight |
860x660x465mm & 35kg |
||
