Specifications
PCR1.MOQ: 1 PC
2.Warranty: 1 year
3.Delivery Time: within 5-7 days after received your payment.
A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater,Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker,See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!

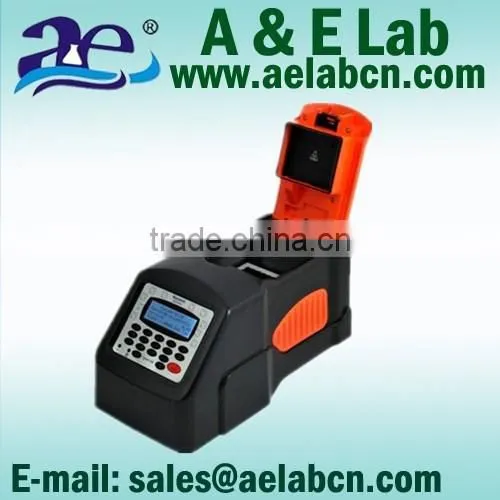

PCR-Cycler
The Cycler 003 thermal cycler is reliable with excellent ramping rate (maximum over 5 ºC/sec) and most economic
personal PCR.
The Cycler 003 is designed to be compact and portable. It is only 600 cm2 footprint and weighs 6.8 Kg.
The self-adjusted heated lid (100ºC to 115ºC), designed to reduce the risk of sample evaporation, can be enabled or
disabled. The heated lid only comes on if the block is set above 35°C.
The powerful programming logic makes it user friendly. Several common used methods have been created as
templates for users, this helps with even the most complicated protocol program set ups. The on-screen displayed
ramping rate helps users to monitor the working condition of the machine.
Two major sample blocks formats can be chosen.
1. The small personal block: 25 X 0.2 ml and 20 X 0.5 ml
2. The half-full-size blocks: 48 X 0.2 ml and 30 X 0.5 ml. This design allows users to have more flexibility.
Technical Specification
Temperature |
|
Temperature range |
4°C to 99°C |
Block uniformity |
± 0.5°C |
Temperature accuracy |
± 0.5°C |
|
End of program cooling below ambient |
YES |
Heating/Cooling Rate |
|
Maximum heating rate |
4.5°C/sec |
Maximum cooling rate |
3°C/sec |
Heated Lid |
|
Heated lid temperature |
100°C to 115°C |
Heated lid enable/disable |
YES |
Programming |
|
Program naming using alpha keys |
YES |
Program password protection |
YES |
Number of programs (3 step) |
37 |
Dimensions |
|
Height |
185 mm |
Width |
185 mm |
Length |
330 mm |
Weight |
6.8 Kg |
Power |
|
AC INPUT |
120V or 230V with Switch |
Ordering Information
Part Number |
Product Description |
Cyl-003-1 |
Cycler 003 thermal cycler for 25 x 0.2ml microtubes, 120V / 230V |
Cyl-003-2 |
Cycler 003 thermal cycler for 20 x 0.5ml microtubes, 120V / 230V |
Cyl-003-3 |
Cycler 003 thermal cycler for 48 x 0.2ml microtubes, 120V / 230V |
Cyl-003-4 |
Cycler 003 thermal cycler for 30 x 0.5ml microtubes, 120V / 230V |
Cyl-01 |
Cycler 003 Block for 25 x 0.2ml microtubes |
Cyl-02 |
Cycler 003 Block for 20 x 0.5ml microtubes |
Cyl-03 |
Cycler 003 Block for 48 x 0.2ml microtubes |
Cyl-04 |
Cycler 003 Block for 30 x 0.5ml microtubes |
