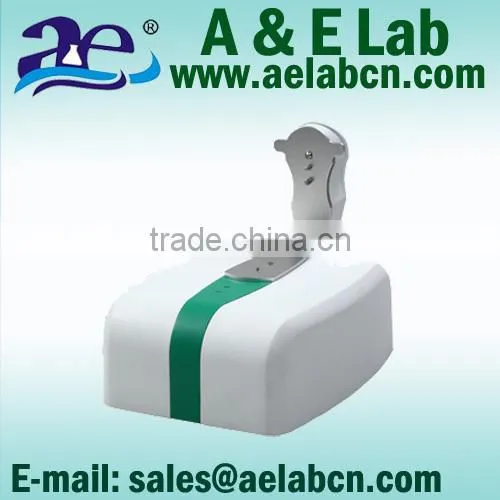

Help CenterNANO-100 Micro-Spectrometer Measures DNA, RNA (A260) and Protein (A280)
Related Products
-
New Design uv Vis Double Beam Spectrophotometer With CE CertificateNegotiableMOQ: 1 Unit -
Professional Uv/vis Spectrophotometer China for WholesalesNegotiableMOQ: 1 Unit
-
Multifunctional Uv-vis Spectrophotometer With High QualityNegotiableMOQ: 1 Unit
-
Micro Volume SpectrophotometerNegotiableMOQ: 1 Unit
-
NANO-200 Micro Volume SpectrophotometerNegotiableMOQ: 1 Unit
Micro-Spectrophotometer
A & E Lab
Main Products: Atomic Absorption Spectrometer (AAS), Fluorescence Spectrometer, Bio-Spectrophotometer, UV Vis Spectrophotometer, Visible Spectrophotometer, Flame Photometer, Whiteness Meter, Turbidity Meter, Colorimeter, Gloss Meter, Tintometer, Automatic Polarimeter, Auto Melting Point Apparatus, Automatic Refractometer, Abbe Refractometer, PH/DDS/TDS Meter, Incubator, shaker, Hotplate, Mixer, PCR, Oven, etc.
Welcome to inquiry us!
Introduction:
The AE-NANO100 is a spectrophotometer that measures 0.5-2ul samples with high accuracy and reproducibility. Sample pedestals apply surface tension to make the sample column, so that hold samples in the pedestal. During measurement, the light goes through the sample column, and then passes to CCD detector by fiber optic cable. In addition, the AE-NANO100 has the capability to measure highly concentrated samples without dilution (100X higher concentration than the samples measured by a standard cuvette).
Features:
² Direct, easy measurements in less than 5 seconds:
just pipette & wipe.
² Full spectral output.
² Measures DNA, RNA (A260) and Protein (A280),
concentrations and sample purity (260/280ratio).
² Large concentration range without dilutions.
² User-friendly software that includes Custom Methods and data export capabilities.
² Low-cost operation--no plates or other consumables
Technical Specifications:
Model |
NANO-100 |
Wavelength Range |
200~850 nm |
Minimum Sample Size |
0.5~2.0ul |
Path Length |
0.2mm (For high concentration measwrement) 1.0mm (For ordinary) |
Light Source |
Xenon flash lamp |
Detector Type |
3864-element linear silicon CCD array |
Wavelength Accuracy |
1nm |
Spectral Resolution |
≤ 3 nm (FWHM at Hg 546 nm) |
Absorbance Precision |
0.003 Abs |
Absorbance Accuracy |
1% (at 0.76 at 350 nm) |
Absorbance Range |
0.02 - 75 (10 mm equivalent) |
Measurement Time |
< 5s |
Dimensions (W x D x H)mm |
200 x 262 x 154 |
Weight |
2.5kg |
Sample Pedestal Material |
Aluminum alloy and Quartz fiber |
Operating Voltage |
12V DC |
Operating Power Consumption |
12 - 18 W |
Standby Power Consumption |
5W |
Software Compatibility |
Windows 7, Windows XP |
