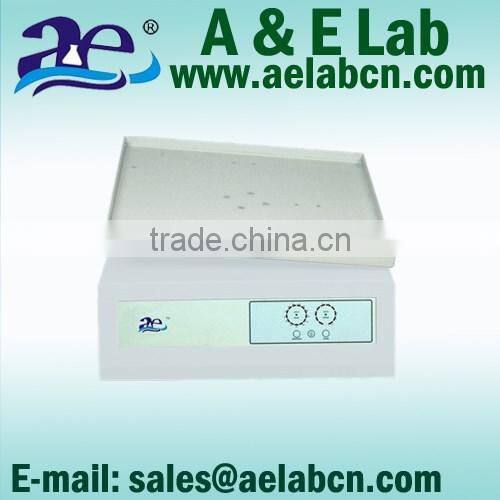

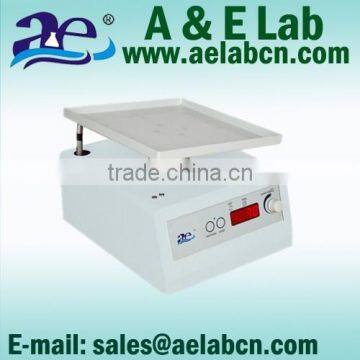

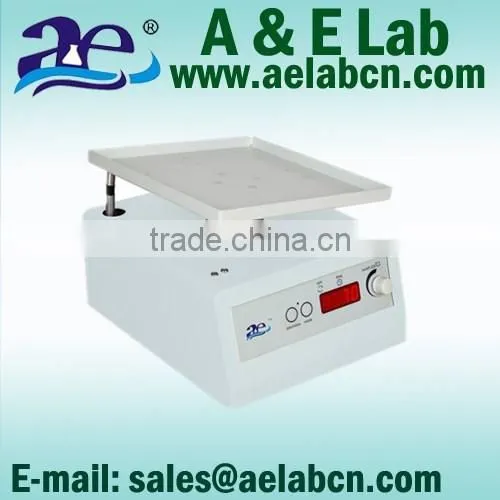

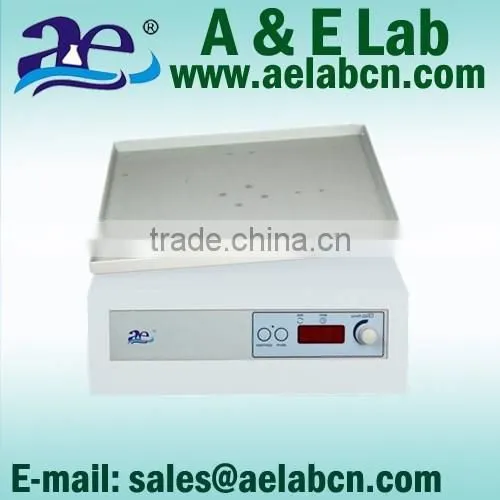

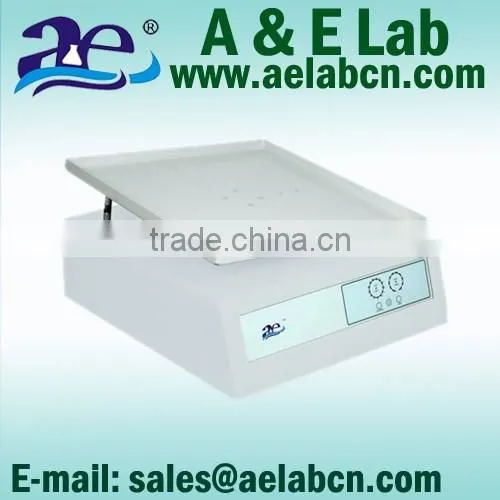

Lab Scale 3D Gyration Rocker With Widely Used In DNA Extractions, Staining and Destaining procedures
A & E Lab.
A & E Lab Hot Selling includes: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer,
PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker,
See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!
Application:
The 3D gyration rockers are designed to generate in three dimension rocking motion with smooth and full mixing
action. The rockers are ideal for low foaming agitating, and widely used in DNA extractions, staining and de-staining procedures.
The tilted angle can be adjusted manually from 3 to 12 degree.
With a large platform, the rockers can accommodate large vessels such as culture flasks, petri dishes etc.
The non-slip matt on the tray can prevent vessels slipping away during agitation.
Rockers are often used in conjunction with incubators and environmental chambers and can be used in temperatures up to 40°C and humidity up to 80%.
There are four models for this type of the rocker: All of them are microprocessor controlled.
The digital model (AGRL-2/6) provides digital timer with up to 9 hours setting and speed control in 1rpm increment
The (AGRL-1/5) model provides 2-hours timers (in 10 minute integral) and 10 steps speed control without digital
display as shown in AMOS.
The AGRL-2/6 model provides a good safety feature: when the motor stalled or overload, the unit will stop, beep
and show error message in the LED display.
Technical Specification:
Type | Lab Scale | Mini Size | ||
Model | AGRL-1 | AGRL-2 | AGRM-5 | AGRM-6 |
Speed Range (rpm) | 5 to 70 | 35 to 70 | ||
Rocking Type | 3D gyration | |||
Platform Dimensions | 355x355mm | 235x235mm | ||
Tilting Angle (degree) | 3-12 | |||
Angle Adjustable | YES | |||
Timer (min) | 120 | Digital 540 | 120 | digital, 540 |
Speed Control Mode | 10 integral selection | digital in 1 rpm increment | 10 integral selection | digital in 1 rpm increment |
Maximum Load (KG) | 10 | |||
Dimensions (mm, WXLXH) | 360x420x210 | 240x300x210 | ||
Operation Temp. Range (°C ) | +4 to +40 | |||
Maximum Operation Humidity | 80% | |||
Net Weight (KG) | 10 | 6 | ||
Power Supply | 230V, 50Hz, 50W | |||
