1.lab scale see-saw rockers2.Warranty: 3 years
3.Delivery time: About 10 days after received your payment
4.MOQ:1pc
5. CE
A & E Lab.
Welcome to inquire us!
The information of our instruments:
Warranty : 1 year / 3 years / 2 years
Certifications: CE&ISO
Delivery time: Within 10 days after received your payment.
MOQ: 1 unit
Payment term: T/T advance, paypal, western union, Moneygram.
Cooperation type: Distribute / Neutral packing / OEM / ODM.
Introduction:
The ASRL3 and ASRL4 use a see-saw motion to create wave-like mixing process. The mixers are specially design for any flat vessels, such as culture flasks, Petri dishes etc., generating a gentle and full mixing action.
More platforms can be added to the rockers by adding stacking system to accommodate more samples.
There are two models for this type of the rocker: Both of them are microprocessor controlled. The digital model (ASRL4) provides digital timer with up to 9 hours setting and speed control in 1rpm increment.
The ASRL3 model provides 2-hours timers (in 10 minute integral) and 10 steps speed control without digital display as shown in MOS.
The ASRL4 model provides a good safety feature: when the motor stalled or overload,
the unit will stop, beep and show error message in the LED display.
Technical Specifications:
Model | ASRL3 | ASRL4 |
Speed Range (rpm) | 5 to 70 | |
Rocking Type | See-saw, wave | |
Platform Dimensions (mm, WXL) | 355x355 | |
Tilting Angle (degree) | 7 | |
Angle Adjustable | No, fixed at 7º | |
Timer (min) | 120 | Digital 540 |
Speed Control Mode | 10 integral selection | digital in 1 rpm increment |
Maximum Load (KG) | 10 | |
Dimensions (mm, WXLXH) | 360x420x180 | |
Operation Temp. Range (°C ) | +4 to +40 | |
Maximum Operation Humidity | 80% | |
Net Weight (KG) | 10 | |
Power Supply | 230V, 50Hz, 50W | |

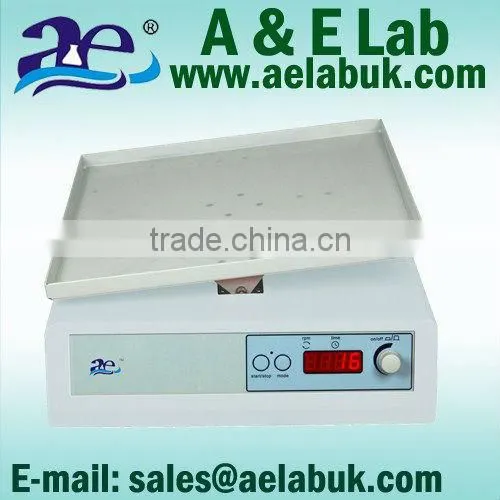

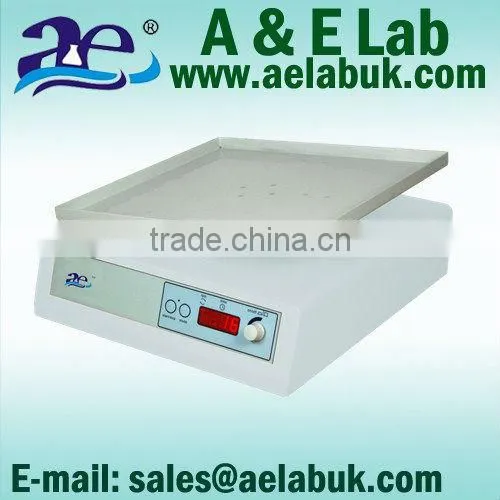

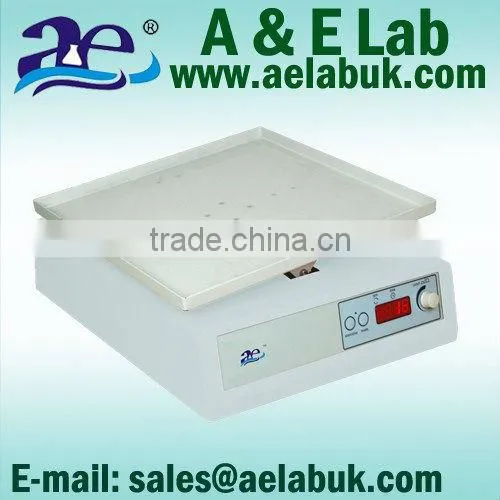

Product Picture:
