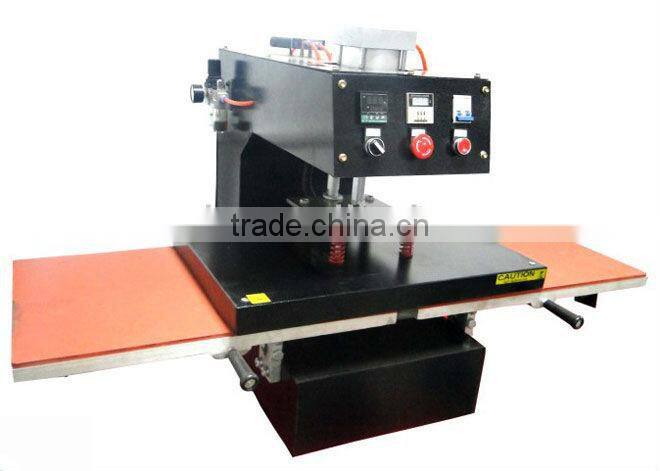

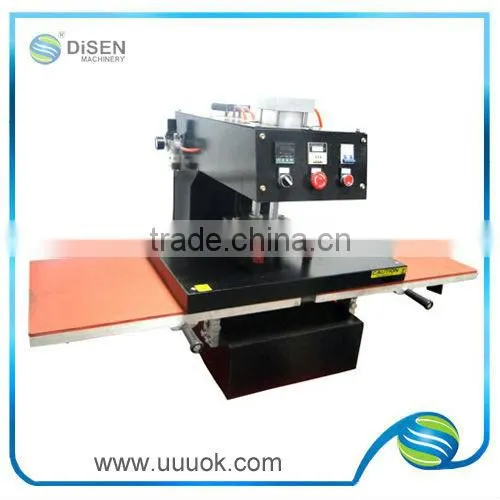

Pneumatic Double Stations Sublimation Heat Press Machine

Product video:     /watch?v=WhxZoKgmknk

Specifications

Pneumatic Heatpress Machine,pressure adjust easy,process automatically,laborsaving,heating evenly,fastly,good printing effect.

Voltage: 110v/220v/380v;

Power: 2kw/2.5kw/3kw/5kw

Plate Size: 38*38/40*60/50*60/60*80cm

PackingDemension:115*62*68cm/135*62*68cm/135*72*68cm/135*115*70cm;

Time:0--999s;

Temperature Range:0--399°C;

Weight: 120kgs--200kgs

Intruduction:

1. Adopted push-draw style double working tables,labor-saving, easy to operate,print quickly;

2. All-electronic control the temperature and time, automatic/manual installation, process automatically,return to its original state after completed .

3. heating evenly, heat transfer area is big and can be used for big billboard.

4. Pneumatic pressure can be accurately adjusted so that the effect of hot foil products more perfect.

5. Can be used in t-shirt, metal boards, diamonds as well as mouse mats;

Automatic machine, can customised size:38*38cm ,40*50cm,and 40*60 cm,60*80cm ,have the big pressure ,can work fast ,1 years warranty.

Pneumatic double stations sublimation heat press machine

Pneumatic double stations sublimation heat press machine

Operation Procedures:

Taking the white cotton cloth as an example
A. Mirror print your picture on light sublimation paper with normal ink
B. Hold up the press handle, open the heat board
C. Instruction light will be on
D. Switch power on
E. Adjust the temperature controller on the left side.(The three buttons indicate ones place, tens place, hundreds place from left to right side),press + or – to adjust appropriate heating temperature-180°C, time needed approx. 10 minutes to reach 180°C;(Heating temperatures depends on materials, please request for the standard temperature information)
F. Adjust time controller on the right to the appropriate heating time 30 seconds(The heating time depends on the materials)
G. The machine will keep the constant temperature status when reaching the setting temperature
H. Put the cloth on the silica gel board holder, put the picture facing the cloth for heat transferring,press down the heat board and the timer counts automatically. Note:Too heavy pressure may cause the handle transformed. Must adjust the pressure ahead of operation.
I. While time up,the buzzer warns automatically. Swift the power off, hold up the press handle,take out the cloth and tear out the picture paper right away

Taking the black cotton cloth as an example:
A. Print your picture on dark sublimation printing paper with normal ink
B. Hold up the press handle, open the heat board
C. Instruction light will be on
D. Switch power on
E. Adjust the temperature controller on the left side to adjust appropriate heating temperature-180°C, time needed approx. 8 minutes to reach 180°C.

For metal material board, the heating temperature should be approx. 170-200°C,the heating time around 60 seconds;For ceramic board, the heating temperature should be approx. 200-220°C,the heating time around 60 seconds; For the fabric, the heating temperature should be approx. 120-140°C,the heating time around 5-10 seconds. Please take the below information for example:

Accessories

(1)The Printer. Choose any normal Ink Jet photo printer and Epson series printer is recommended.
(2)To achieve the best quality of the photo printing, the following printer setting for your reference:
a.Choose the “Best Photo” and the “Photo Quality Ink Jet Paper” under “Main” as shown in figure 1.
b.Click “Advanced” under “Main” to achieve more setting as shown in figure 2.
c.Choose “Mirror Image” under “ Page Layout” as shown in figure 3 while printing photo for ceramic board and metal board, shell board and imitative ceramic necklace etc.

(3)The sublimation ink. Make sure to pull out the color soft plug on the top of the ink cartridges before putting them into the printer. The sublimation ink is easy to dry and better to furnish with one printer until the ink use up.
(4)Ink and printer maintenance.
a.Choose “ Maintenance” under the “Property” of the printer to make maintenance for the printer as shown in figure 4.

Warranty and Maintenance:

1,One-year guarantee.
2,Pressure: Adjust pressure screw clockwise to increase the pressure, counter clockwise to decrease the pressure
3,Time: Check and adjust the position of the jiggle switch in the rear machine case if the buzzer not warn or keep warning when time is out.
4,If press the pressure handle,the handle would be spring back automatically, please adjust the adjusting screw downward. After finished the printing, the handle may be too heavy to hold up, please adjust the adjusting screw upward.

Notice:
1. The machine must be connected with the ground wire!
2. Do not touch the heat board while heating!
3. Do not touch the heat board once finish working as time is needed to cool down.
4. Please keep children away from the machine!
5. Please use the heat insulation glove to pick the finished goods!
