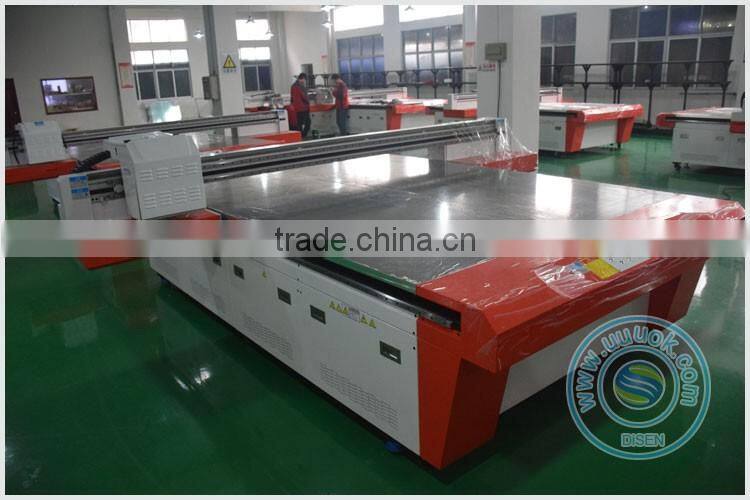

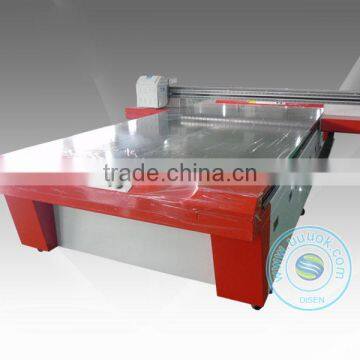

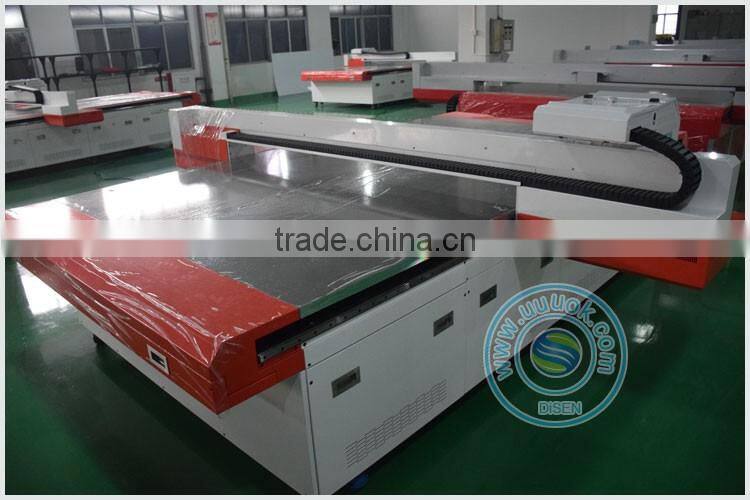

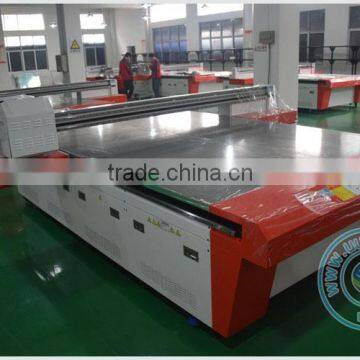

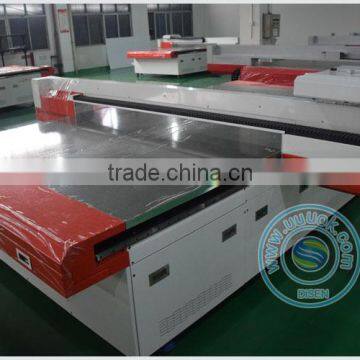

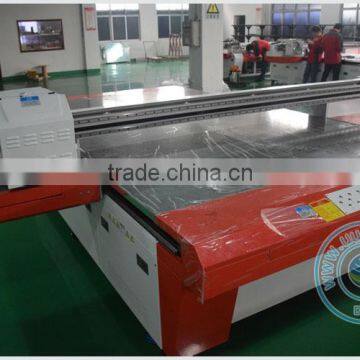

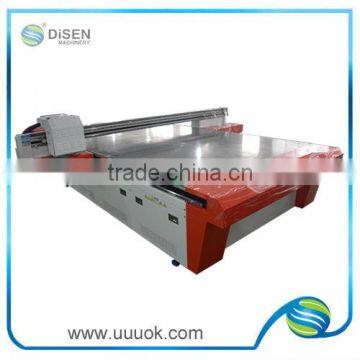

Automatic Positioning UV2030 Multifunction 4+2 Dongzhi Nozzle uv Led Flatbed Printer

Print Size

The laggest working area: 2000mm*3000mm

Print Head(s)

CET4-636 hole*2  6PL

Printing Colors

UV Curable Ink,4-7 Colors for Choice

Printing Height

100mm

Print Weight

Non-destructive Accuracy weight:100KG

Print Speed

Production Mode:300x1200dpi 36 sq/hr

Superior Quality Mode:300x1800dpi 18msq/hr

High Resolution Mode:300x2400dpi 9m sq/hr

Ink System

UV Curable Ink(C,M,Y,K,LC,LM+W)

Automatic Cleaning System

Automatic Cleaning Function(Intelligent positive pressure and Negative pressure)

Print Head Head Technology

Piezo inkjet printing ink

Ink Cartridge

Continuous Ink offering/Capacity: 2000ml

Power Supply

220V/3500W,50HZ/60HZ

Applied Materials

Ceramic, Acrylic, Wood, Craft, Painting, Glass, Crystal,Mental,Leather,PVC,ABS etc.

Curing System

LED Light Curing (Mercury for choice)

Color Management

Admitted to International ICC standard,with Curve Line Function

Image Format

TIFF,JPEG,Postscript 3,EPS,PDF etc

Operating Platform

Vacuum Adsorption Platform (Alloy Aluminum Honecomb)

Operating Environment

Temperature:20-50℃ ,Humidity:40-60%,Dust-free room

USB Connector

USB 2.0 Connector

Guide Rail

Square Linear Guide Rail

RIP Software Output

Main Top

N/W.

1900KG

Equipment Size:

3521*3860*1160(mm)

Features

1, multi-function, a multi-purpose machine, UV flexible application mode

2, automatic lift platform, easy to operate, reduce the bit error

3, printing mode optional mist or spray line, spraying line speed, mist lifelike drawing and put an end to the bars

4, three sections of the squeegee and peristaltic pump device to prevent nozzle clogging and extend nozzle life

5, automatic nozzle cleaning and moisturizing means, ensure that the ink fluency prevent nozzle clogging

6, can be set to any position of the print origin, easy to learn

7, quiet linear guide rail, high accuracy and stable performance, through the European Union CE certification, quality and more secure

8, printing equipment platform has the scale, easy to measure visual display printed material

9, the use of imported LED-UV lamp, cold light source, no radiation, low power consumption, environmental protection and energy saving

10, double servo motor, control more stable performance

11, adsorption platform, intelligent vacuum suction device can be easily blown smokable material pick

12, the printing equipment highly customizable models based on the actual situation

13, the print head intelligent collision avoidance sensor system, the mechanical life of the nozzle escort

14, automatic altimeter, fast and accurate positioning
