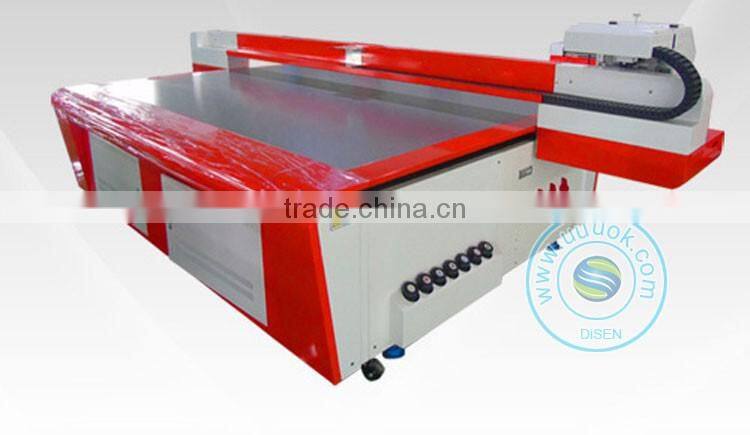

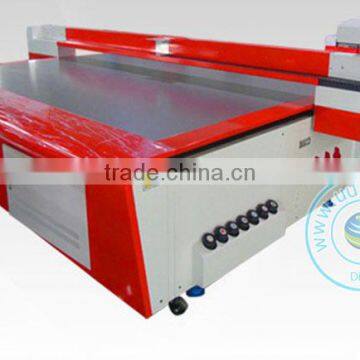

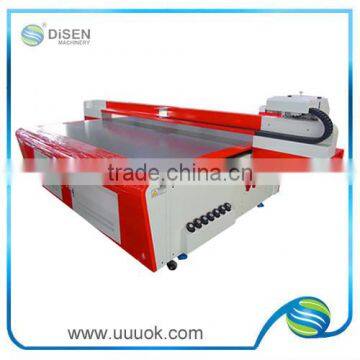

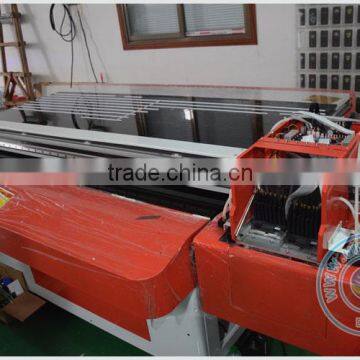

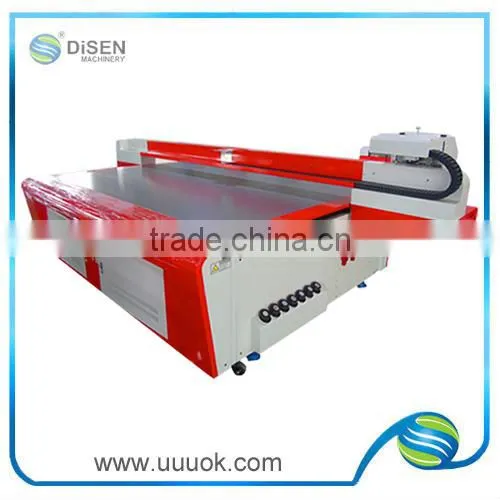

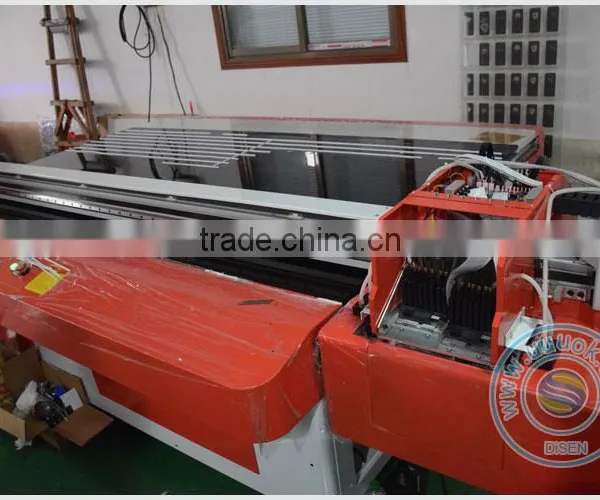

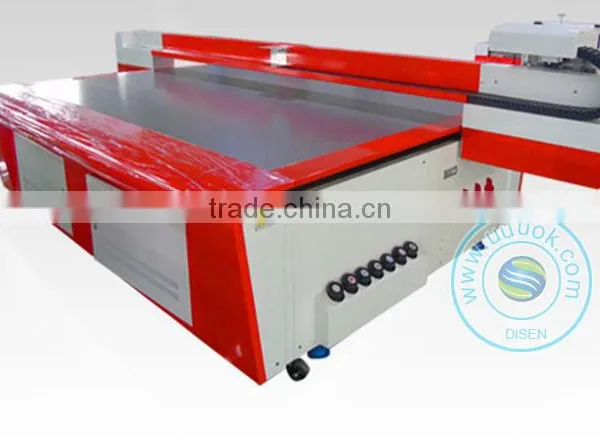

Adsorption Platform Automatic Cleaning Function UV2513 uv Led Printer

Model

DSP-AC2513

USB Connector

High speed USB

Printing domension

2500*1300mm(L*W)

Color Contorl

International ICC standard

Print head(s)

1-2(optional)

Net Weight

1400KG

Print Height

100mm

RIP software

Ultra color software

Print Colors

C.M.Y.K+W or  C.M.Y.K*2

Curing system

LED Light Curing System

Print speed

CMYK+W                              CMYK*2

2pass, 19m²/hr                    2pass, 38m²/hr

4pass, 10m²/hr                    4pass,20m²/hr

6pass, 6m²/hr                      6pass,12m²/hr

8pass, 5.5m²/hr                   8pass,11m²/hr

16pass,3.3m²/hr                  16pass,6.6m²/hr

Specification

Print size: 2500mm * 1300mm

Printhead: DX5 or TX800 head

Print colors: two E-pson head (4 + 1 white color or dual-color)

Print height: 10CM

Print Weight: precision nondestructive weight 100KG

Print speed: Production mode: 720dpi 6-8m2 / hr quality mode: 1440dpi 4-6m2 / hr

Ink system: UV inks ( Blue Yellow Black Red White)

Automatic cleaning system: automatic cleaning function

Nozzle technology: Piezo ink jet printing

Cartridge: CISS / Capacity 2000ml

Power supply voltage, power: 220V / 3600W (UV lamp 2000W)

Material handling: ceramics, acrylic, wood, crafts, painting, glass, crystal, metal, leather, PVC, ABS, etc.

Drying system: UV lamp

Color Control: ICC in line with international standards, with the curve

Power Requirements: 220V

Working platform: adsorption platform

Interface: USB 2.0 Universal Serial Interface

Features

1, multi-function, a multi-purpose machine, UV flexible application mode

2, print mode optional mist or spray line, spraying line speed, mist lifelike drawing and put an end to the bars

3, automatic nozzle cleaning and moisturizing means, ensure that the ink fluency prevent nozzle clogging

4, can be set to any position of the print origin, easy to learn

5, mute linear guide rail, high accuracy and stable performance, through the European Union CE certification, quality and more secure
