Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer

Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer thumbnail-1
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer thumbnail-2
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer thumbnail-3
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer thumbnail-4
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer thumbnail-5
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer thumbnail-6
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer photo-1
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer photo-2
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer photo-3
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer photo-4
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer photo-5
Roll and Flatbed Dual-functional UV2513 Dongzhi Print Head Roll to Roll uv Printer photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Disen Science Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen Hongkong Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Guangdong, China
Brand Name Disen
Model Number DSP-UV2513-ROLL
Usage Card Printer, Cloths Printer, Label Printer, Paper Printer, Other, Card Printer, Cloths Printer, Label Printer, Paper Printer, UV printer
Automatic Grade Automatic
Voltage 220V
Gross Power 3500W
Dimensions(L*W*H) 4401*1877*1388(mm)
Weight 1500kg
Certification CE Certification
After-sales Service Provided Engineers available to service machinery overseas

Roll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printer

Product Description

Printing Size

Flatbed: 2500mm*1300mm    Roll:Width 1800mm

Print Head(s)

CET4 636*2  6PL

Printing Colors

UV Curable Ink,4-7 Colors for Choice

Printing Height

100mm

Printing Weight

Non-destrutive Precision Weight 200KG

Print Speed

Production Mode:300x1200dpi 36 sq/hr

High Quality Mode:300x1800dpi 18m sq/hr

High Resolution Mode e:300x2400dpi 9m sq/hr

Ink System

UV Curable Ink (C,M,Y,K,LM,LC))

Automatic Cleaning System

Automatic Cleaning Function(Intelligent positive pressure and Negative pressure)

Print Head(s) Technology

Piezo Inkjet Printing Ink

Ink Cartridge

Continuous Ink offering/Capacity: 2000ml

Power Supply

220V/3500W,50HZ/60HZ

Applied Materials

Ceramic, Acrylic, Wood, Craft, Painting, Glass, Mental,Crystal,Leather,PVC,ABS etc.

Curing System

LED Light Curing or Mercury Light for Choice.

Color Management

Admitted to International ICC Standard, with Curve Line Function.

Image Format

TIFF,JPEG,Postscript 3,EPS,PDF etc

Operating Platform

Vacuum Adsorption Platform (Alloy Aluminum Honecomb)

USB USB Connector

USB 2.0 Connector

Operating Environment

Temperature:20-50℃ ,Humidity:40-60%,Dust-free room

Guide Rail

Square Linear Guide Rail

RIP Software Output

Ultraprint

N/W.

1500KG

Equipment Size:

4401*1877*1388(mm)

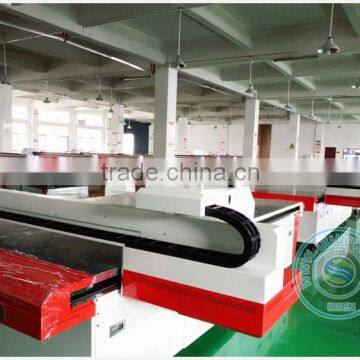

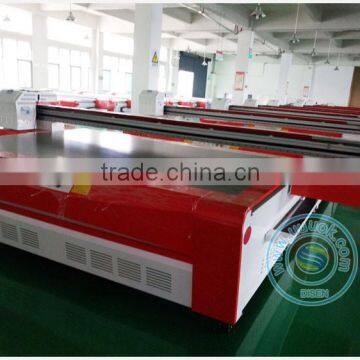

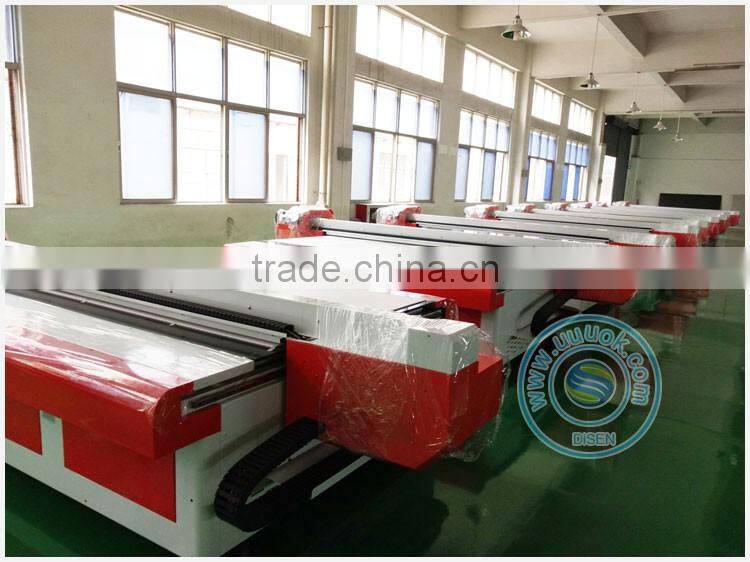

Detailed Images

Roll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printerRoll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printerRoll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printerRoll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printerRoll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printerRoll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printer



Product Effects

Roll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printerRoll and flatbed dual-functional UV2513 dongzhi print head roll to roll uv printer
