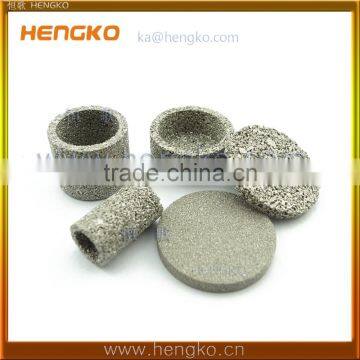

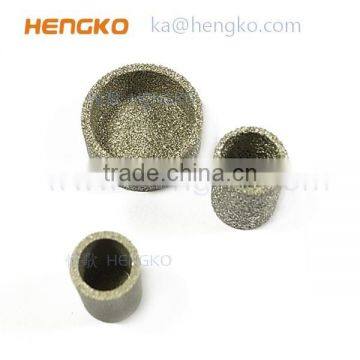

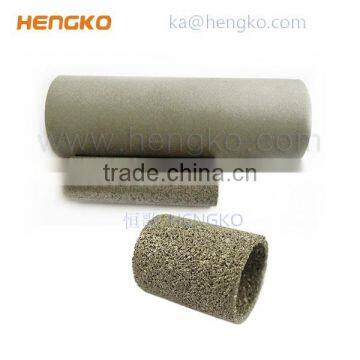

Titanium Water Filter for Water Treatment
1) 0.2μm - 300 microns
2) Use:
A. Solid gas separation
B.Muffler, silencer
C. Air purification
D.Filtering oil
E. Dedusting , Isolation dust , dustproof
F. Gas-oil dissociation
G. Gas liquid separation
H. Moistureproof
I. Heat insulation ,
J. Cooling
K. Uniform gas,well-distributed, diffuse gas or oil or heat
L. Breathable protection
M. Pharmaceutical , medicine
N. Chemical
O. Chemical fiber
P. Filtration for high temperature environment
Q. High pressure reverse wash filtering
R. Acid and alkali corrosion environment filtering
The diameter size : 2.6 mm to 5000 mm
The length or the thickness size: 1.0 mm to 5000 mm
Material |
specifications |
types |
|
stainless steel , SUS316L,304, Nickel , titanium , bronze,brass,copper |
filter element, filter cartridge, filter plate, filter tube, filter disc, cone filter, filter cap, filter cup , filter disk |
Sintered powder sintering mesh sinter nets |
Specifications
1.Porosity:28%-50%
2.Filtration Efficiency:98%
3.Compressive Strength:0.5-1.5Mpa/cm2
4.Shape:Tubular,Plate,Bar
1.Characteristic
Item Name |
Porous Titanium Filter |
|
Porosity |
28%-50% |
|
Aperture |
4μ-160μ |
|
Filtration precision |
0.2μm-100μm |
|
Filtration Efficiency |
98% filtration accuracy under:0.1 - 80um |
|
Compressive Strength |
0.5-1.5Mpa/cm2 |
|
Shape |
Disc,Squareness |
|
Specification(mm) |
Thickness |
0.5-20 |
Width |
Less than 250 |
|
Work environment |
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, gas, carbon dioxide gas environment |
|
2.Property
Filtering level |
Filtering precision Um |
Maximum Aperture Um |
Permeability m3/h.m2.kpa |
Thickness mm |
Compressive strength Mpa/cm2 |
T9 |
0.2 |
2.5 |
1.5 |
3 |
3.0 |
T8 |
0.5 |
4 |
3 |
3 |
3.0 |
T7 |
1 |
6 |
5 |
3 |
3.0 |
T6 |
2 |
10 |
15 |
3 |
3.0 |
T5 |
5 |
15 |
40 |
3 |
2.5 |
T4 |
10 |
30 |
120 |
3 |
2.5 |
T3 |
20 |
60 |
250 |
3 |
2.5 |
T2 |
30 |
100 |
500 |
3 |
2.5 |
T1 |
50 |
160 |
800 |
3 |
2.5 |
