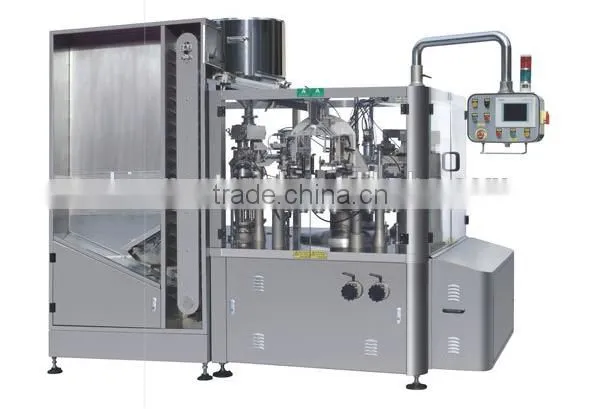

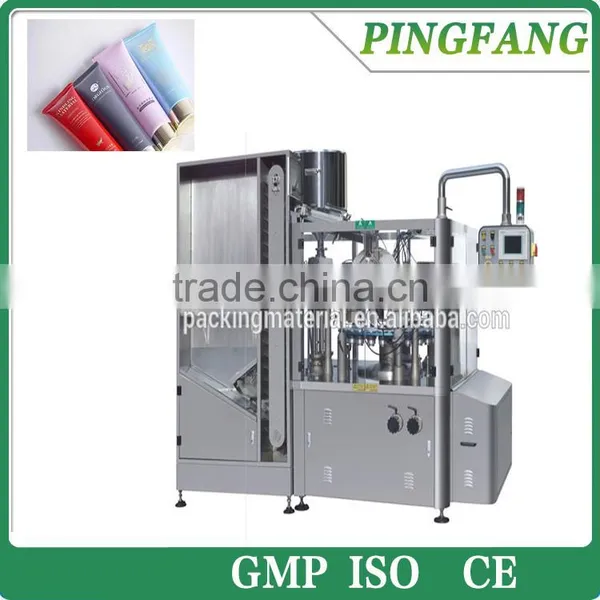

The newest RGF-160 aluminium tube filling and sealing machine
This machine is used for filling all kinds of cream and fluid materials into the soft plastic tubes, metal tubes and plastic- aluminum laminated tubes, sealing and cutting the end of the tubes, and pressing date or series numbers on the end. It is widely used in daily chemical, pharmaceutics, food, chemical industries, etc..
* Applicable to plastic composite tubes, aluminum plastic composite tubes and metal tubes (optional)
* Provided with 2 filling heads and a set of double-branch tube feeding system
* Adopts PLC control, automatically tube feeding and positioning
* Seals the tube firmly in a high efficiency
Operation speed | 160/min(max) |
Filling volume | 1-300ml |
Filling precision | ≤±0.5% |
Suitable tube length | 50-240mm |
Suitable tube diameter | 10-50mm |
Tube feeding device | Double-branch synchronous tube feeding box |
Optional | externally allocated refrigerator |
Optional | special-shaped sealing devices(wave type sealing device, arc sealing device, T-shaped punching hole sealing device, metal pipe folding and sealing device) |
Optional | jacket and barrel heat preservation device |
Optional | blending device inside the barrel |
Optional | Nitriding device before and after filling |
Optional | automatically controlled material feeding device(pump) |
Optional | finished tube conveyor |
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
