Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Factory Supply Centrifugal Vortex Emulsifying Machine, High Shear Mixer

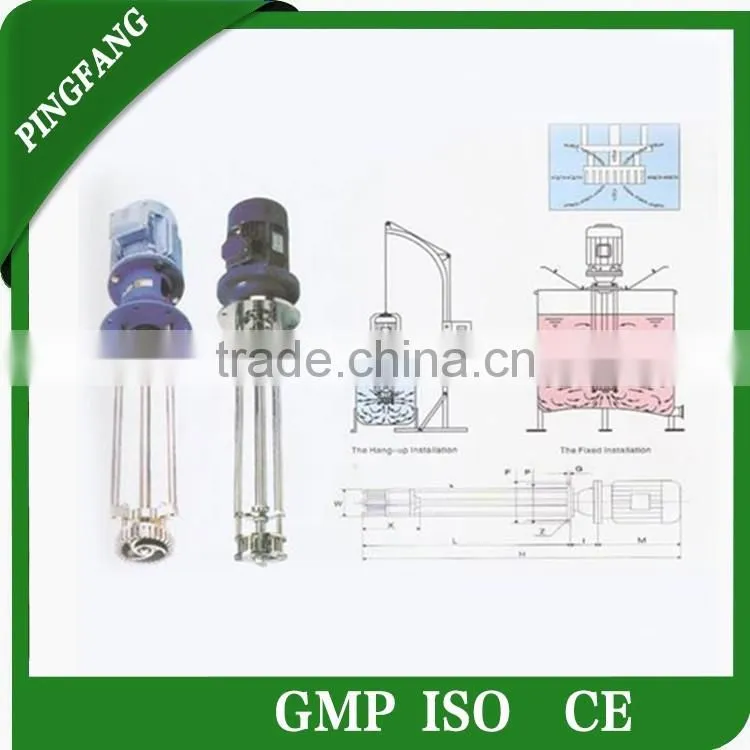

Factory Supply Centrifugal Vortex Emulsifying Machine, High Shear Mixer

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Agitator

Product Type:

Other, medicine, cosmetics

Contact Supplier Request Quote Chat Now

Huizhou Pingfang Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China(Mainland)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Agitator

Product Type Other, medicine, cosmetics

Application Viscous Fluid

Additional Capabilities Other, Mixing

Place of Origin Zhejiang, China

Brand Name PF

Model Number Centrifugal Vortex Emulsifying Machine

Max. Loading Capacity 20-2000L

Voltage 220V/380V

Power(W) 1.5-22kw

Certification ISO GMP

Warranty One Year, 1 year

After-sales Service Provided Engineers available to service machinery overseas

Factory Supply Centrifugal Vortex Emulsifying Machine, High Shear Mixer

Product Description

The machine working through the motor driving fast to rotate the principal axis and the principal rotates the emulsifying rotor. With the leading scrapers of the rotor, the material is inhaled into the emulsifying room through the above side and underside of the stator; by the work of the rotor scrapes and the narrow stator interface, the material is cut, smashed, homogenized and reaching the perfect finish; through the high-speeding centrifugal rotation of the scrapers, the material is discharged through the homogenizer stator room. Working based on his internal circulation, the machine could complete the ideal homogenizing and emulsifying process in the very short time.

Technical parameters

Power KW	Capability L	Rotation speed min/r	H	M	I	L	G	P	F	W	X	Z
1.5	20-100	1450/2840	970	300	80	590	10	180	210	140	150	11
3	50-200	1450/2840	1320	320	110	890	12	210	245	170	150	13
4	100-300	1450/2840	1425	335	140	950	14	210	245	180	200	13
5.5	150-600	1450/2840	1575	385	140	1050	15	245	280	190	200	15
7.5	200-800	1450/2840	1675	385	140	1150	15	245	280	205	210	15
11	300-1000	1450/2840	1800	490	160	1150	18	280	350	215	210	18
15	400-1300	1450/2840	1870	490	180	1200	25	280	350	225	260	18
18.5	500-1500	1450/2840	2000	540	180	1280	25	280	350	240	260	18
22	800-2000	1450/2840	2220	560	180	1480	25	280	350	255	300	20
