Best quality NF-20B Semi Automatic Aluminum Plastic Tube Filling Sealing Machine
- 10 Unit / Units per Month
- Shanghai port China(Mainland)
- T/T Credit Card
You May Like
-
KRZRJ Series Vacuum Emulsifying Blender for Cosmetic and Medicine
-
Factory Supply Centrifugal Vortex Emulsifying Machine, High Shear Mixer
-
Pipeline High-cutting Dispersal Vacuum Emulsifying Machine, Cosmetic Cream Mixing Machine
-
High Performance Automatic Tray-rotating Cosmetic Cream Filling Machine
-
JM Colloid Mill Machine, Food and Medicine Emulsifying Machine
-
GJJ Series High Pressure Vacuum Homogeneous Emulsifying Machine, Vaccum Mixer Homogenizer
Product Details
Condition | New | Application | Chemical, Food, Medical, Other, Chemical, Food, Medical, Filling machine | |
Packaging Type | Case | Packaging Material | Wood | |
Automatic Grade | Semi-Automatic | Driven Type | Electric | |
Voltage | 220V/380V | Power | 0.5KW | |
Place of Origin | Zhejiang, China | Brand Name | PF | |
Model Number | NF-20B | Dimension(L*W*H) | 730*550*1141mm | |
Weight | 100Kg | Certification | ISO CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

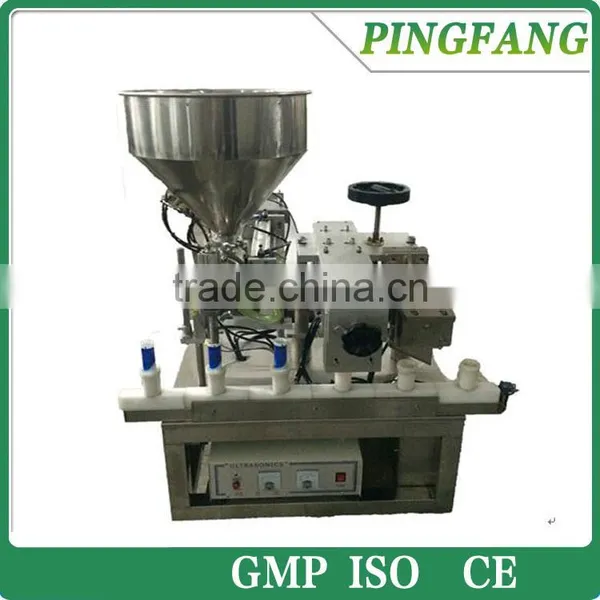

Best quality NF-20B Semi Automatic Aluminum Plastic Tube Filling Sealing Machine
1.Application:
The machine is used mainly to fill liquid/paste material into aluminum tube with fixed quantity
and seal the tube. It is widely used for the packing of products of pharmaceutical, foods,
air coloring and chemical industry
2. Features:
l Manual tube feeding
l Automatic filling
l Automatic lot No. print
l Automatic ultrasonic tube end sealing
l Automatic tube sealed end cutting
l Manual tube discharging
3. Technical Parameters:
Configuration Standard | Technical Parameters |
| |
Main Machine Landing Area | (about) 0.4m2 |
| |
Working Area | (about)4 m2 |
| |
Working Area | (about)2 m2 |
| |

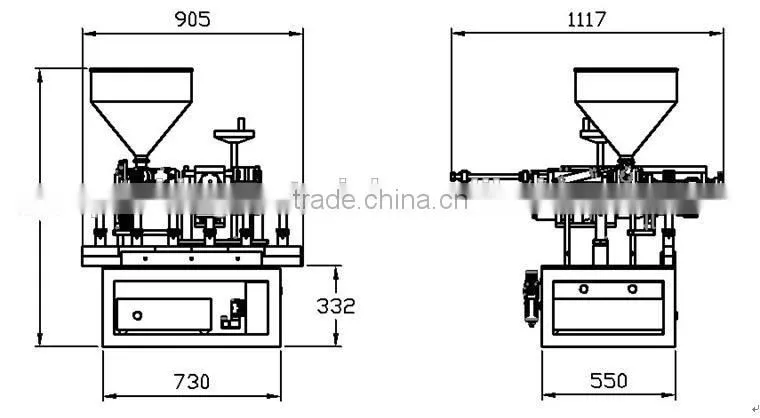

Whole Machine (L×W×H) | 730*550*1141mm |
| |
Weight | (about)100Kg |
| |
Case Body Material | 304 | ||
Frame Below Platform | Stainless Steel | ||
Case Body Shape | Square-shape | ||
Power Supply | 50Hz/220V 1P | ||
Main Motor | 0.5KW | ||
Jacket barrel heating power | 2 KW | ||
Jacket barrel blending power | 0.18 KW | ||
Operation Speed | 5-20/min/max | ||
Filling Range | 3-250ml | ||
Suitable Tube Length | 50-210mm | ||
Suitable Tube Diameter | 12-50mm | ||
Suitable Packing Material | Aluminum-plastic composite tube and Plastic composite tube | ||
Material contacting with filling material | 316L Stainless Steel | ||
Auto stamping device | Single side printing at the end of seal tube |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
Our Customers:
Our Certificates:
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
