Factory Supply High Quality Model TF Turbo Mill for Maize and Wheat
Summary
The turbo mill is a newly developed and most commonly used type in the world. Its turbo structure can solve the heat generation. So it can grind heat-sensitive materials besides usual materials. It has high efficient, with the fineness reaching 60 to 120 mesh.
Application
It’s widely used in such industries as pharmacy, chemicals, dyestuffs, paint, pesticide, food-stuffs, sugar, salt, plant fibre (such as Chinese medicine), carbon, science and research institutes.

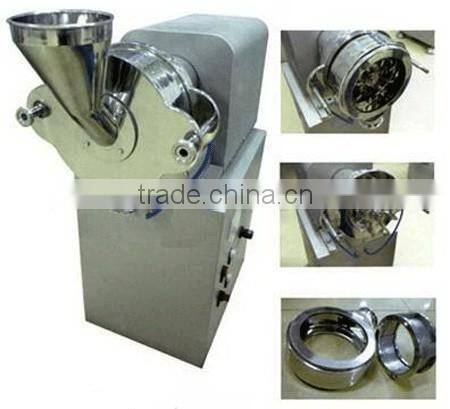

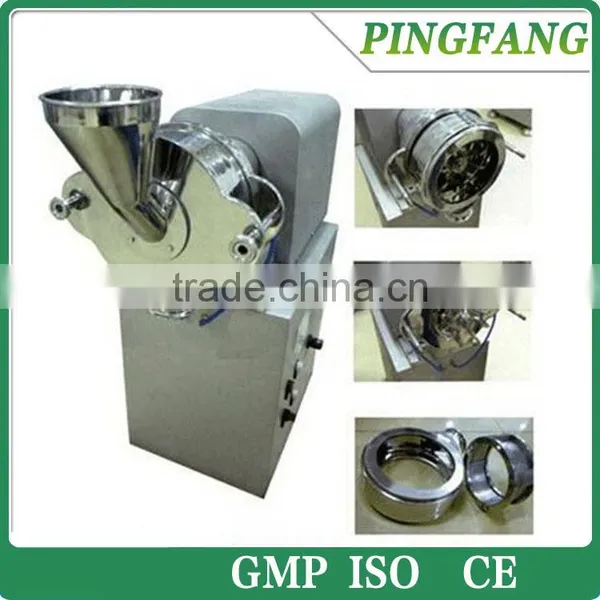

Structures and Working Principle
The whole machine is fully made of stainless steel, it has a good anti-erosive capability which could make the medicine production accord with the GMP standard. During the course of beating and grinding, it’s difficult to surmount the materials exothermic tacky and metamorphic phenomenon. The model TR-B turbo mill adopted the turbo’s high-speed revolving movement, thus produce a powerful airstream in the smashing room. The material inhaled into the smashing room by negative pressure, then between the lamina and module’s powerful whirlpool, pass through the impact ,cut , cut, rubbing, because the heat had spilled out by the mechanism and airflow the milling process can’t gather heat. The product fine powder outflow from the sieve to the bucket. The tail gas expelled to the sieve bag first, under the air-machine’s action; then outflow. To prevent jam the sieve bag we designed an quiver device on the bag. Sieving is very expedite, so you can realize the perfect operation without dust.
Features
1. Easy to dissemble and clean the cavity, feeding system stator, rotor.
2. The passive axis is sealed with cleaning compressive air.
3. The formation and melt is designed of arc, no dead angle and easy to clean.
4. Adopt turbo piece, it’s not easy to rise the temperature.
Model | TF-160B | TF-260B | TF-350B | TF-450B | ||
Rotor diameter(mm) | 160 | 260 | 350 | 450 | ||
Rev(rpm) | A,W | 2840 | 2890 | 2900 | 1440 | |
B,C | 5600 | 4500 | 3800 | 3000 | ||
Feed-in fineness(mesh) | ≤10-50 | ≤10-50 | ≤10-50 | ≤10-50 | ||
Production fineness(mesh) | 60-120 | |||||
Yawp(db) | <75 | |||||
Power(kw) | 3 | 4 | 5.5 | 7.5 | ||
Output (kg/h) | 20-50 | 40-80 | 50-150 | 80-260 | ||
Compressive air | B,C,W | Air pressure:0.4-0.6mpa consumption: 0.2m3/min | ||||
Weight(kg) | A,W | 75 | 100 | 150 | 200 | |
| B | 90 | 130 | 180 | 250 | |
| C | 120 | 160 | 200 | 350 | |
Outline dimension(mm) | A,W | 600*400*1000 | 650*500*1300 | 700*650*1500 | 900*700*1500 | |
B | 600*400*1000 | 650*500*1300 | 700*650*1500 | 900*700*1500 | ||
C | 350*300*1250 | 600*400*1500 | 600*400*1500 | 600*400*1500 | ||
Output(kg/h) | B,C | 30-75 | 60-120 | 80-200 | 120-390 | |
