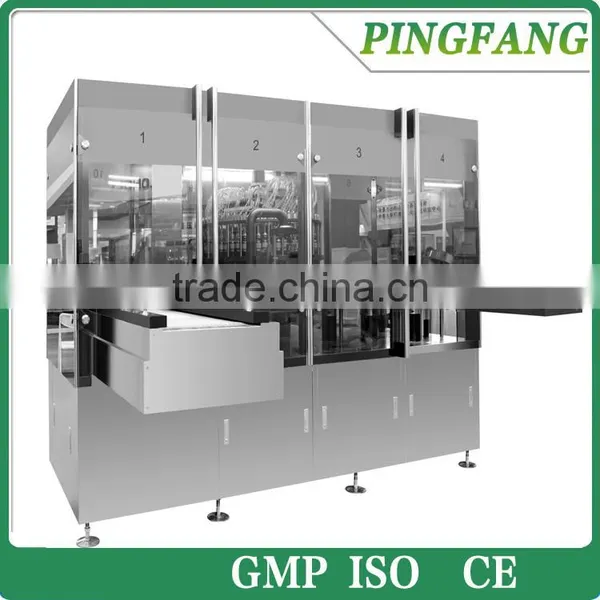

AIS Series Light Inspection Machine for ampoules
I. Features:
1.Design and manufacturing are carried out in accordance with GMP and GAMP.
2. Friendly operation interface, convenient maintenance and servicing, easy cleaning.
3. Molds are simple to replace. Fast replacement can be realized without using any tool.
4. The DD motor direct driving technology is adopted. With stable tracking, there is no interval error.
5. The clamp claw design is adopted for clamping and positioning of products, so that there is no dead zone during product inspection.
In addition, the clamping force, clamping speed, rotation speed, rotation number and rotation time can be adjusted precisely.
6.Nonconforming products can be eliminated by classification. QA personnel are available to carry out data analysis and statistics of production situations.
7. Standard configuration and optional configuration. Inspection items can be customized flexibly.
8. The inspection data and inspection process are synchronously recorded, conforming to FDA and GAMP5.
II. Technical diameters:
| Product Model | AIS-A60 | AIS-A90 |
| Applicable specifications for detecting | Ampoule | Ampoule |
| Number of bottles holders | 60 | 90 |
| Number of cameras | 15 | 15 |
| Applicalbe specifications (ml) | 1,2,5,10,20 | 1,2,5,10,20 |
| Detection speed(pcs/min) | 300-400 | 300-500 |
| Rotation speed(r/min) | 600-1200 | 600-1200 |
| Test items | Glass fragments, fibres, white particles, hairs, metal particles, liquid fill level, deficiency of bottle body and etc. | Glass fragments, fibres, white particles, hairs, metal particles, liquid fill level, deficiency of bottle body and etc. |
| Detecting precision(μ) | >=40 | >=40 |
| Power(kw) | 8 | 8.5 |
| Power Supply | 380V/50Hz | 380V/50Hz |
| Height of workbench(mm) | 900 (± 30) | 900 (± 30) |
| Overall dimensions(LxWxH) (mm) | 3,340x2,290x2,010 | 3,340x2,400x2,010 |
| Air pressure supply(mpa) | 0.45-0.7 | 0.45-0.7 |
| Noise(DB) | < 75 | < 75 |
| Weight(kg) | 3500 | 4000 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
Our Customers:
Our Certificates:
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
