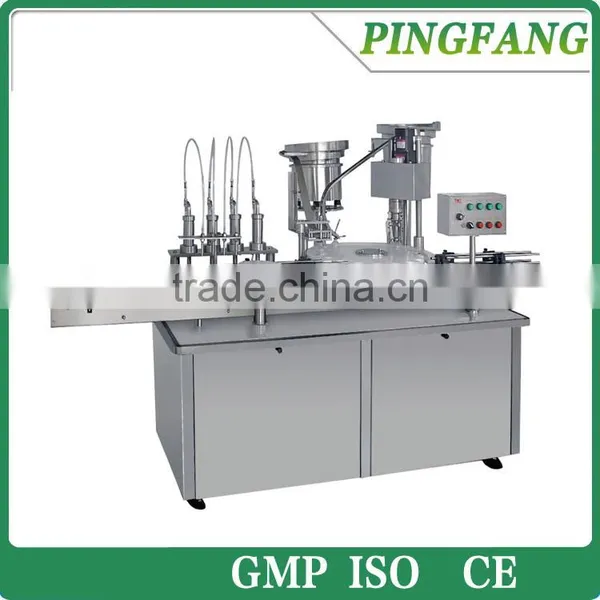

GSZ Automatic Filling-Capping (Cap Screwing) Machine
I. Itroduction:
Suitable for filling, stoppering, capping and sealing for glasses and plastic bottles from 30ml to 500ml.
It adopts the linear-type filling principle and applies the mechanical stoppering method to complete capping (cap screwing) process.
The machine is easy to operate and small in size whilst convenient to undergo maintenance. This machine can be connected with other machines into one compact producing line.
II. Technical Parameters:
| Production capacity(pcs/min) | 40-60 |
|---|---|
| Filling accuracy(%) | ± 2.5 |
| Number of stoppers | Single head |
| Rate of stoppering(%) | ≥ 98.0 |
| Rate of cap covering | ≥ 98.0 |
| Qualified rate of capping | ≥ 98.0 |
| Power supply | 380V 50Hz |
| Power(kw) | 1.5 |
| Weight(kg) | 650 |
| Overall dimensions(L × W × H)(mm) | 2,400 × 860 × 1,450 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
Our Customers:
Our Certificates:
Q1: What should I do to choose the best machine for us?
A: Tell me the size and shape of the tablet you need to press, and the capacity of the machine you need. We will suggest you the most suitable and economical one.
Q2: Does molds customized accepted,
A: Yes. Please send us your mould design, and the diameter you need, then we'll offer you the best price according to your requirement.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes. We'll send you the manual and operation video after you asking from us.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. We always attach great importance to quality control from raw material to the very end.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
