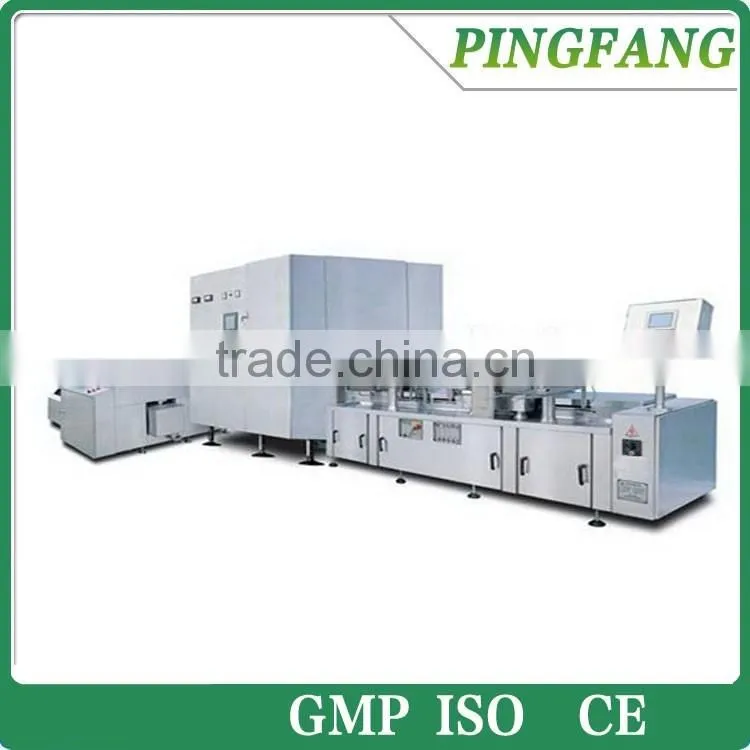

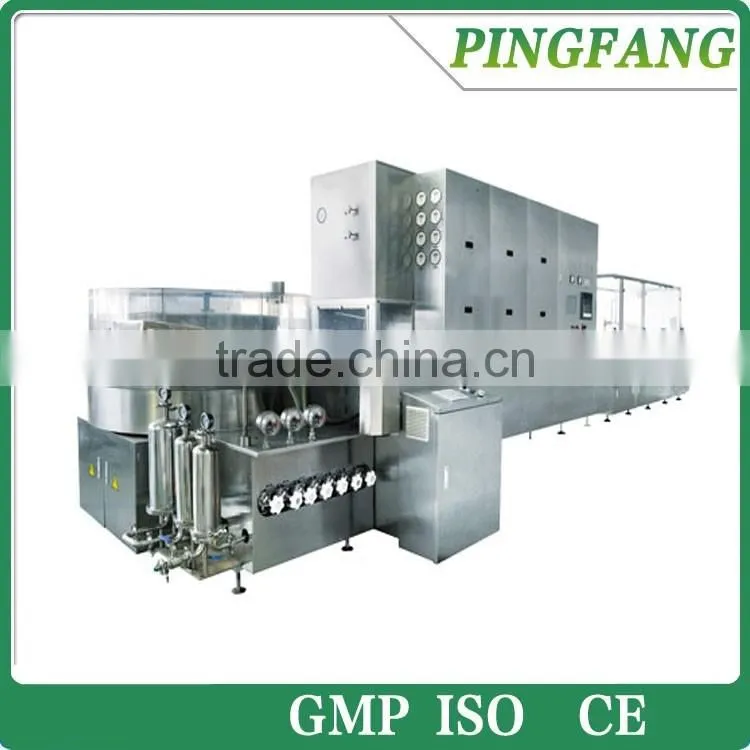

Oral Liquid Washing-Drying-Capping Production Line
I. Introduction:

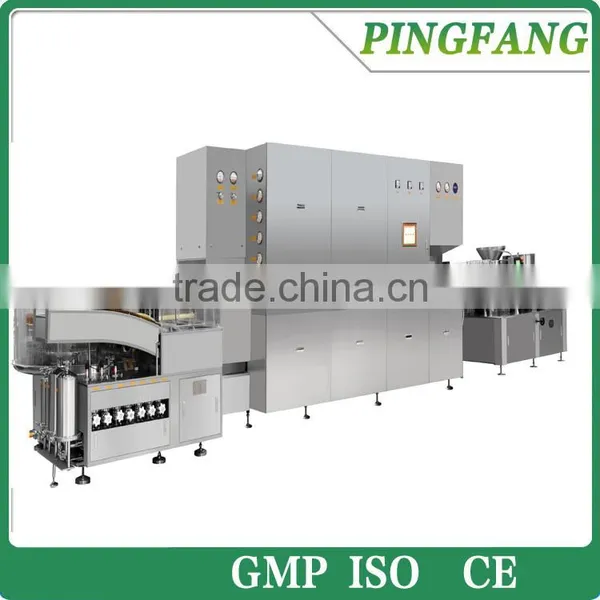

The oral liquid washing-drying-filling-capping production line is composed of the QCL series vertical ultrasonic bottle washing machine, ASMR tunnel hot air circulation sterilizing oven and YGZ series oral liquid filling-capping machine. Suitable for production of oral liquid bottles of 2-25ml, it can complete such procedures as water spray, ultrasonic washing, water filling, gas charging, drying, sterilizing, cooling, filling, capping, and etc.
II. Features:
1. The bottle washing machine adopts mechanical hands to clamp the bottles, suitable for bottles of various specifications.
2. The water-gas spray needles adopt the reciprocating tracking insertion method for bottle washing, featured by excellent washing effect and energy saving. It is also provided with a device that prevents the needle holder from shaking to enhance the accuracy of the spray needle's insertion into the bottle and reduce the occurrence of needle breakage.
3.The water and gas pipes are totally separable from the spray needles, so that cross contamination is avoided and GMP requirements are met.
4.The buffer block is installed before the bottle feeding screw of the bottle washing machine to protect the screw and reduce bottle breakage.
5. Bottle discharging is realized by the integral imported synchronous belt that is connected to the bottle pushing block to convey ampoules , a structure that ensures stable and reliable operation.
6. The oven adopts the infrared heating tube and stainless steel heating tube so that the heating temperature has good evenness.
7. The filling-capping machine can be equipped with the ceramic pump and stainless steel pump.
8. The filling-capping machine is provided with the functions of no filling in case of no bottle and no capping in case of no bottle.
III. Technical diameters:
| Appplicable specifications(ml) | 5-25 |
| Production capacity(pcs/min) | 350 |
| Filling accuracy(%) | ≤ ± 2.5 |
| Number of filling heads | 16 |
| Number of capping heads | 20 |
| Qualified rate of capping(%) | ≥ 99 |
| Gross weight(kg) | 7500 |
| Overall dimensions(mm) | 9920 × 2003 × 2150 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
Our Customers:
Our Certificates:
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
