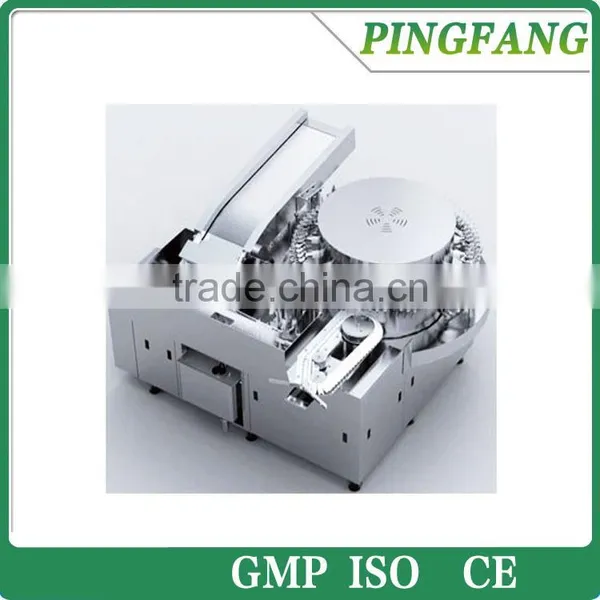

QCK(AQLC) Series Ampoule automatic Ultrasonic Washing Machine
1.Application:

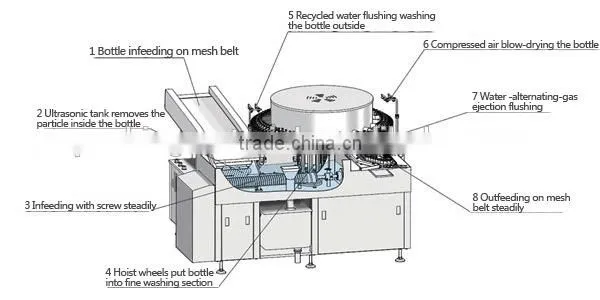

QCK(AQLC) series ultrasonic washing machine is specially designed for all kinds of ampoule bottle, vial and oral liquid bottle automatic cleaning. It adopts vertical rotary design and manipulator to clamp and turn over the bottle. The principle of ultrasonic cleaning and water-alternating-gas ejection flushing can meet the requirement of cleaning the bottle one by one.
2. Features:
This machine is vertical drum structure. It adopts manipulator clamping and turning over.And needle works in the way of reciprocating tracking. The principle of ultrasonic cleaning and water-alternating-gas ejection flushing can meet the requirement of cleaning the bottle one by one.
This machine is not only has the common advantage at home and abroad, but also has new breakthrough on improving capacity, mechanical properties, and humanized function.
(1)It reduces the height of the mesh belt.
(2)It uses one-piece PC sheet cover with mechanical automatic lifting instead of manual handling on turntable plexiglass cover.
(3)Needle adopts positioning flushing for dynamic cleaning to cleaning the dead corner.
(4)The station driving instead of the traditional cam mechanism.
(5)Restriction orifice design can be consistent with the flushing pressure.
(6)It meet the new GMP requirements of real-time monitoring of the water vapor pressure, bottle washing temperature and ultrasonic frequency.
3.Technical diameters:
| Model | AQLC40/1-20 | AQLC60/1-20 | AQLC80/1-20 | AQLC100/1-10 | AQLC120/1-5 | AQLC160/1-5 | |
|---|---|---|---|---|---|---|---|
| Production capacity | 1,2ml | 11000pcs/h | 16500 pcs/h | 24000 pcs/h | 28000 pcs/h | 32000 pcs/h | 41000 pcs/h |
| 5ml | 9000 pcs/h | 13500 pcs/h | 18000 pcs/h | 21000 pcs/h | 25000 pcs/h | 30000 pcs/h | |
| 10ml | 6000 pcs/h | 9000 pcs/h | 13000 pcs/h | 16000 pcs/h | 19000 pcs/h | ||
| 20ml | 3500 pcs/h | 5300 pcs/h | 8000 pcs/h | 10000 pcs/h | 12000 pcs/h | ||
| Qualified rate | ≤99% | ||||||
| Water consumption0.25Mpa 50℃ | 0.4m3/h | 0.6m3/h | 0.8m3/h | 1m3/h | 1.2m3/h | 1.6m3/h | |
| Gas consumption | 30m3/h | 45m3/h | 60m3/h | 75m3/h | 90m3/h | 120m3/h | |
| Power | 10.45kW | 11kW | |||||
| Weight | 1800kg | 1900kg | 2100kg | 2200kg | 2300kg | 3100kg | |
| Dimension(L*W*H)mm | 2225×2165×1400 | 2900×2630×1400 | |||||
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
Our Customers:
Our Certificates:
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
