AAG Series of Ampoule Wiredraw Filling Sealing Machine for Hot Selling

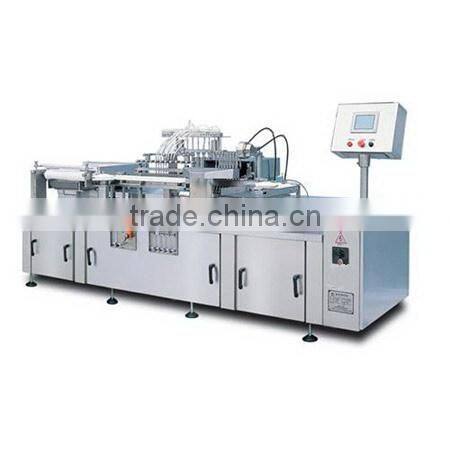

AAG Series of Ampoule Wiredraw Filling Sealing Machine for Hot Selling photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Medical, Other, Chemical, Medical, capping machine
Driven Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Medical, Other, Chemical, Medical, capping machine
Driven Type Electric
Automatic Grade Automatic
Voltage 220/380V
Power 0.35KW, 380V 50Hz
Packaging Type Other, CASE
Packaging Material Wood
Place of Origin Zhejiang, China
Brand Name PF
Model Number AAG
Dimension(L*W*H) 1500x930x1300mm
Weight 300kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

AAG Series of ampoule wiredraw filling sealing  machine for hot selling



Product Description

 1.Application:

The machine is a new generation of the ampoule drawing, filing and sealing combined equipment for injections. It adopts the rectangular feeding instead of the traditional ampoule feeding methods. In such case, the feeding is steady with no easy broken ampoule. A modern clutch is mouthed under the ampoule feed hopper. Therefore, the ampoule feeding can be stopped at any time while the machines is still running. So the ampoule lost can be reduced. In the part of stopping filling where changes electro-magnetic switch into mechanical switch. It is reliable and durable. Bottle reverse and bottle arranging stricture are used in the device of bottle outlet. It reduces the broken rate of the finished products of ampoules tremendously.
Main parts and fittings are made of stainless steel through precision casting. The accuracy and exchangeability of parts can be guaranteed. Our factory is the first one to produce pharmaceutical machinery through molding.




2. Technical diameters:



Model
Specification (ml)
Capacity (pcs/h)
Power (kw)
Fuel consumption
Combustion-supporting consumption
Outline dimension (LxWxH)mm
Machine weight (kg)
Power supply
Gas
M3/h
pressure
AAG4/1-2
1-2
6000-8000
0.35
1-2
0.08-0.1 MPa (LPG)
0.7-1m3/h Oxygen 0.1 MPa
1500x930x1300mm
W.(300) G.(350)
380V 50Hz
AAG4/5-10
5-10
5000-6000
0.55
1-2
1500x930x1300mm
W.(480) G.(530)
220v/380v 50Hz
AAG4/5-20
5-20
3600-6000
0.55
1-2
1920x980x1300mm
W.(500) G.(550)
220V/380V 50Hz
AAG6/1-2
1-2
9000-12000
0.55
2-3
1500x930x1300mm
W.(300) G.(350)
220V 50Hz
AAG6/5-10
5-10
6000-10000
0.75
2-3
1980x930x1300mm
W.(480) G. (530)
AAG6/5-20
5-20
6000-10000
0.75
2-3
1980x980x1300mm
W.(500) G. (550)
AAG8/1-2
1-2
9000-16000
0.75
3-5
1.5m3/h Oxygen
1920x930x1300mm
480
AAG8/5-10
5-10
10000-13500
1.5
3-5
2300x980x1300mm
550
AAG8/5-20
5-20
7000-13500
1.5
3-5
2300x980x1300mm
580









other machines



 AAG Series of ampoule wiredraw filling sealing machine for hot sellingAAG Series of ampoule wiredraw filling sealing machine for hot selling



product samples

 AAG Series of ampoule wiredraw filling sealing machine for hot sellingAAG Series of ampoule wiredraw filling sealing machine for hot selling





Packaging & Shipping



Packaging Details: Export-standard and sea-worthy wooden case as following photos.

Delivery time: 15-45 working days normally

Free service: normal spare parts and quick worn parts will be delivered together with the main machine.



AAG Series of ampoule wiredraw filling sealing machine for hot selling  AAG Series of ampoule wiredraw filling sealing machine for hot selling



Company Information

Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.

Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.

Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
