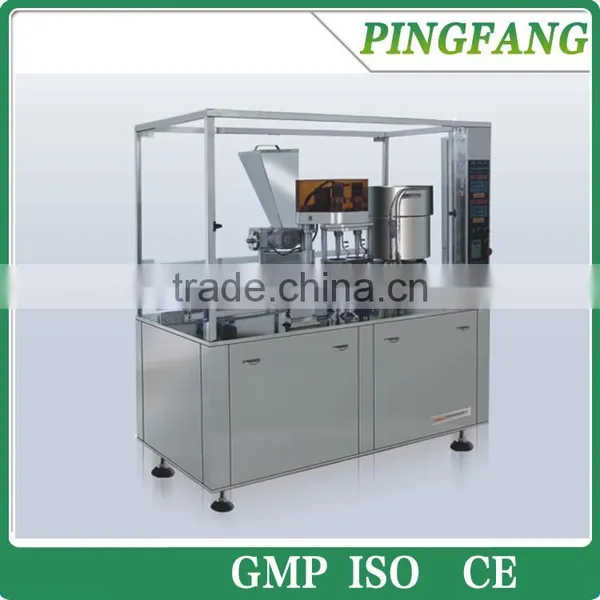

(FG-KFG2-A) KFG series injection vial powder filling machine for good selling
1. Application:
Fg-kfg2-a type powder filling machine is one kind of sterile powder filling machine which our company developed initially. Its volume is small, same direction in bottle inlet and bottle outlet. The filling and stoppering is conducted in the same graduator. With its compact structure, it is welcomed by customers with small production capacity and small room size. We have large number of customers home and abroad using this kind of powder filling machine.
2. Features:
Small volume,suitable for pharmaceutical companies with small production capacity and small room size.
Different type of filling auger meets requirements of different powder fluidity
Single chip system control the whole process, high automation degree
Can adjust the filling dosage without stopping the machine
Touch panel control can set the filling dosage without stopping the machine
Speed controlled by inverter
Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm
Auto counting function
2 heads filling, 2 heads stoppering
CE certified, standard electric installation, safety guarantee on operation
Auto stop filling when filling auger touches filling nozzle and alarms
Easy to change the change part, filling dosage adjustable
Optional acrylic glass hood, laminar flow, sealed air outlet device
The whole machine is designed according to GMP requirements
3. Technical Parameters:
Suitable bottle range |
7~250ml tubular or molded vial |
Power supply |
220V 50Hz |
Power consumption |
1kw |
Filling error |
≤2% |
Auto stoppering ratio |
99.5% |
Speed control |
Speed control by inverter |
Single machine noise |
≤70dB |
Vacuum degree |
-6×10-2Mpa 14m3/h |
Weight |
400kg |
Dimension |
1680×1000 ×1750(mm) |
4.Factory shows:
5. Other filling machines:
6. Product samples:
7.Our customers:
8. Certificates:
