DZH-100 automatic eyedropper cartoning machine with carton sealing machine
- 10 Unit / Units per Month
- Shanghai port China(Mainland)
- T/T Credit Card
You May Like
-
DZH-120 automatic bottle cartoning machine, bottle packing machine
-
BTCP-297A A4 Copy paper ream packing machine, cellophane wrapping machine
-
ZH100 Cartoning machine, carton box packing/sealing/printing machine
-
ZHJ Series Intermittent (vertical) Automatic Cartoning Machine
-
ZHJ-200B Series Continuous (horizontal) Automatic Cartoning Machine
-
Adjustable BT-110 Small Cellophane Film Overwrapping Machine
Product Details
Condition | New | Application | Chemical, Commodity, Food, Medical, Other, Chemical, Commodity, Food, Medical, packaging machine | |
Packaging Type | Bottles, Capsule, Cartons, Case, Film | Packaging Material | Paper | |
Automatic Grade | Automatic | Driven Type | Electric | |
Voltage | 380V | Power | 1.60kw | |
Place of Origin | Shanghai, China | Brand Name | PF | |
Model Number | DZH-100 | Dimension(L*W*H) | 2900*1050*1700mm | |
Weight | 1300kg | Certification | CE ISO | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

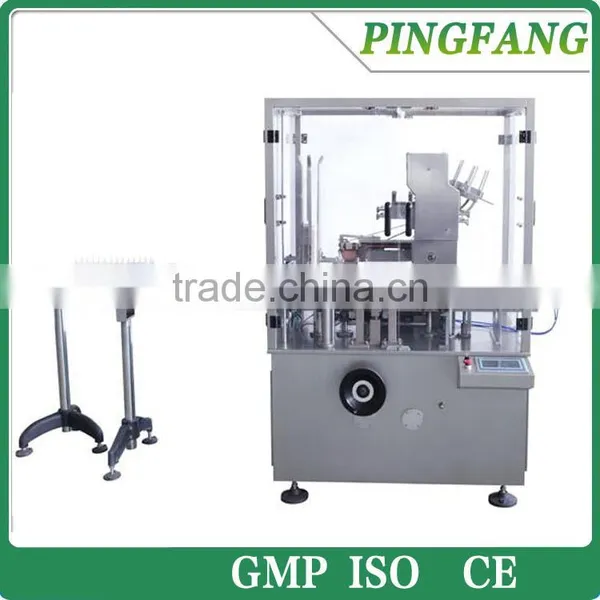

DZH-100 automatic eyedropper cartoning machine with carton sealing machine
I. Introduction:
This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for automatic feeding bottle(round,square bottle)into carton (either for blister or bottle). On line bottle unscramble and feeding,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
II. Features:
1:International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2:Adopt human-machine operation system.
3:Automatically stop when machine is overload.
4:Automatically reject lacking of package product and leaflet.
5:Automatically display trouble, Alarm and count finished products.
6:Stable performance,operation is easy.
III. Technical Parameter:
Item | Parameters | |
Encasing speed | 50-80boxes /min | |
Box | Quality requirement | 250-350g/m²[Base on carton size] |
Dimension range(L×W×H) | ((65-150)mm×(35-120)mm×(12-55)mm | |
Leafle | Quality requirement | 60-70g/m² |
Unfolded leaflet specification | (80-230mm×(90-170mm | |
Fold range | [1-4]Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 200-240L/min | |
Power supply | 380v 50HZ | |
Main motor power | 1.60kw | |
Machine dimension(L×W×H) | 2900mm×1050mm×1700mm |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
Our Customers:
Our Certificates:
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
