Kamoer micro aquarium pump
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | KAMOER | Model Number | KVP04 | |
| Theory | Other, DIAPHRAGM PUMP | Structure | Diaphragm Pump | |
| Usage | Other, Liquid and Gas Transfer | Power | Other, Rotation of Motor | |
| Standard or Nonstandard | Standard | Fuel | Other, Electric | |
| Pressure | Other, Low Pressure, Low | Application | Other, Transfer |
Product Description
Specifications
Kamoer micro aquarium pump1. positive displacement pumps
2.powered by the rotation of motor
3.with ISO9001 dosing pump
Kamoer micro aquarium pump
Application Fields
| Microplate washer | Gas massage products |
| Lab equipment | Beauty equipment |
| Air sampler | Chemistry analysis |
| Autoclave | Vacuum transfer |
| Electrolyte | Automatic tourniquet |
| Gas detection devices | Sewage disposal |
| Blood pressure monitor | Wide-Format printer |
| Patient monitoring | Bio-Chemical analyzer |
Features
| Low Noise Level (Low Decibel) | Corrosion Resistant |
| Compact Structure | Can Withstand No-load Running |
| Brushless DC motor | Long Lifetime |
The product is mini DC diaphragm air pump with brushless motor. It is designed based on the
positive displacement pumps.
It is powered by the rotation of motor. The eccentric vane drives the rubber inside to reciprocate,
forming absorbing and discharging force to pump air.
2.Major parameters
Pump types | Air pump | |
motor | DC brushless motor | |
model | KVP 04-1.3-12 | KVP 04-1.3-24 |
Nominal voltage | 12V | 24V |
current | 320mA | 170mA |
flow rate | 1.3L/min | |
highest pressure | 0.9bar | |
vacuum degree | -0.4bar | |
material | EPDM/NBR:high tightness | |
noise | Less than 50 decibels | |
product quality | 40g | |
temperature | 5~50°C | |
relative humidity | 0~90%RH | |
Life span | More than 3000h | |

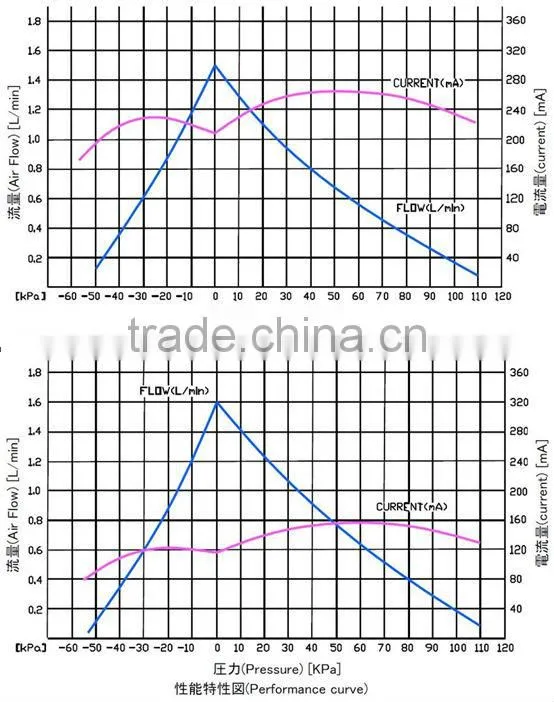

3.Curves of product charactristics
4.Motor introduction
A) Motor circuit protection
Citcuit protection begins to work when one of the following happens
1.Current reaches 1A
2.Motor temperature reaches 165± 15°C
B) Wiring
Sequence number | Color | Usage |
1 | black | Wired to negtive electrode |
2 | red | Wired to positive electrode |
3 | yellow | Output signal wire |
4 | white | PMW adjustable flow rate |
5 | green |
