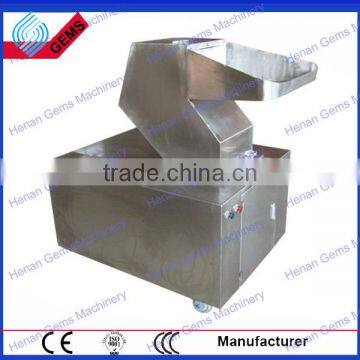

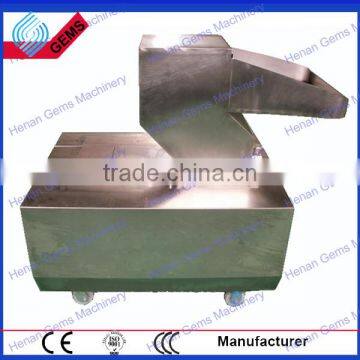

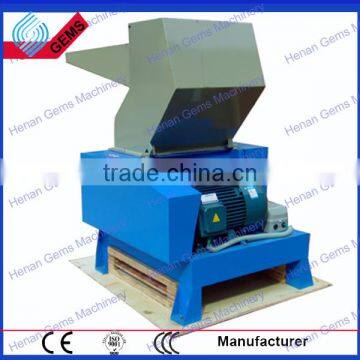

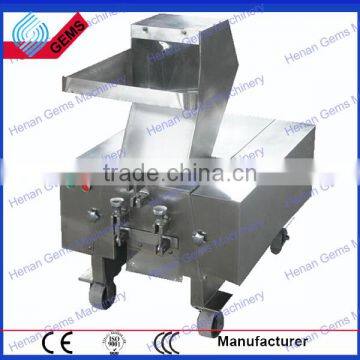

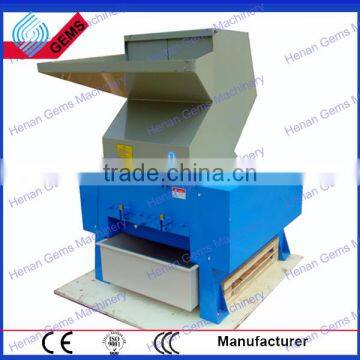

meat and bone cutting machine
Machine Introduction:
1. For this bone cutting machine, we have two types: stainless steel type and ordianry type, you can choose the one you prefer.
2. This machine is suitable for dry, fresh cow bone, sheep bone, chicken bone and other animals' bone. The broken range can be 5-80mm.
3. The hopper is sound-proof, good acoustics.
4. The knives are made of special heat treatment, superior wear resistance, long service.
Spare Parts:
1. Belts
2. Knives
Technical Parameters:
| Model | Capacity | Power | Inlet Dia. | Weight | Dimension |
| GMS-PG120 | 20-60kg/h | 2.2kw | 150*200mm | 130kg | 450*720*900mm |
| GMS-PG230 | 50-100kg/h | 4kw | 250*210mm | 290kg | 1000*700*1060mm |
| GMS-PG300 | 100-200kg/h | 5.5kw | 300*210mm | 435kg | 1200*820*1160mm |
| GMS-PG400 | 150-400kg/h | 7.5kw | 380*250mm | 500kg | 1080*820*1330mm |
| GMS-PG500 | 300-600kg/h | 11kw | 500*250mm | 900kg | 1150*1000*1450mm |
| GMS-PG600 | 400-900kg/h | 15kw | 600*320mm | 970kg | 1700*1480*1760mm |
| GMS-PG800 | 800-2200kg/h | 22kw | 800*650mm | 2000kg | 1600*2100*2620mm |

Two different models:
Large Capacity model (it is about 400kg/h)
Work process of bone cutting machine:
Spare Parts:
1. Usually, we use the wooden package. If you have any special demands, please tell us and we will try our best to meet your demands.
2. After your deposit, we will arrange the delivery within 7 workdays.
Our test before shipping:
Pre-sale Service:
1) Confirm the voltage in your region, we will customized it as your demands for free.
2) Confirm the nearest port to your location and provide delivery cost for your reference.
3) Take real pictures or video of the goods, send them to you to confirm.
4) Any techincal questions about our machines, our engineer team will solve it within one day.
After-sale Service:
1) Make one English instructions in time for your reference.
2) We provide 1 year warranty. During this period, we will provide the spare parts at factory price or for free. If there is something wrong with the quality, we promise change one for you for free.
3) For large production line, we can send enginners to help you install.
4) Any questions, you can email or call us anytime, we will solve it immediately.
All in all, we promise we are responsible for every client, we sincerely hope our long term cooperation in the further!
