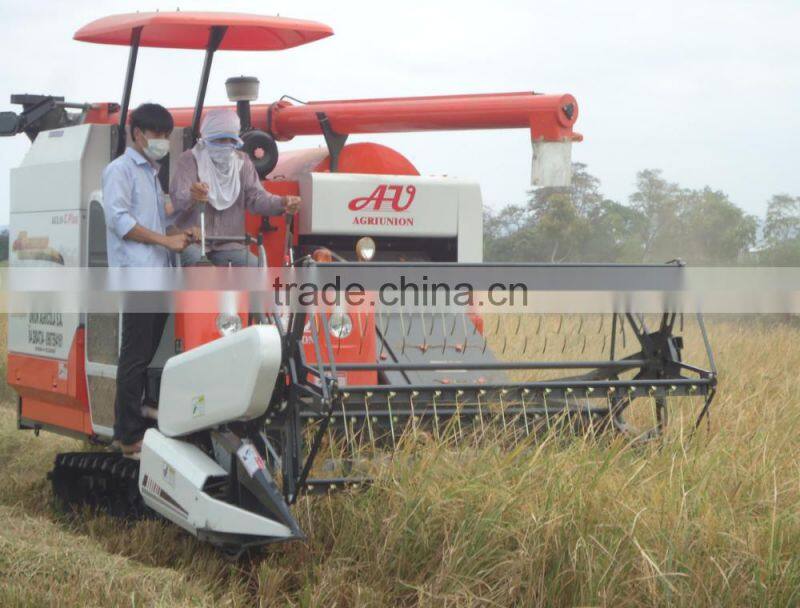

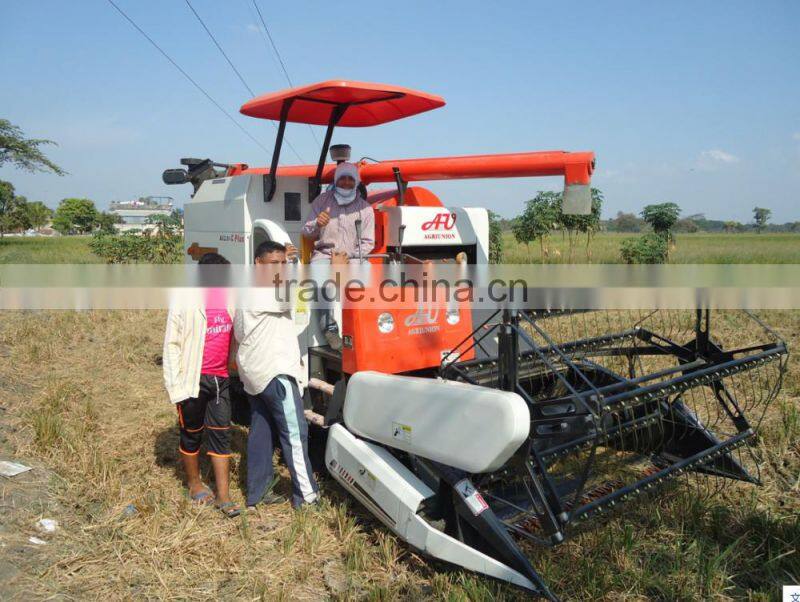

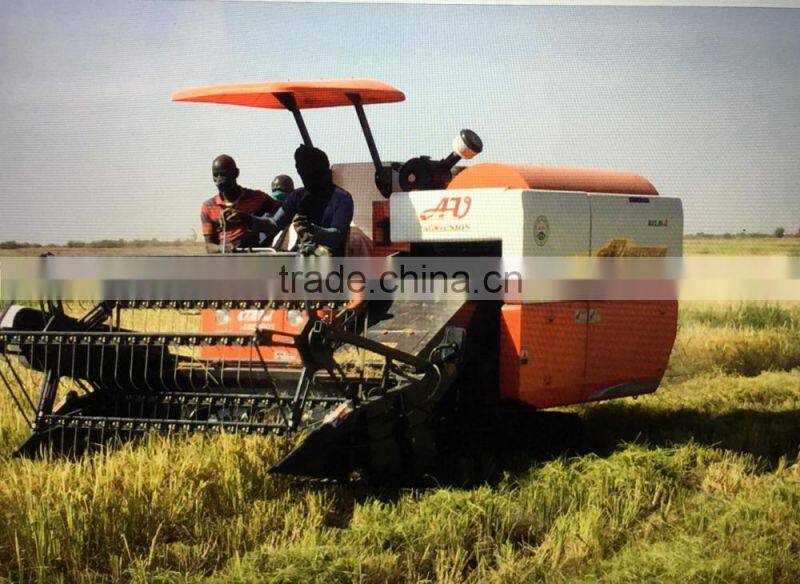

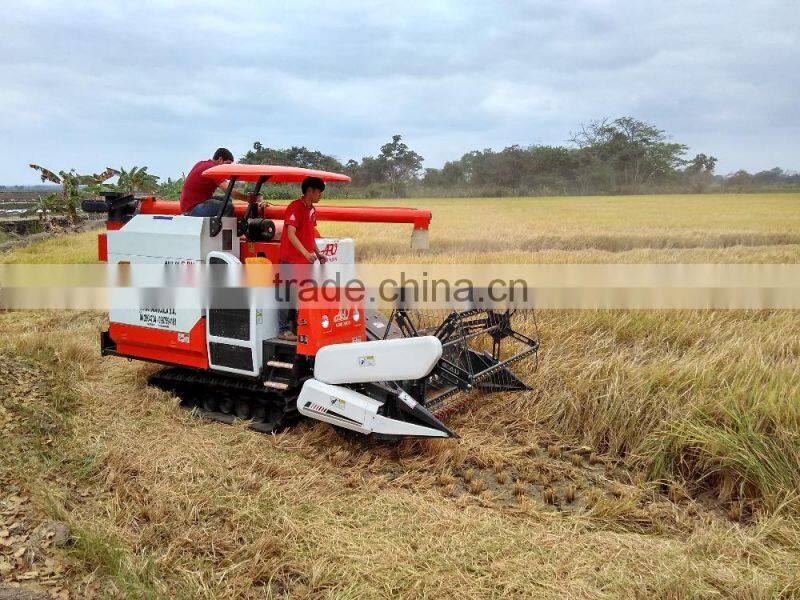

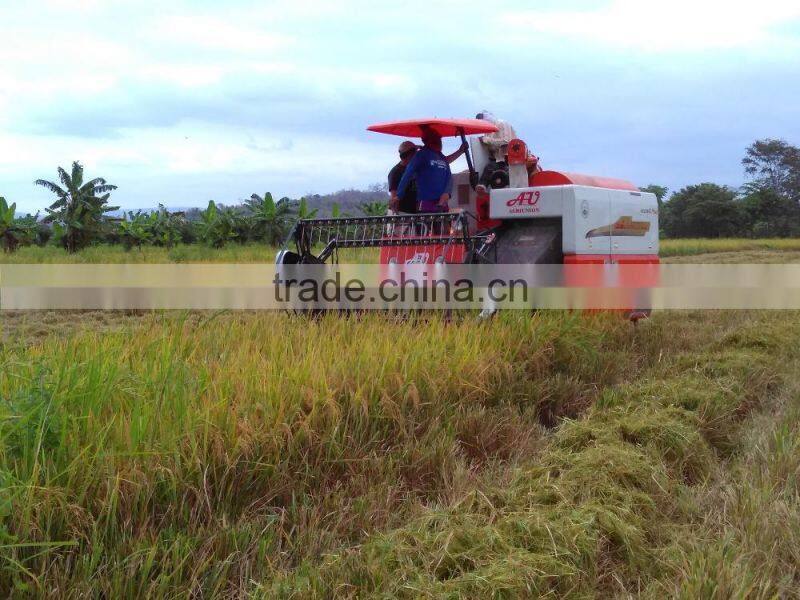

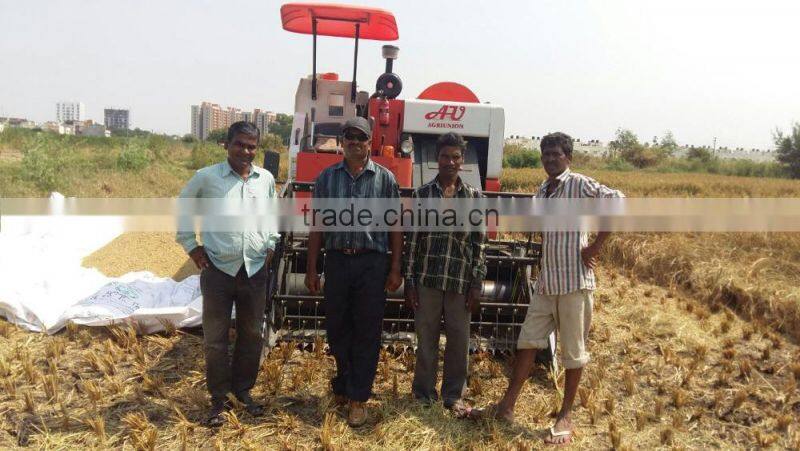

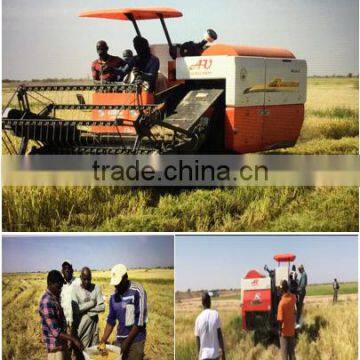

The 6th generation of vertical axial flow combine harvesters
New Brand New Life
The 6th generation of vertical axial flow combine harvesters is a new series combine harvester crawler should threshing drum arranged longitudinally named, there is a one-time machine harvesting, threshing, cleaning, bagging and other functions. An efficient, clean, little is known loss. Access to users praise

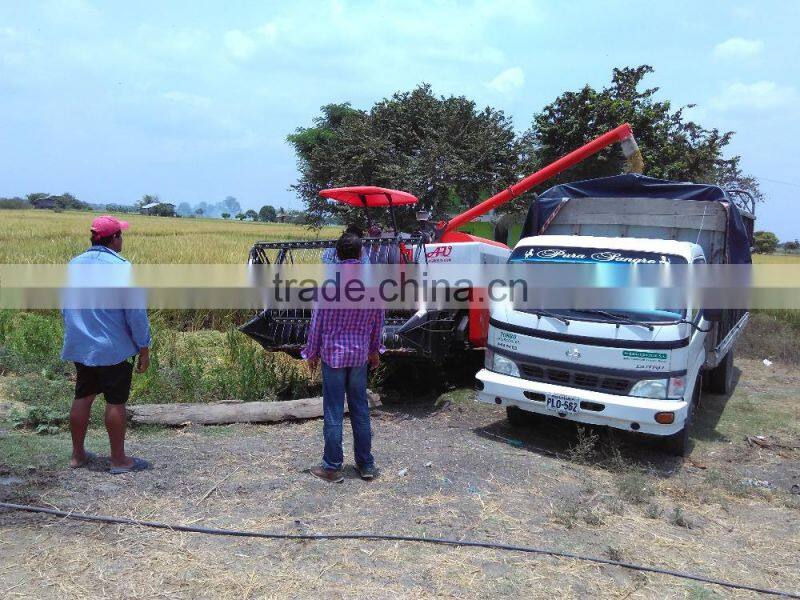

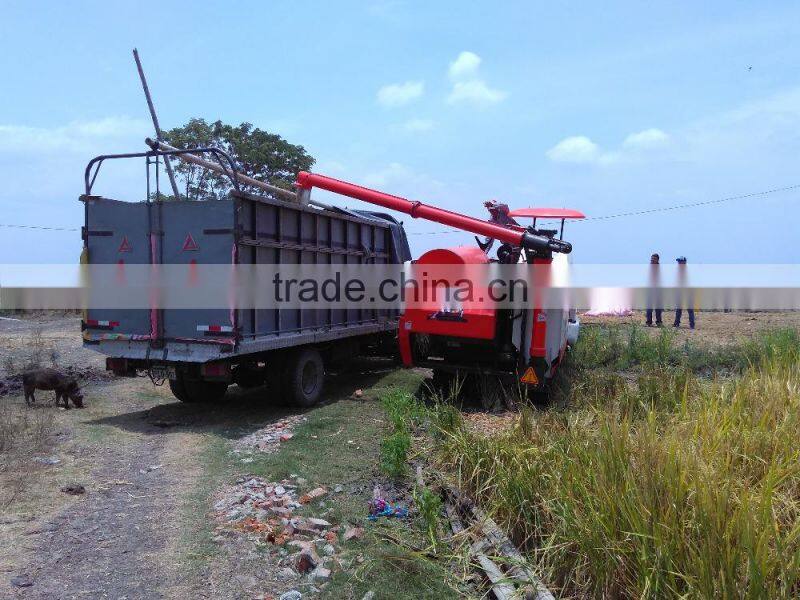

With 320 Degree unloading system
More efficient:
Turbocharged engine, horsepower, fuel consumption is small, sufficient power reserve, harvesting easier.
The new reel, easy wrapped grass, strong harvest lodging capacity.
Widened delivery box, crop transportation more smooth.
On the screen using the adjustable vibrating screen + fan + complex modular cleaning off the device, how much cleaner, cleaning ability to fully upgrade
With 320 Degree unloading system
More reliable:
Threshing using 6th generation technology, more thorough threshing
The new "eight" to strengthen the chassis, carrying capacity, through better performance. Heightening line chassis, silt through strong field.
Machine with solid shaft, life is strong.
1000L with large barn, effectively saving operations and improve efficiency.
With 320 Degree unloading system
| Model | AU2.0I-C PLUS | ||||||
| Type | ‘I’style=longitudinal flow, full-feeding, rubbertrack, self-propelled | ||||||
| Working dimension L×W×H | 4950×2450×2860 mm | ||||||
| Weight (empty tank) | 3080kg | ||||||
| Ground clearance (under axle house) | 280mm | ||||||
| Harvesting capacity (as per rice and wheat) | 0.23-0.85ha/hour | ||||||
| Feed rate | 3.0kg/second | ||||||
| Engine | Model | 4L88 | |||||
| Type | In-line, water cooling, four circles, supercharged, Electric EGR | ||||||
| Burning chamber type | Direct-injection | ||||||
| Cylinder | Dry type, 4cylinders, Diameter=95mm, work sequence:1-3-4-2 | ||||||
| Power | 52-63Kw(70-85Hp)/2600RPM | ||||||
| Piston | Stroke 100mm, Swept volume 2.834L | ||||||
| Exhaust smoke FSN | ≤2.0 | ||||||
| Wast gas exhaust | European II | ||||||
| Lubrication | Pressure & Splash | ||||||
| Mini. fuel oil consumption | ≤220g/kw.h | ||||||
| Fuel tank | 90L | ||||||
| Rubber track | Specification | Width 400mm×Pitch 90mm× Pitch qty 50 (Optional: 400×90×50) | |||||
| Track gauge | External 1555mm, Interal: 755mm | ||||||
| Ground contact length | 1650mm | ||||||
| Ground Pressure | ≤0.25(0.201 kgf/cm2 | ||||||
| Walking gearbox | Type | Mechanical+HST==>stepless transmission | |||||
| Gear | Main gear: forward+reverse; Auxiliary gear: low, harvesting, high | ||||||
| Braking type | wet friction plate | ||||||
| Walking speed | Forward | Low gear:0-1.43m/s, Harvesting gear: 0-1.87m/s, High gear: 0-2.65m/s | |||||
| Reverse | |||||||
| Steering type | Hydraulic, brake+clutch change | ||||||
| HST | Liyuan or Yanmar 28L (adopt 37L for 450rubber track machine) | ||||||
| Reel | Type | Tine bars + Eccentric bar frames | |||||
| Diameter | Φ900mm | ||||||
| Bar quantity | 5 | ||||||
| Control type | Hydraulic | ||||||
| Cutter table | Control type | Hydraulic | |||||
| Cutting width | 2meters | ||||||
| Diameter of head auger | Φ500mm | ||||||
| Coneyor type | Chains | ||||||
| Threshing unit | Main drum dimension | Φ555×1800mm | |||||
| Main drum type | I' style= longitudinal flow | ||||||
| Drum quanity | 1 main thresher+ 1auxiliary reshresher | ||||||
| Concave | 2 Steel grids | ||||||
| Sieve | Shaking sieve, adjustable | ||||||
| Cleaning type | Shaking sieve + blowers + re-threshing | ||||||
| Blower diameter | Φ350mm | ||||||
