DRAWELL BRAND Good Quality Water Filter

DRAWELL BRAND Good Quality Water Filter thumbnail-1
DRAWELL BRAND Good Quality Water Filter photo-1
US$ 4,500 - 4,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Radiation Sterilization Equipments
Brand Name:
DRAWELL
Model Number:
smart series
Contact Supplier Request Quote Chat Now
Shanghai Drawell Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Radiation Sterilization Equipments
Brand Name DRAWELL
Model Number smart series
Place of Origin Shanghai, China

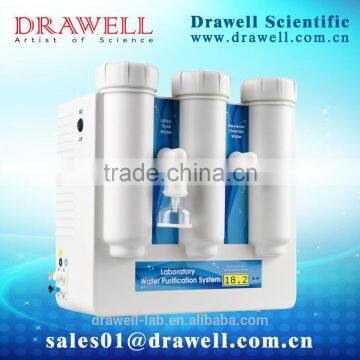

Smart series water purification system















Features and functions



  • One time injection molding process case, material: Polypropylene PP.
  • Elegant and compact case, integrating pre-filter, RO, DI, UV, UF and terminal filter into one.
  • All filters are built-in, the smallest outside space.
  • Top cap of pre-filters in the case can be rapidly opened to replace the pre-filters without opening the case.
  • With electronic pressure sensor and microcomputer controlling, the system automatically produces pure water.
  • RO membrane auto flushing,
  • Automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours’ work.
  • On-line resistivity monitor, with apheliotropic LCD display, monitor deionized water or ultrapure water’s quality real-timely.
  • Attached portable TDS (total dissolved solid, ppm) test pen, with dry cell design, to monitor tap water and RO water’s quality.
  • Pipeline with NSF authorization to assure high quality ultrapure water.
  • New easy-inserting adaptor to make convenience of cartridge maintaining and replacing.
  • Different tanks to meet every needs and assure ample water-supply.
  • RO membrane, manufactured by DOW or CSM, to assure RO membrane’s long time and high quality of pure water.
  • 4 ultrapure polishing resin cartridge with DOW’s polishing resin, to assure the top-level water quality of ultrapure water.
  • Double wavelength(185&254 nm)UV lamp cartridge, to achieve effective sterilization and reduce TOC index.
  • 5000 Doulton ultra-filtration cartridge, Manufactured in Germany, to eliminate endotoxin. Suitable for Cell cultivating and IVF.
  • (0.45+0.1)µm PES terminal filter, to assure the quality absolutely axenic.







Smart series products



  • RO lab/RO DI series reverse osmosis/deionized water system (Tap water inlet)
  • Ultra series ultra pure water system (Tap water inlet)
  • Research series ultra pure water system (pure water inlet)



Specification

RO system

RO deionized system

Model

RO lab

RO lab plus

RO DI/RO DI digital

RO DI plus/RO DI digital plus

Flow procedure

PF+AC+RO+AC

PF+AC+RO+AC

PF+AC+RO+DI

PF+AC+RO+DI

Application

Ware washing, Agricultural expe, General biological expe, Aquatic products feeding, Inlet water for Ultra pure water machine, Inlet water for sterilizer/T&H chamber

Buffer disposing, Physical and chemical analysis, Fine chemistry industry, GC/HPLC, Inlet water for Ultra pure water machine, Aseptic drinking water

Feed water requirement

Tap water: TDS<200ppm,5-45℃,1.0-4.0Kgf/cm2

(if inlet TDS>200ppm, extra pretreatment is recommended)

Purification  system

Pretreatment unit

Special spun fiber filter×1+Special active carbon block filter×1+Special active carbon block filter×1

RO unit

100GPD RO membrane×1

100GPD RO membrane×2

100GPD RO membrane×1

100GPD RO membrane×2

Subsequent unit

Post active carbon filter×1

Mixed bed resin cartridge×2

Mixed bed resin cartridge×3

Pure water

quality

Desalination rate%

>95%

>95%

TDS

5-10 ppm*

RO water:5-10 ppm*

Resistivity

-

15-18.2MΩ.cm

Conductivity

-

0.067-0.055µs/cm

Output(25℃)

15 liters/hour*

30 liters/hour*

15 liters/hour*

30 liters/hour*

Flow rate

2 liters/min(with pressure tank)

Pure water outlet

RO water

RO water, deionized water

Control system

Automatic electronic pressure sensor controlling, RO membrane auto flushing, automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours’ work.

Water quality monitor

TDS test pen

TDS test pen +on-line resistivity monitor

Electric requirements

AC110-220V,50/60Hz, 48W plus model:72W

Dimension and weight

Length×Width×Height:41×22×42cm / 12-14kg

Standard configuration

Main body(including:1 set cartridge)+4.0 gallon water tank + TDS pen + accessory box



  • RO lab/RO DI series reverse osmosis/deionized water system (Tap water inlet)
  • Feed water :TDS=200ppm, 25℃, 50psi and 15% recovery rate.
  • GPD=gallon per day. 1gallon=3.78L.
  • The quality of feed water will influence outlet water quality and cartridge’s life.
  • PF: Pretreatment, AC: Active carbon, RO: Reverse osmosis, DI: Deionization.

Specification

Standard

Eliminating endotoxin

Low TOC

Comprehensive

Model

Ultra pure

Ultra pure UF

Ultra pure UV

Ultra pure UVF

Ultra pure plus

Ultra pure plus UF

Ultra pure plus UV

Ultra pure plus UVF

Flow procedure

PF+AC+RO+DI+TF

PF+AC+RO+DI+UF+TF

PF+AC+RO+UV+DI+TF

PF+AC+RO+UV+DI+UF+TF

Application

Microanalysis Environmental analysis

AA,ICP,IC

Buffer disposing

Pharmacy research

Medicine examining,

Molecular biology

PCR, gene research

Pharmacy research

Medicine examining,

Cell cultivating

IVF etc.

Micro organic analysis

Environmental analysis

HPLC,TOC

VOC,GC/MS

Pharmacy research

Medicine examining,

Molecular biology

Micro organic analysis

Environmental analysis

Pharmacy research

Medicine examining

Cell cultivating, IVF etc.

Feed water requirement

Tap water: TDS<200ppm,5-45℃,1.0-4.0Kgf/cm2

(if inlet TDS>200ppm, extra pretreatment is recommended)

Purification system

Pretreatment unit

Special spun fiber filter (“plus UF/UV/UVF” model: outside 10" spun fiber filter)×1+Special active carbon block filter×1+Special active carbon block filter×1

RO unit

100GPD RO membrane×1 (“plus” model:2×100GPD RO membrane)

Subsequent unit

Ultrapure polishing resin cartridge× 4+(0.45+0.1)μm terminal filer×1

UV model:+Double wavelength(185&254)nm UV lamp cartridge×1

UF model:+5000 Doulton UF cartridge×1

UVF model:+Double wavelength(185&254)nm UV lamp cartridge×1+5000 Doulton UF cartridge×1

Ultrapure water quality

Resistivity

18.2MΩ.cm@25℃

Heavy metal ions

<0.1ppb

TOC

<10 ppb

<5 ppb

Endotoxin

-

<0.001EU/ml

-

<0.001EU/ml

particle(>0.22μm)

<1/ml

Bacteria

< 1cfu/ml

RO water quality

< TDS(ppm, mg/l) of tap water×5%

Output(25℃)

15 liters/hour* (“plus” model:30 liters/hour*)

Flow rate

2 liters/min(with pressure tank)(Less output with UF/UV cartridge)

Pure water outlet

RO water ,ultrapure water

Control system

Automatic electronic pressure sensor controlling, RO membrane auto flushing, automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours’ work.

Water quality monitor

TDS test pen+ on-line resistivity monitor

Electric requirements

AC110-220V,50/60Hz, 48W/plus model:72W

Dimension and weight

Length×Width×Height:41×22×42cm / 12-14 kg

Standard configuration

Main body(including:1 set cartridge)+4.0 gallon water tank + TDS pen + accessory box
