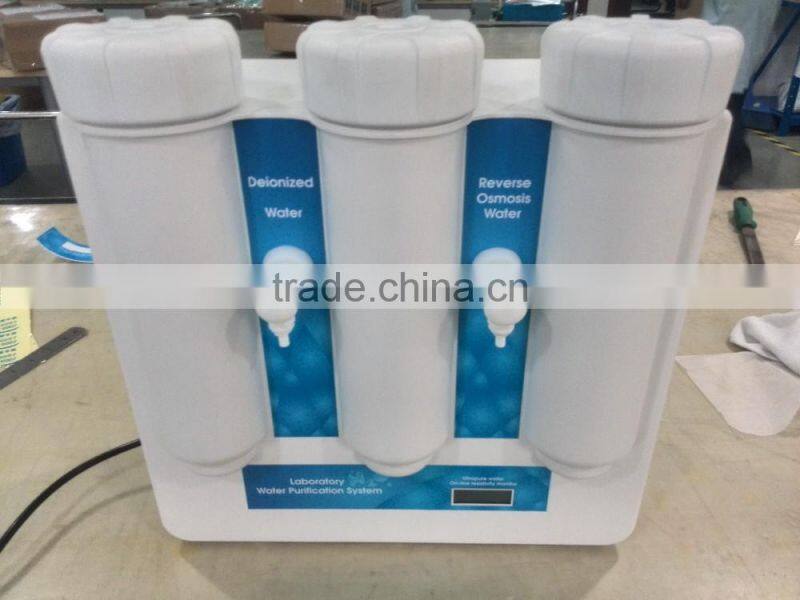

Help CenterSmart RO DI/RO DI Digital Series Water Purification Machine With Deionized Water System,2016 New
Related Products
-
Laboratory Water Purifier With Water Reverse Osmosis,2016 NewUS$ 700 - 2,000MOQ: 1 Piece -
MODEL Ultra Pure UV Water Deionization With Ultra Pure Water System,2016 NewUS$ 2,000 - 4,000MOQ: 1 Piece
-
Smart RO Lab Series Water Purification Machine With Water Reverse Osmosis,2016 NewUS$ 600 - 800MOQ: 1 Piece
-
MODEL Ultra Pure Pluss Water Distillation With Ultra Pure Water System,2016 NewUS$ 2,000 - 4,000MOQ: 1 Piece
-
MODEL Ultra Pure Plus UF Laboratory Ultra Water Purifier,2016 NewUS$ 3,000 - 5,000MOQ: 1 Piece
Smart series water purification syste
Features and functions:
n One time injection molding process case, material: Polypropylene PP.
n Elegant and compact case, integrating pre-filter, RO, DI, UV, UF and terminal filter into one.
n All filters are built-in, the smallest outside space.
n Top cap of pre-filters in the case can be rapidly opened to replace the pre-filters without opening the case.
n With electronic pressure sensor and microcomputer controlling, the system automatically produces pure water.
n RO membrane auto flushing,
n Automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours’ work.
n On-line resistivity monitor, with apheliotropic LCD display, monitor deionized water or ultrapure water’s qualityreal-timely.
n Attached portable TDS (total dissolved solid, ppm) test pen, with dry cell design, to monitor tap water and RO water’s quality.
n Pipeline with NSF authorization to assure high quality ultrapure water.
n New easy-inserting adaptor to make convenience of cartridge maintaining and replacing.
n Different tanks to meet every needs and assure ample water-supply.
n RO membrane, manufactured by DOW or CSM, to assure RO membrane’s long time and high quality of pure water.
n 4 ultrapure polishing resin cartridge with DOW’s polishing resin, to assure the top-level water quality of ultrapure water.
n Double wavelength(185&254 nm)UV lamp cartridge, to achieve effective sterilization and reduce TOC index.
n 5000 Doulton ultra-filtration cartridge, Manufactured in Germany, to eliminate endotoxin. Suitable for Cell cultivating and IVF.
n (0.45+0.1)µm PES terminal filter, to assure the quality absolutely axenic.
Smart series products
n RO lab/RO DI series reverse osmosis/deionized water system (Tap water inlet)
n Ultra series ultra pure water system (Tap water inlet)
n Research series ultra pure water system (pure water inlet)
n RO lab/RO DI series reverse osmosis/deionized water system (Tap water inlet)
Specification | RO system | RO deionized system | |||
Model | RO lab | RO lab plus | RO DI/RO DI digital | RO DI plus/RO DI digital plus | |
Flow procedure | PF+AC+RO+AC | PF+AC+RO+AC | PF+AC+RO+DI | PF+AC+RO+DI | |
Application | Ware washing, Agricultural expe, General biological expe, Aquatic products feeding, Inlet water for Ultra pure water machine, Inlet water for sterilizer/T&H chamber | Buffer disposing, Physical and chemical analysis, Fine chemistry industry, GC/HPLC, Inlet water for Ultra pure water machine, Aseptic drinking water | |||
Feed water requirement | Tap water: TDS<200ppm,5-45℃,1.0-4.0Kgf/cm2 (if inlet TDS>200ppm, extra pretreatment is recommended) | ||||
Purification system | Pretreatment unit | Special spun fiber filter×1+Special active carbon block filter×1+Special active carbon block filter×1 | |||
RO unit | 100GPD RO membrane×1 | 100GPD RO membrane×2 | 100GPD RO membrane×1 | 100GPD RO membrane×2 | |
Subsequent unit | Post active carbon filter×1 | Mixed bed resin cartridge×2 | Mixed bed resin cartridge×3 | ||
Pure water quality | Desalination rate% | >95% | >95% | ||
TDS | 5-10 ppm* | RO water:5-10 ppm* | |||
Resistivity | - | 15-18.2MΩ.cm | |||
Conductivity | - | 0.067-0.055µs/cm | |||
Output(25℃) | 15 liters/hour* | 30 liters/hour* | 15 liters/hour* | 30 liters/hour* | |
Flow rate | 2 liters/min(with pressure tank) | ||||
Pure water outlet | RO water | RO water, deionized water | |||
Control system | Automatic electronic pressure sensor controlling, RO membrane auto flushing, automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours’ work. | ||||
Water quality monitor | TDS test pen | TDS test pen +on-line resistivity monitor | |||
Electric requirements | AC110-220V,50/60Hz, 48W plus model:72W | ||||
Dimension and weight | Length×Width×Height:41×22×42cm / 12-14kg | ||||
Standard configuration | Main body(including:1 set cartridge)+4.0 gallon water tank + TDS pen + accessory box | ||||
n Feed water :TDS=200ppm, 25℃, 50psi and 15% recovery rate.
n GPD=gallon per day. 1gallon=3.78L.
n The quality of feed water will influence outlet water quality and cartridge’s life.
n PF: Pretreatment, AC: Active carbon, RO: Reverse osmosis, DI: Deionization.
