Home > Products > Water Bath & Drying Bath > CFC-free Refrigeration Technology Waterbath
CFC-free Refrigeration Technology Waterbath
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | DRAWELL | Model Number | DC-0530 | |
| Place of Origin | Shanghai, China |
Product Description

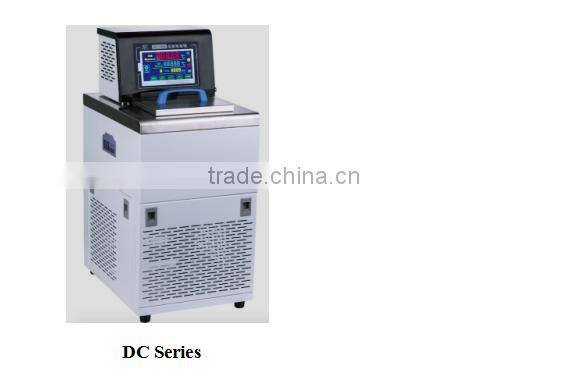

DC Series of Refrigerated Thermostatic Bath and Heating Circulators

Features:
- Using environmentally friendly CFC-free refrigeration technology to meet the requirements of environmental protection.
- Using high-quality full-enclosed air-cooled compressor cooling system, low noise
- Full-enclosed air-cooled compressor cooling system with thermal overload protection automatically
- with a power-off protection function, automatically delayed for three minutes
- using a TFT touch screen, easy to understand working condition
- Intelligent PID automatically adjust control function
- Upper and lower temperature alarm can be set
- with over heat alarm system to ensure the safety apparatus
- Inner high-quality stainless steel material with external circulating pump, can be established the second constant temperature field outside the bath
- Cold liquid can be cited outside the tank, cooling the experimental container outside the bath
- Using analogue theory, automatic identify the difference between set temperature and the ambient temperature, to confirm whether a single heating or cooling heating work simultaneously to achieve the energy saving
Model | Temperature Range (°C) | Tempe rapture Stability (°C) | Display Resolution (mm3) | Tank Size (mm3) | Pump Flow L/ min | Top Opening Dimen (mm2) |
Head of Delivery (M) | Drainage |
SDC-6 | -5~100 | ±0.05 | 0.1 | 260×200×140 | 0-20 | 180×140 |
5 | √ |
DC-1006 | -10~100 | ±0.05 | 0.1 | 260×200×140 | 0-20 | 180×140 |
5 | √ |
DC-2006 | -20~100 | ±0.05 | 0.1 | 260×200×140 | 0-20 | 180×140 |
5 | √ |
DC-3006 | -30~100 | ±0.1 | 0.1 | 260×200×140 | 0-20 | 180×140 |
5 | √ |
DC-4006 | -40~100 | ±0.1 | 0.1 | 260×200×140 | 0-20 | 180×140 |
5 | √ |
DC-0510 | -5~100 | ±0.05 | 0.1 | 260×200×200 | 0-20 | 180×140 |
5 | √ |
DC-1010 | -10~100 | ±0.05 | 0.1 | 260×200×200 | 0-20 | 180×140 |
5 | √ |
DC-2010 | -20~100 | ±0.05 | 0.1 | 260×200×200 | 0-20 | 180×140 |
5 | √ |
DC-3010 | -30~100 | ±0.1 | 0.1 | 260×200×200 | 0-20 | 180×140 |
5 | √ |
DC-4010 | -40~100 | ±0.1 | 0.1 | 260×200×200 | 0-20 | 180×140 |
5 | √ |
DC-0515 | -5~100 | ±0.05 | 0.1 | 300×250×200 | 0-20 | 235×160 |
5 | √ |
DC-1015 | -10~100 | ±0.05 | 0.1 | 300×250×200 | 0-20 | 235×160 |
5 | √ |
DC-2015 | -20~100 | ±0.05 | 0.1 | 300×250×200 | 0-20 | 235×160 |
5 | √ |
DC-3015 | -30~100 | ±0.1 | 0.1 | 300×250×200 | 0-20 | 235×160 |
5 | √ |
DC-4015 | -40~100 | ±0.1 | 0.1 | 300×250×200 | 0-20 | 235×160 |
5 | √ |
DC-0530 | -5~100 | ±0.05 | 0.1 | 440×325×200 | 0-20 | 310×280 |
5 | √ |
DC-1030 | -10~100 | ±0.05 | 0.1 | 440×325×200 | 0-20 | 310×280 |
5 | √ |
DC-2030 | -20~100 | ±0.05 | 0.1 | 440×325×200 | 0-20 | 310×280 |
5 | √ |
DC-3030 | -30~100 | ±0.1 | 0.1 | 440×325×200 | 0-20 | 310×280 |
5 | √ |
DC-1030 | -10~100 | ±0.05 | 0.1 | 440×325×200 | 0-20 | 310×280 |
5 | √ |
DC-2030 | -20~100 | ±0.05 | 0.1 | 440×325×200 | 0-20 | 310×280 |
5 | √ |
DC-3030 | -30~100 | ±0.1 | 0.1 | 440×325×200 | 0-20 | 310×280 |
5 | √ |
DCW-1015 | -10~100 | ±0.05 | 0.1 | 280×250×220 | 0-20 | 235×160 |
5 | √ |
DCW-2008 | -20~100 | ±0.05 | 0.1 | 280×250×140 | 0-20 | 235×160 |
5 | √ |
DCW-3506 | -35~100 | ±0.1 | 0.1 | 260×200×140 | 0-20 | 180×140 |
5 | √ |
DCW-3510 | -35~100 | ±0.1 | 0.1 | 250×200×200 | 0-20 | 180×140 |
5 | √ |
DCW-0506 | -6~100 | ±0.05 | 0.1 | 260×200×140 | 0-20 | 180×140 |
5 | √ |
DCW-4006 | -40~100 | ±0.1 | 0.1 | 260×200×140 | 0-20 | 180×140 |
5 | √ |
