DTN Series ultrasonic cleaning transducer
- 500 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
- FanYingSonic 800ml 35W Ultrasonic Cleaner Digital Timer Wash Gold Sliver Jewelry Watch Glasses Sonic Vibrator Cleaning Machine
- Glasses Ultrasonic Cleaner Jewellery Ultrasonic Cleaning Machine
- Youpin EraClean Ultrasonic Cleaning Machine 45000Hz High Frequency Vibration Wash Cleaner Washing Jewelry Glasses Watch Machine
- Clangsonic Single Tank 85L 28kHz 1500Watts Industrial Ultrasonic Cleaner machine
- Vegetable Fruit Sterilizer and cleaning machine/ozone sterilizing machine
- Professional Submersible Ultrasonic Transducers Immersible Underwater Ultrasonic Transducer Vibrator Plate
Product Details
Certification: | CE, Other, CE, RoHS | Model Number: | DTN Series | Brand Name: | DRAWELL |
Place of Origin: | Shanghai, China |
Product Description

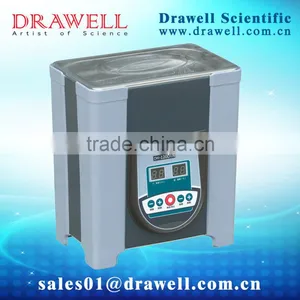

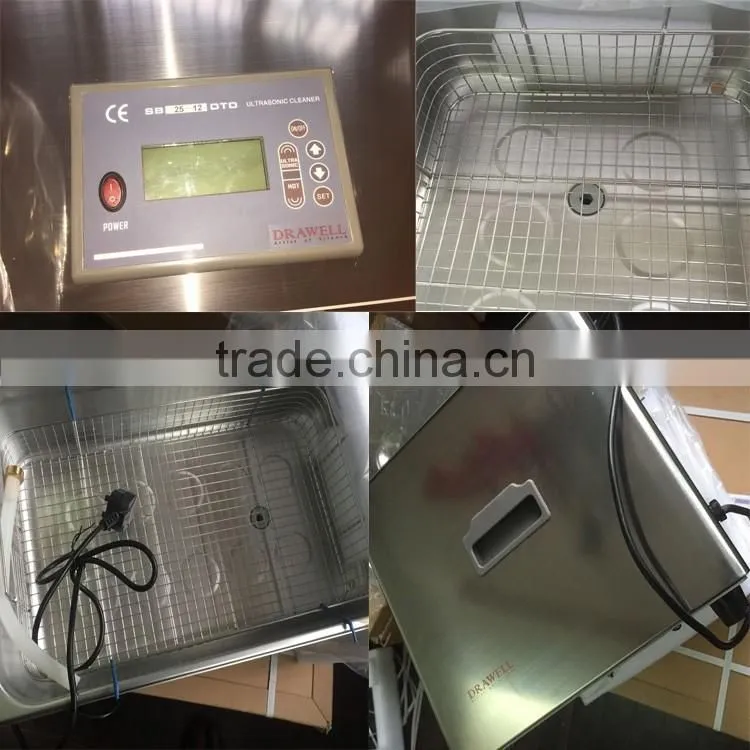

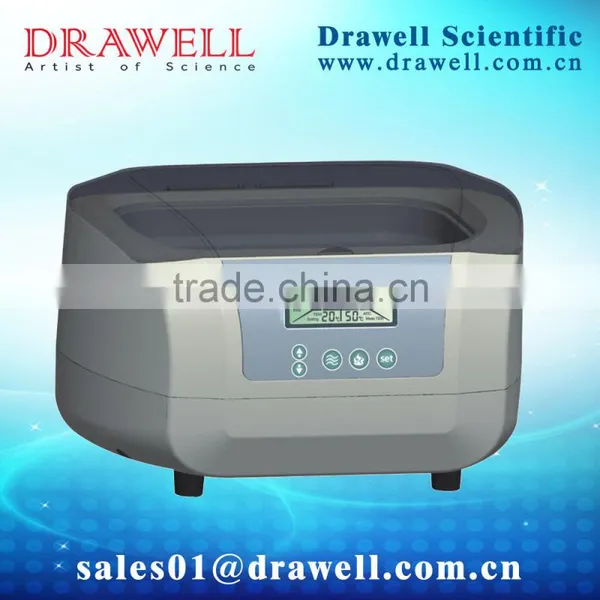

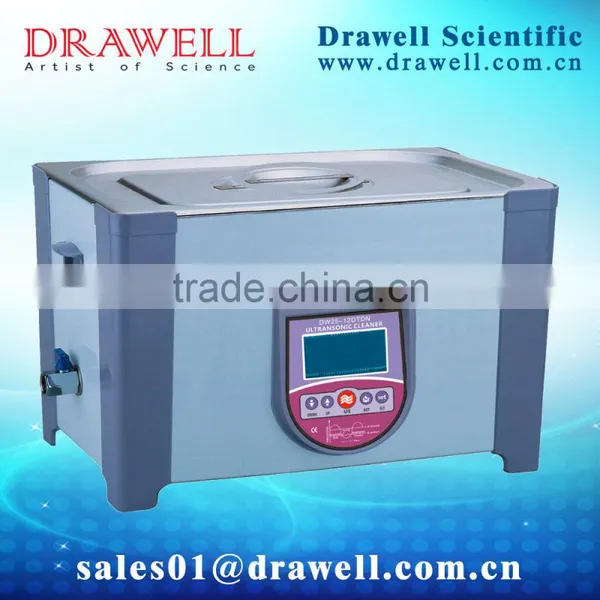

DTN Series Ultrasonic Cleaning Machine

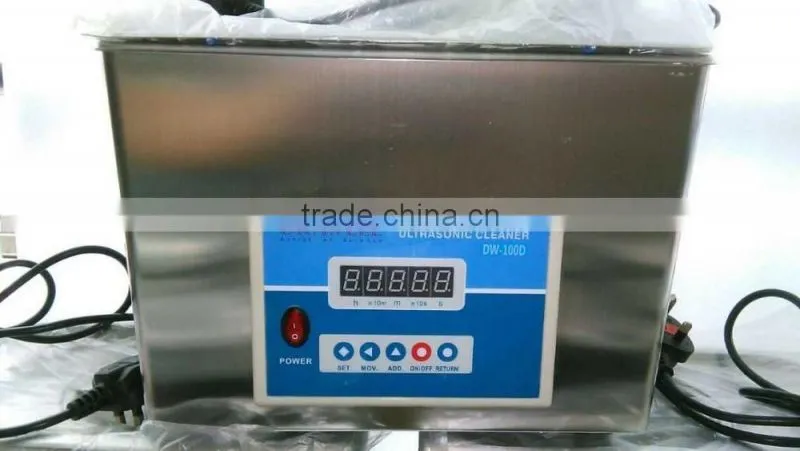

* Digital display and setting ultrasonic cleaning time
* Display woking countdown time
* Display actual temperature of the cleaning tank
* Temperature setting range: Ambient temperature--80 ℃
* Timing range: 1-99 minutes adjustable

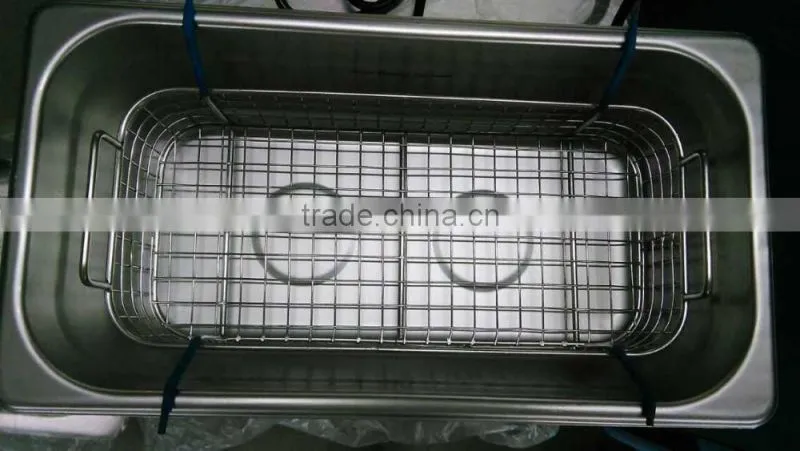

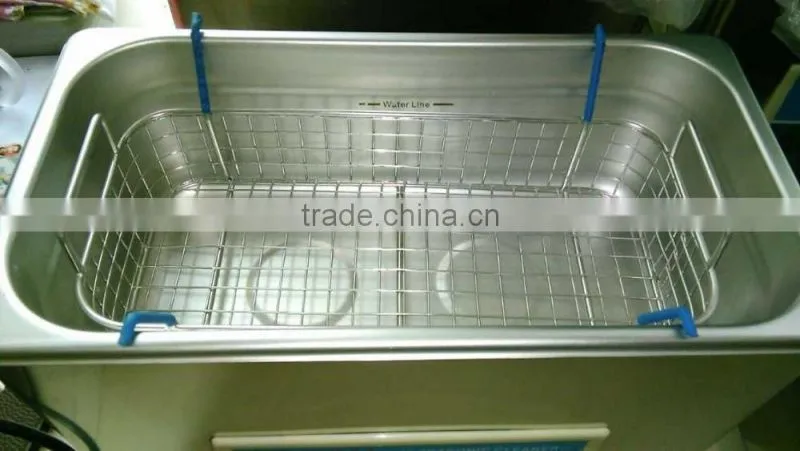

* Equipped with a special stainless steel basket, reduce sound cover
* The shell and cover are made by stainless steel
* The equipment controlled by Single-chip controller
* The lastest working parameters can be stored in memory after power-off
Model | Inner tank | volume | Frequency | Power | Heating power | Adjustable temperature | Adjustable time | Drainage |
L/W/H ( mm) | L | KHz | W | W | ℃ | min |
| |
DW-100DTN | 300×150×100 | 4.5 | 40 | 100 | 120 | Ambient-80 | 1-99 | / |
DW-120DTP | 240×140×100 | 3 | 40 | 120 | 120 | Ambient-80 | 1-99 |
|
DW-120DTN | 240×140×100 | 3 | 40 | 120 | 120 | Ambient-80 | 1-99 | / |
DW-120DTN | 240×140×150 | 5 | 40 | 120 | 120 | Ambient-80 | 1-99 | / |
DW-3200DTN | 300×155×150 | 6 | 40 | 180 | 150 | Ambient-80 | 1-99 | / |
DW-5200DTN | 300×240×150 | 10 | 40 | 200 | 320 | Ambient-80 | 1-99 | √ |
DW-5200DTN | 300×240×150 | 10 | 40 | 250 | 320 | Ambient-80 | 1-99 | √ |
DW-5200DTN | 300×240×150 | 10 | 40 | 300 | 320 | Ambient-80 | 1-99 | √ |
DW-4200DTN | 300×240×200 | 14.4 | 40 | 400 | 320 | Ambient-80 | 1-99 | √ |
DW25-12DTN | 500×300×150 | 22.5 | 40 | 500 | 450 | Ambient-80 | 1-99 | √ |
DW25-12DTN | 500×300×150 | 22.5 | 40 | 600 | 450 | Ambient-80 | 1-99 | √ |
DW-100DT | 300×150×100 | 4.5 | 40 | 100 | 150 | Ambient-80 | 1-99 | / |
DW-120DT | 240×140×100 | 3 | 40 | 120 | 120 | Ambient-80 | 1-99 | / |
DW-120DT | 240×140×150 | 5 | 40 | 120 | 120 | Ambient-80 | 1-99 | / |
DW-3200DT | 300×155×150 | 6 | 40 | 180 | 180 | Ambient-80 | 1-99 | / |
DW-5200DT | 300×240×150 | 10 | 40 | 200 | 320 | Ambient-80 | 1-99 | √ |
DW-5200DT | 300×240×150 | 10 | 40 | 250 | 320 | Ambient-80 | 1-99 | √ |
DW-5200DT | 300×240×150 | 10 | 40 | 300 | 320 | Ambient-80 | 1-99 | √ |
DW-4200DT | 300×240×200 | 14.4 | 40 | 400 | 320 | Ambient-80 | 1-99 | √ |
DW25-12DT | 500×300×150 | 22.5 | 40 | 500 | 600 | Ambient-80 | 1-99 | √ |
DW25-12DT | 500×300×150 | 22.5 | 40 | 600 | 600 | Ambient-80 | 1-99 | √ |
DW-1000DT | 600×300×300 | 54 | 28 | 1000 | 3000 | Ambient-80 | 1-99 | √ |
DW-1200DT | 600×400×300 | 70 | 28 | 1200 | 4000 | Ambient-80 | 1-99 | √ |
DW-1500DT | 600×500×300 | 90 | 28 | 1500 | 4000 | Ambient-80 | 1-99 | √ |
DW-1800DT | 600×600×300 | 108 | 28 | 1800 | 5000 | Ambient-80 | 1-99 | √ |
DW-2000DT | user-defined | 120 | 28 | 2000 | 6000 | Ambient-80 | 1-99 | √ |
DW-3600DT | User-defined | 207 | 28 | 3600 | 8000 | Ambient-80 | 1-99 | / |
