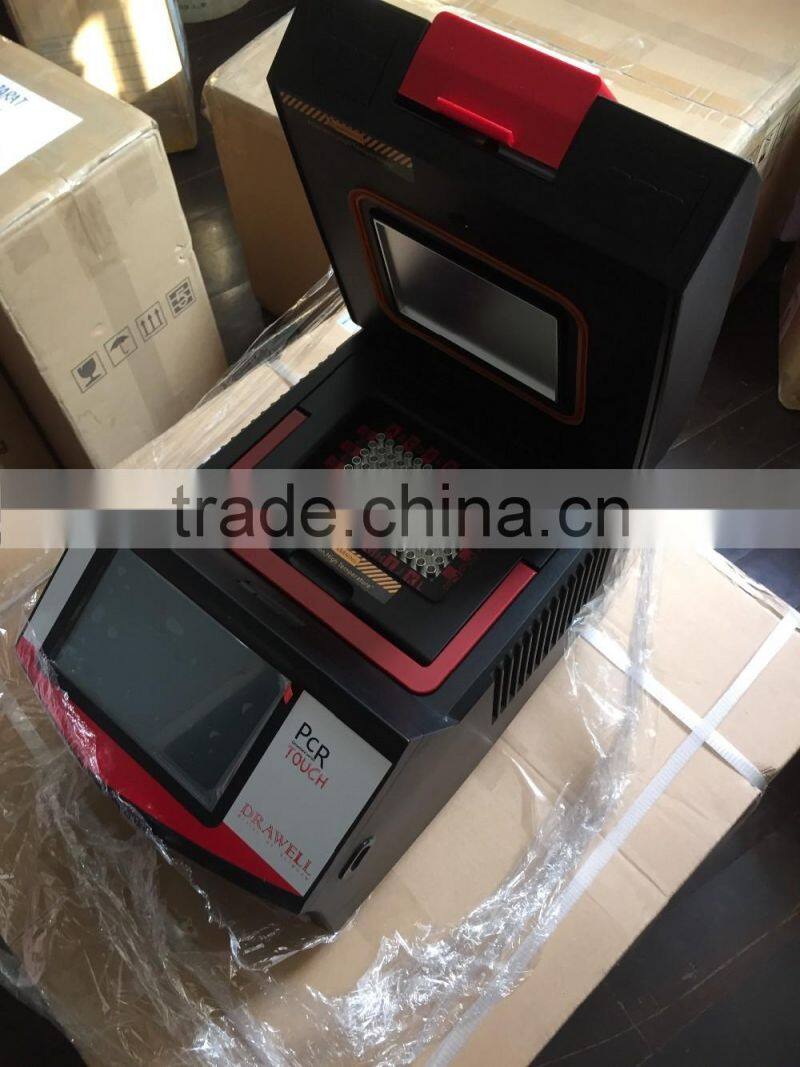

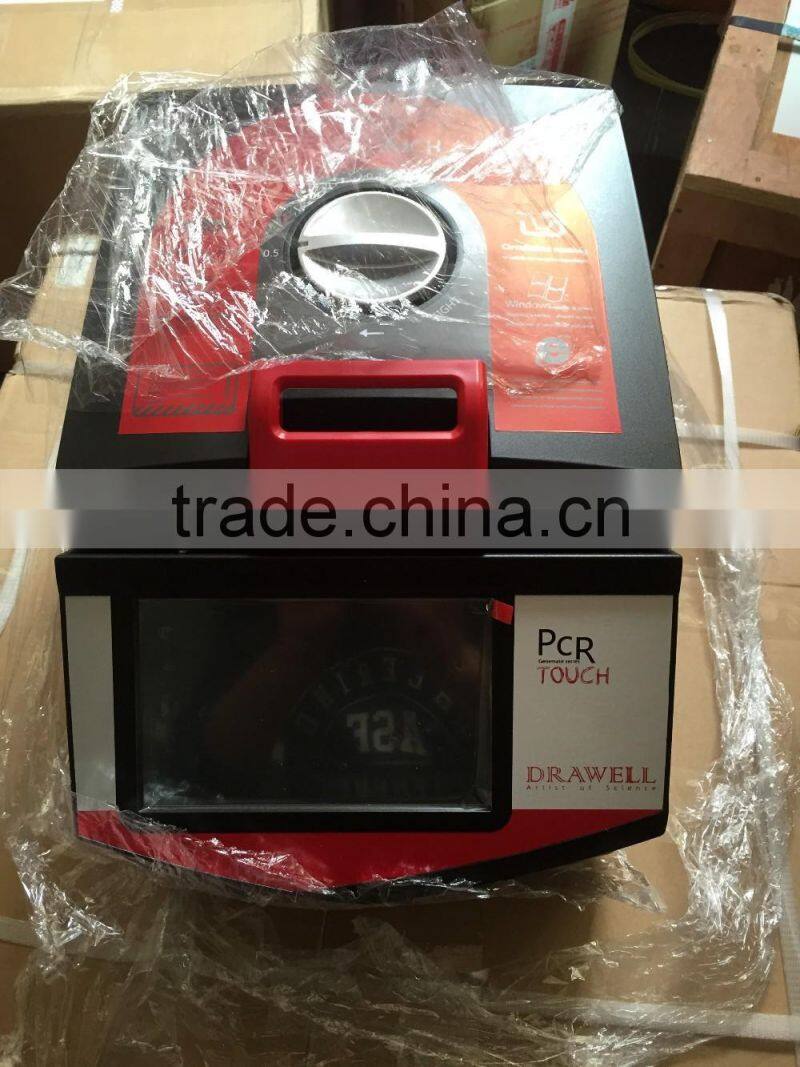

DW-PCR-EI Real Time Quantitative Dual Channel PCR
- Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | DRAWELL | |
| Model Number | DW-PCR-EI | Weight | 30kgs | |
| Measurement Range | 10-100ul |
Product Description
DW-PCR-EI Real-time Quantitative PCR (2 channel)
PCR(Polymerase Chain Reaction) gives you a choice of
quantitative methods for gene expression.
The DW-PCR-EI Real time PCR is very useful and important
for life science research and curative evaluation, and it is
innovative and pioneering products in Lab for the prevention,
diagnosis, evaluation and monitoring of diseases.
Features:
1.Have48 samples positions.
2.Sensitive and precise thermoelectric systems.
3.Various operation modes for use.
4.Power failure protection.
5.Function of intelligent auxiliary baseline selection.
PCR-EI | Single channel | Dual channel |
Sample capacity | 48 positions | |
Temperature range | 4℃-99℃ | |
Heating rate/ Cooling rate | ≥4℃/s(Max) | 3℃/s /2℃/s |
Profiles | 1-9 | |
Cycles | 1-99 | |
Temperature steps | 1-9 | |
Hold time | 1-9999sec | |
Excitation wavelength | 470nm | Channel 1:470-505nm Channel 2:525-545nm |
Emission wavelength | 530/570/605/640/710nm | Channel 1: 523-543nm Channel 2:550-615nm |
Application consumables | Thick-walled 0.2ml PCR tubes,8-strip tubes | |
Reaction volume | 10-100ul | |
Photo detector | PMT(Photomultipier tube) | PMT(Photomultipier tube) |
Correlation coefficient of nucleic acid precision | R≥0.997 | |
Reproducibility | CV≤2.1% | |
Temperature accuracy | ±0.1℃ | |
Temperature uniformity | ±0.3℃ | |
Testing range | 101-1010 DNA/RNA copy/ml | 101-1010 DNA/RNA copy/ml |
System interfaces | RS-232c | |
Power supply | AC 220/110V+10% ,50/60Hz+10% | |
Power | 1100W | |
Operating environment | Ambient Temperature 5℃-40℃,Relative Humidity ≤80% | |
Weight | 25kg | 27kg |
Dimensions(W*D* H) | 550mm*420mm*340 mm | 550mm*420mm*350 mm |
